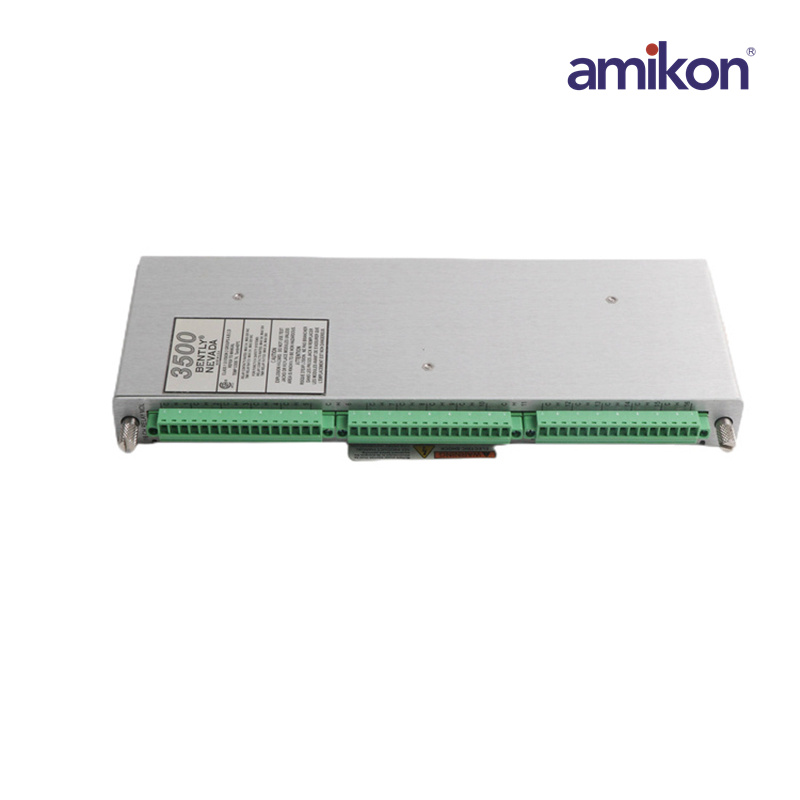

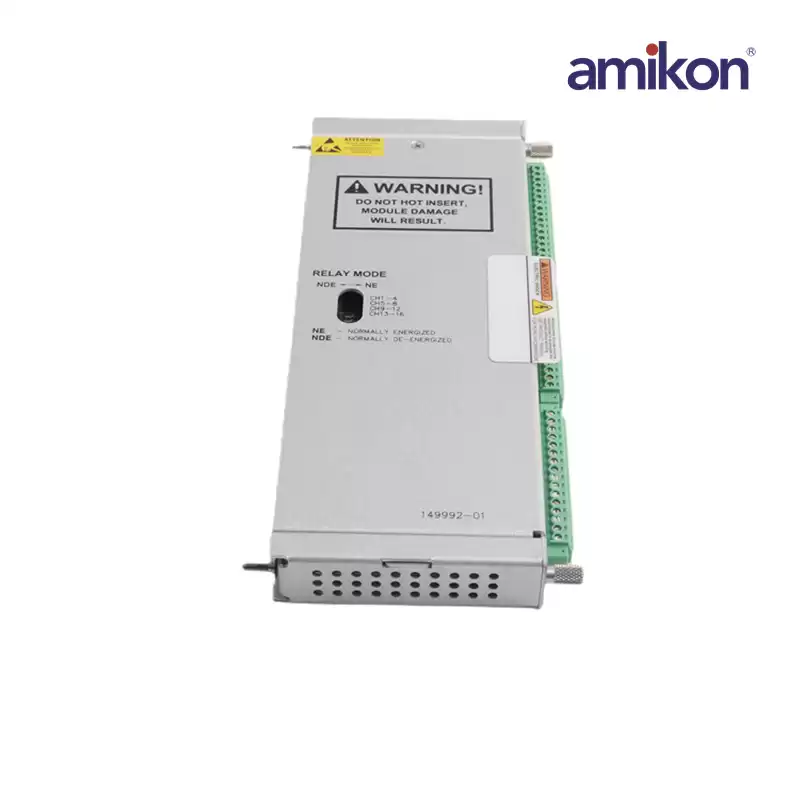

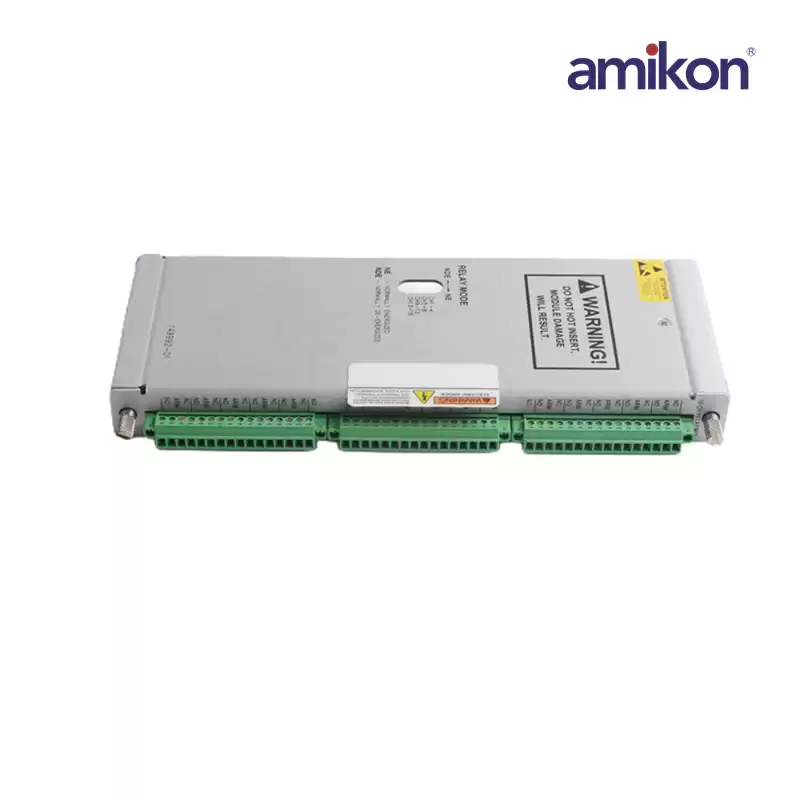

Bently Nevada 149992-01 Spare 16-Channel Relay Output Module
|
|
Dimensions ：
|
2.5x11x24cm
|
Weight：
|
0.52kg
|
|
Storage Temperature ：
|
-40°C to +80°C
|
Operating Temperature：
|
-30°C to +65°C
|
|
Features:
The 149992-01 is Spare 16-Channel Relay Output Module.The 16-Channel Relay Module is a full-height module thatprovides 16 relay outputs. Any number of 16-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 16-Channel Relay Module can be independently programmed to perform needed voting logic.Each relay utilized on the 16-Channel Relay Module includes "Alarm Drive Logic". The Alarm Drive Logic is programmed using AND and OR logic, and can utilize alarming inputs (alerts and dangers), Not-OK, or individualPPLs from any monitor channel or any combination ofmonitor channels in the rack. This Alarm Drive Logic isprogrammed using the 3500 Rack Configuration Softwareto meet the specific needs of the application.
|
