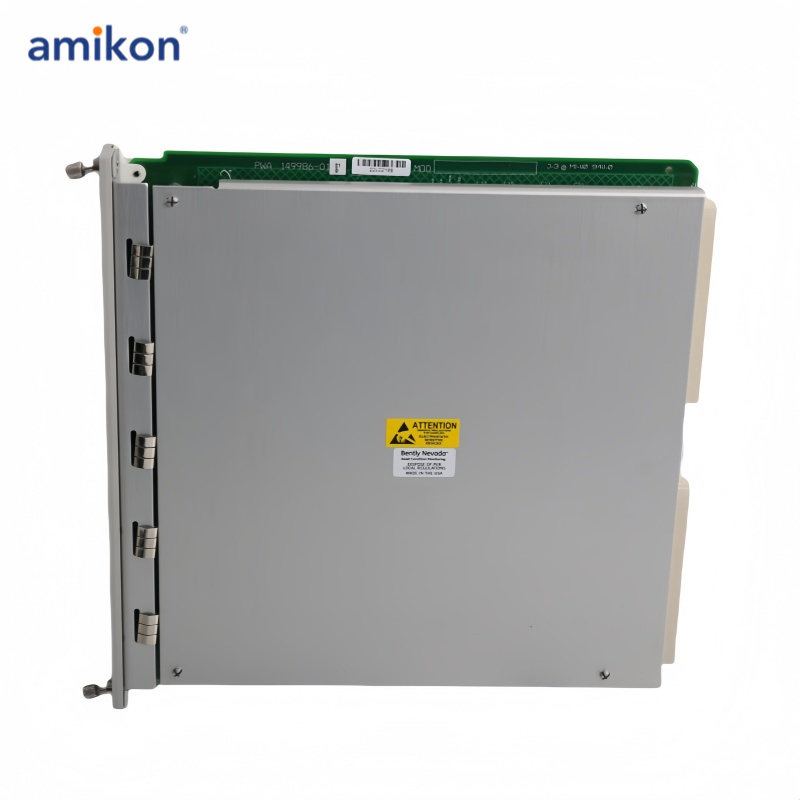

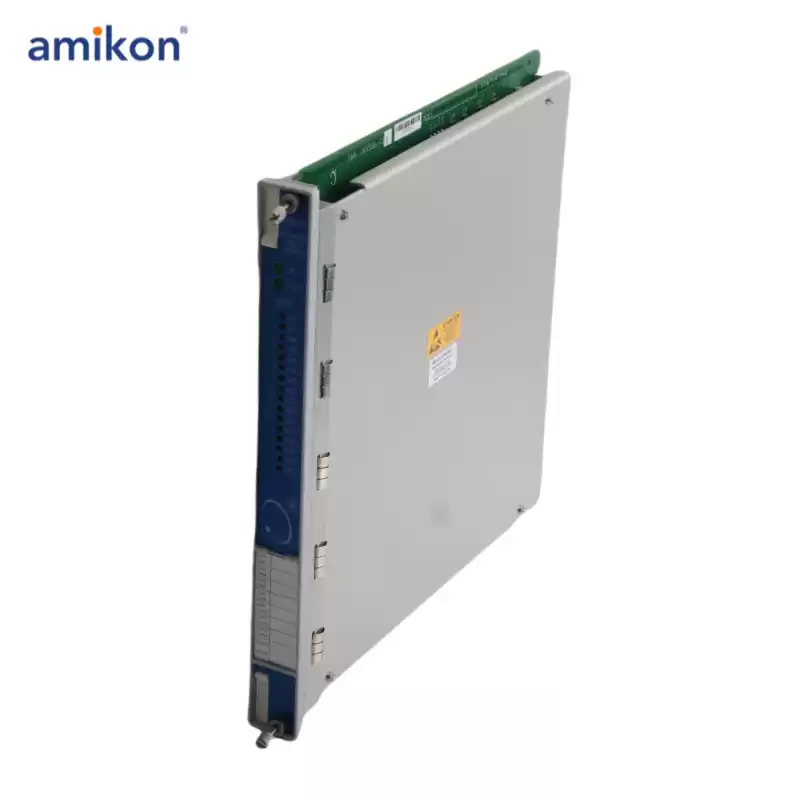

Bently Nevada 16-Channel Relay Module 3500/33 149986-01

Bently Nevada 16-Channel Relay Module 3500/33 149986-01

The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.

Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.

Each relay of the module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic and may use the following:
-Alarming inputs (alert and danger statuses)
-Not-OK
-Individual Measured Variables from any monitor channel or any combination of monitor channels in the rack

You can program the Alarm Drive using the 3500 Rack Configuration Software.

Inputs
Power
Consumption 5.8 watts typical

Outputs

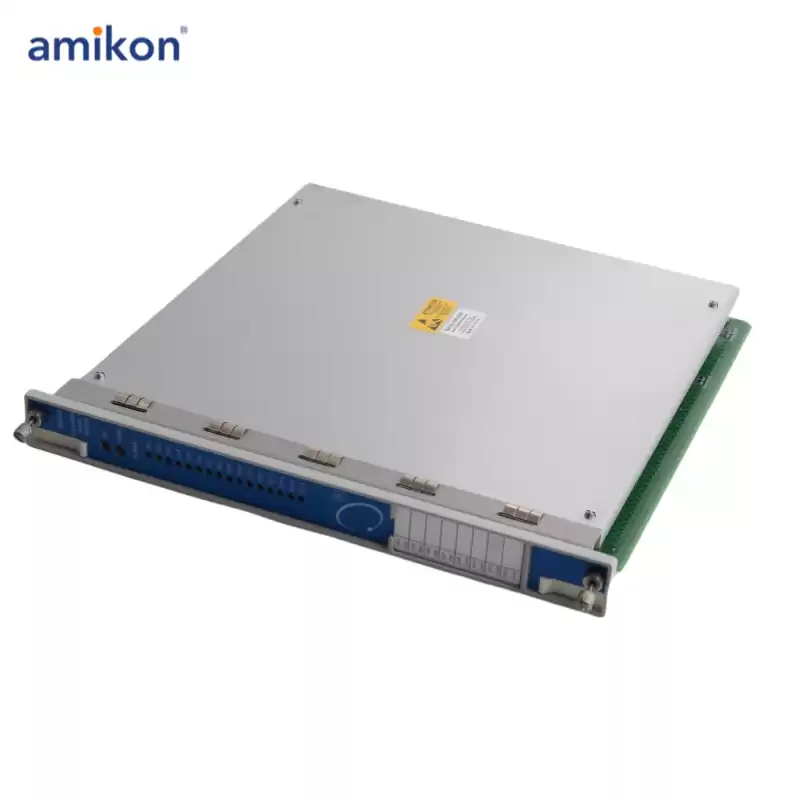

Front Panel LEDs
OK LED: Illuminated when the 3500/33 16-Channel Relay Module is operating properly.
TX/RX LED: Transmit and receive flashes when the 3500/3316-Channel Relay Module is communicating with other modules in the 3500 rack.
CH Alarm LED: Illuminated when Relay channel is in an alarm state.
Relay Type :Single-pole Double-throw (SPDT) Relay Environmental
Sealing: Epoxy-sealed
Relay Arc Suppressor: 250 Vrms Installed as standard
Relay Contact Life: 10,000 cycles
Relay Operation: Four groups of four channels are switch selectable for
Normally De-energized (ND) or Normally Energized (NE) operation.
