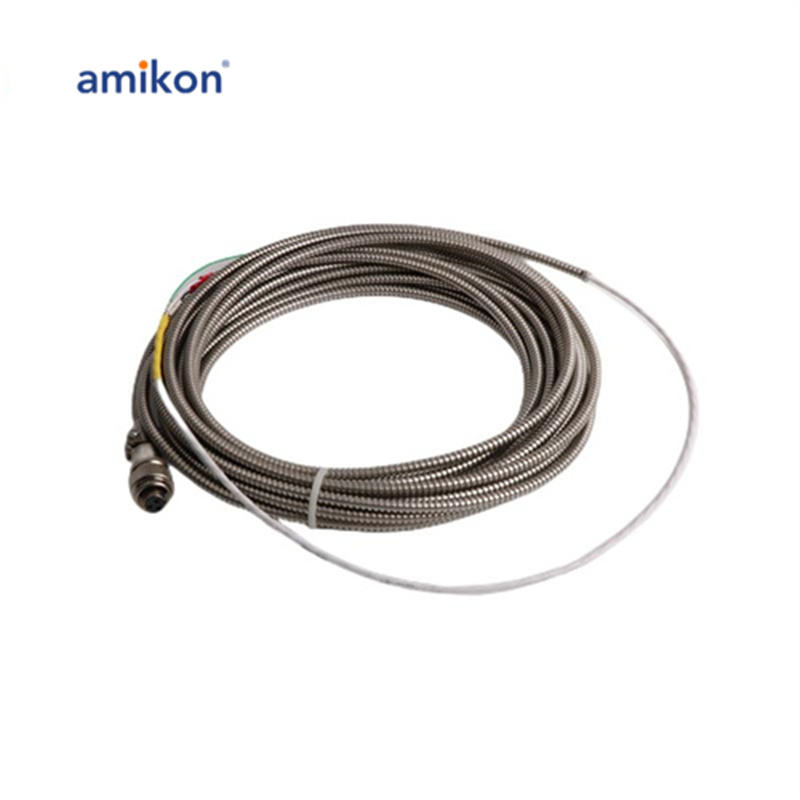

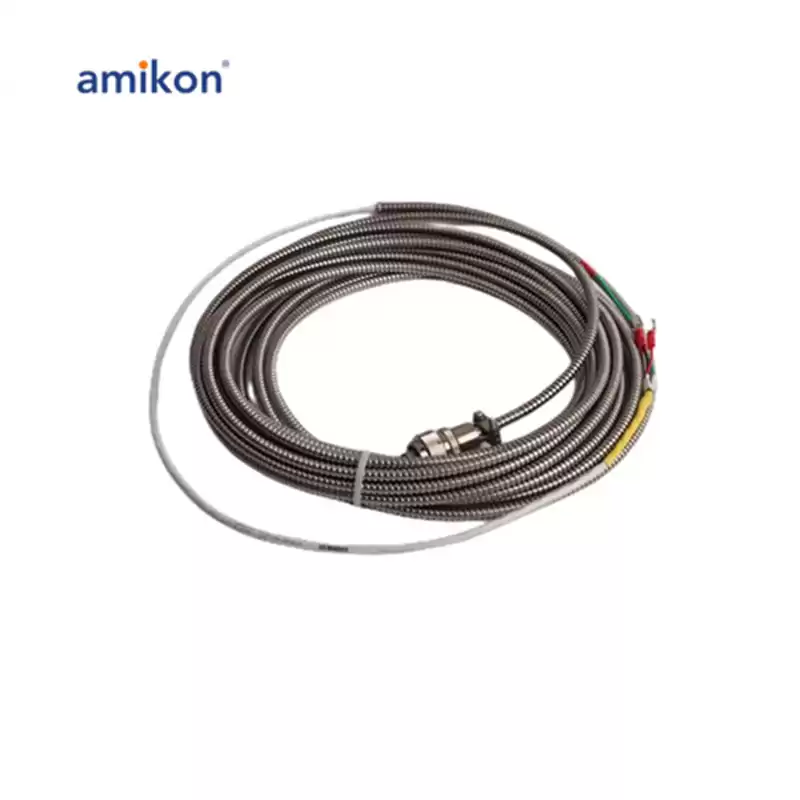

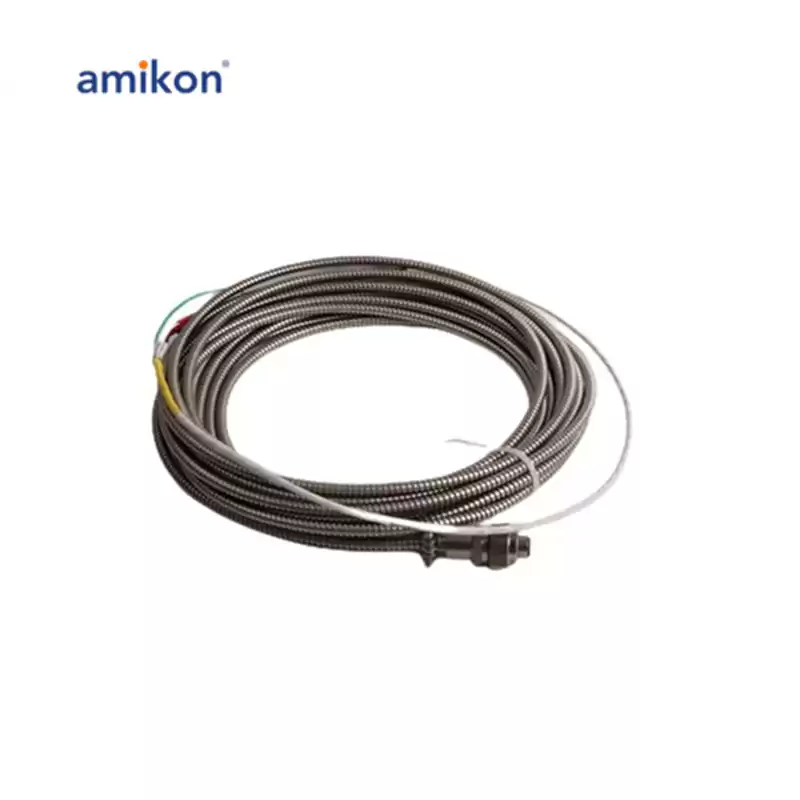

Bently Nevada 16710-33 Interconnect Cable

Brand new and original sealed//Same Day Shipment

  • Dimensions2.5cmx13cmx24.2cm
  • Weight0.44KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
Part Number: 16710-33
Model: Interconnect Cable for 330400 and 330425 Accelerometer
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.

Caution
If housing measurements are being made for overall protection of the machine,thought should be given to the usefulness of the measurement for each application. Most common machine malfunctions (imbalance, misalignment,etc.) originate at the rotor and cause an increase (or at least a change) in rotor vibration. In order for any housing measurement alone to be effective for overall machine protection, a significant amount of rotor vibration must be faithfully transmitted to the bearing housing or machine casing, or more specifically, to the mounting location of the transducer.

In addition, care should be exercised in the physical installation of the transducer. Improper installation can result in a degradation of the transducer’s performance, and/or the generation of signals which do not represent actual machine vibration. Integration of the output to velocity can worsen this.
Extreme caution should be exercised if integrating to velocity. For high quality velocity measurements the 330500 Velomitor* Sensor should be used.

Upon request, we can provide engineering services to determine the appropriateness of housing measurements for the machine in question and/or to provide installation assistance.
