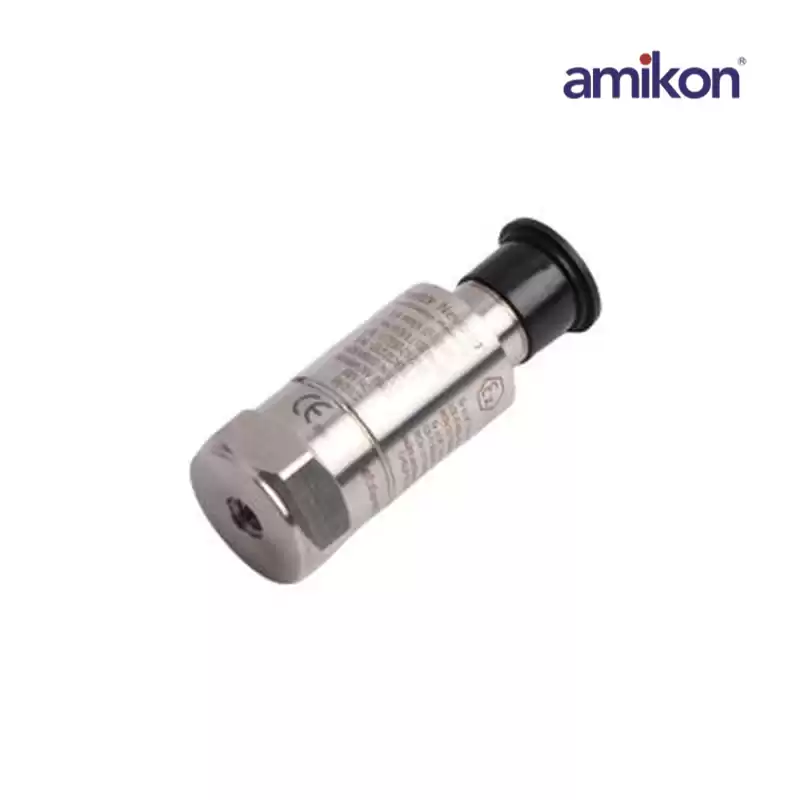

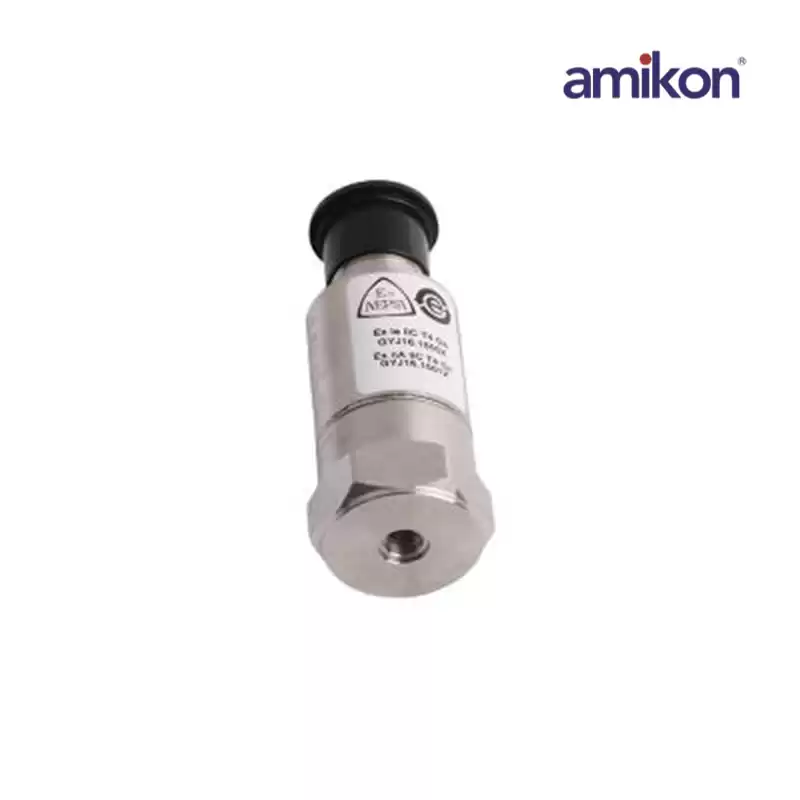

Bently Nevada 177230-01-01-05 Seismic Transmitter
|
|
Dimensions ：
|
7.3cmx5cmx10cm
|
Weight：
|
0.44kg
|
|
Storage Temperature ：
|
-51°C to +110°C
|
Operating Temperature：
|
-35°C to +85°C
|
|
Features:
The 177230-01-01-05 is Seismic Transmitter.The Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a 2-wire, looppowered device that accepts input from our 3300 NSv* proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peak-to-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs1.
|
