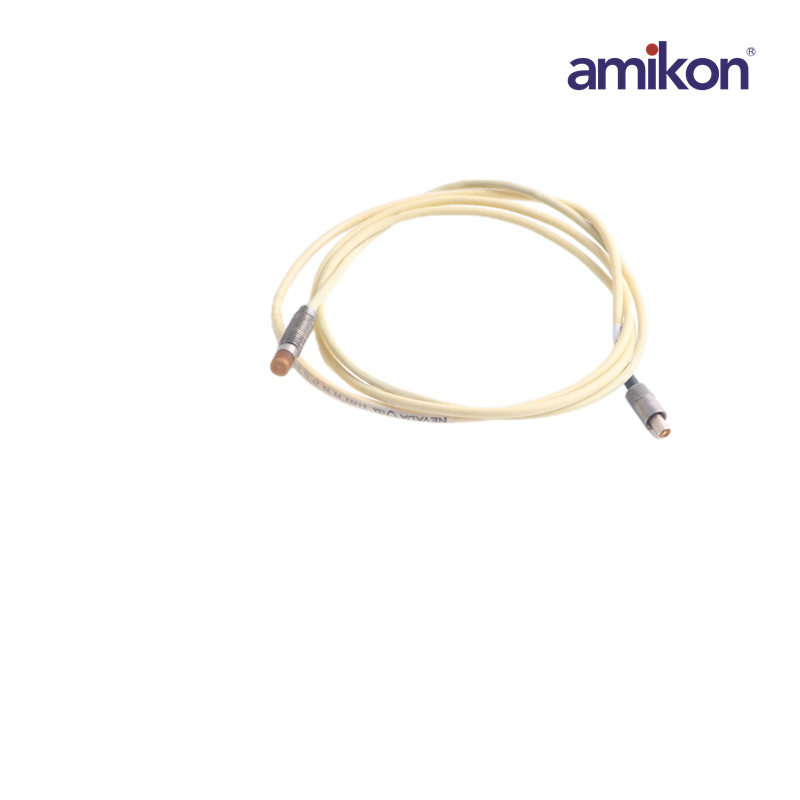

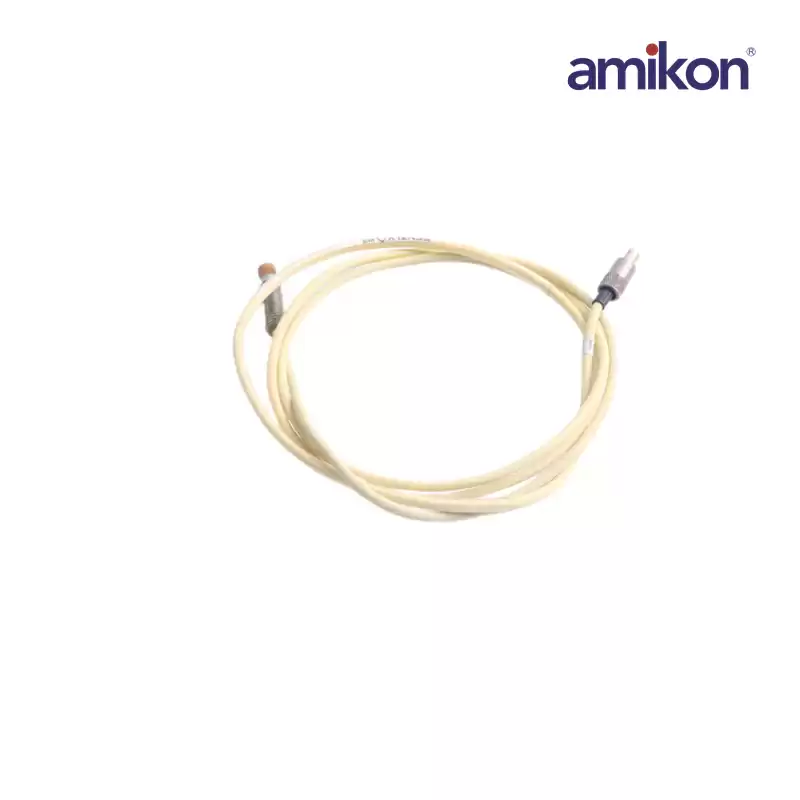

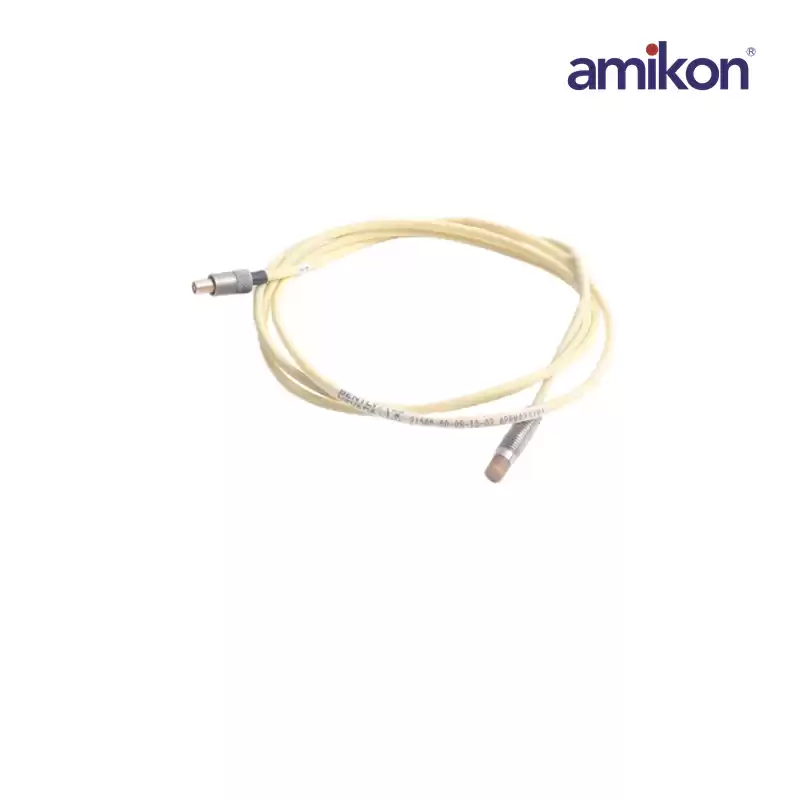

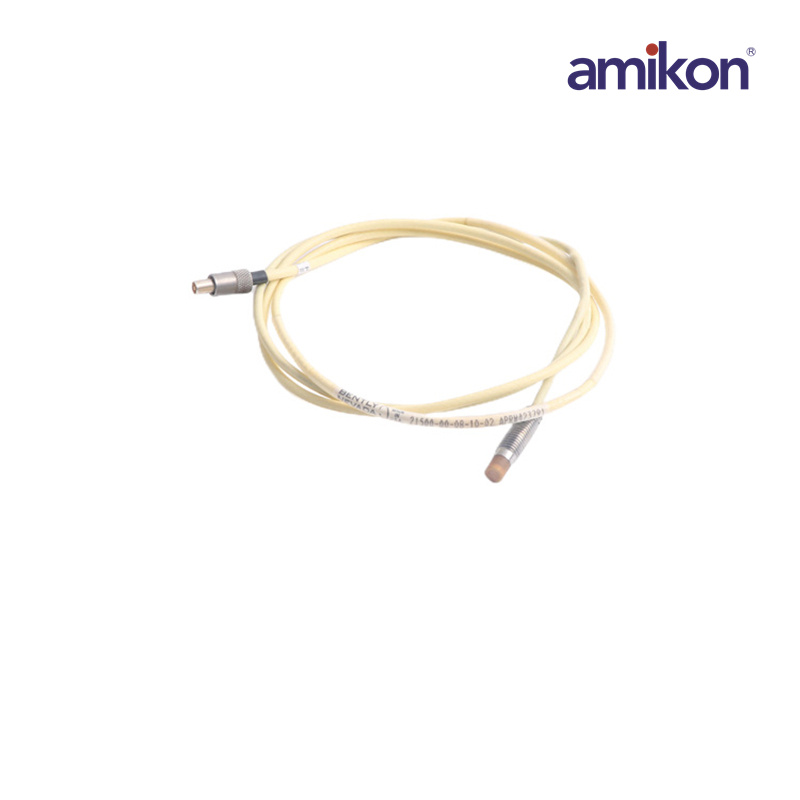

21500-00-08-10-02 Probe Sensor
|
|
Dimensions ：
|
10x10x1.5cm
|
Weight：
|
0.02kg
|
|
Product Type：
|
5mm and 8mm Standard Mount Probe
|
Overall case length option：
|
08 = 0.8 inches
|
|
Unthreaded Length Option ：
|
00 = 0.0 inches
|
Total length option：
|
10 = 1.0 metre. Tolerance : +.25 metre, -.10 metre.
|
|
The 21500-00-08-10-02 is Probe Sensor.The 7200 5mm / 8mm Series Proximity Transducer Systems are noncontacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application in any requirement for an accurate, noncontacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocation machinery. They are designed for use with virtually any machine type including gas and steam turbines, compressors, pumps, centrifuges, electric motors and generators. The system offer 80 mils (2mm) of linear measuring range and are compatible with API 670 requirements.
|
