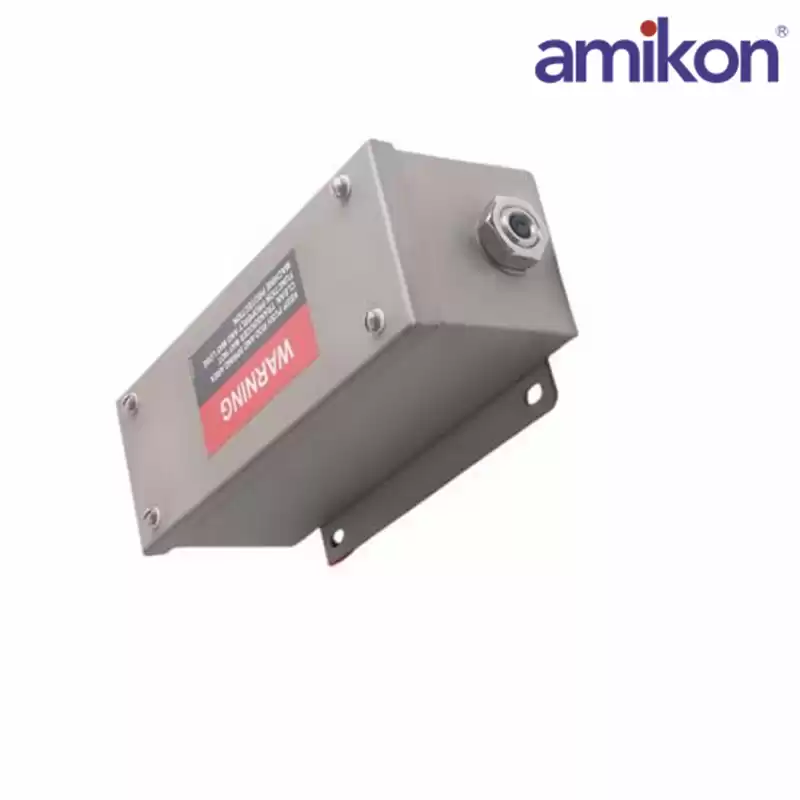

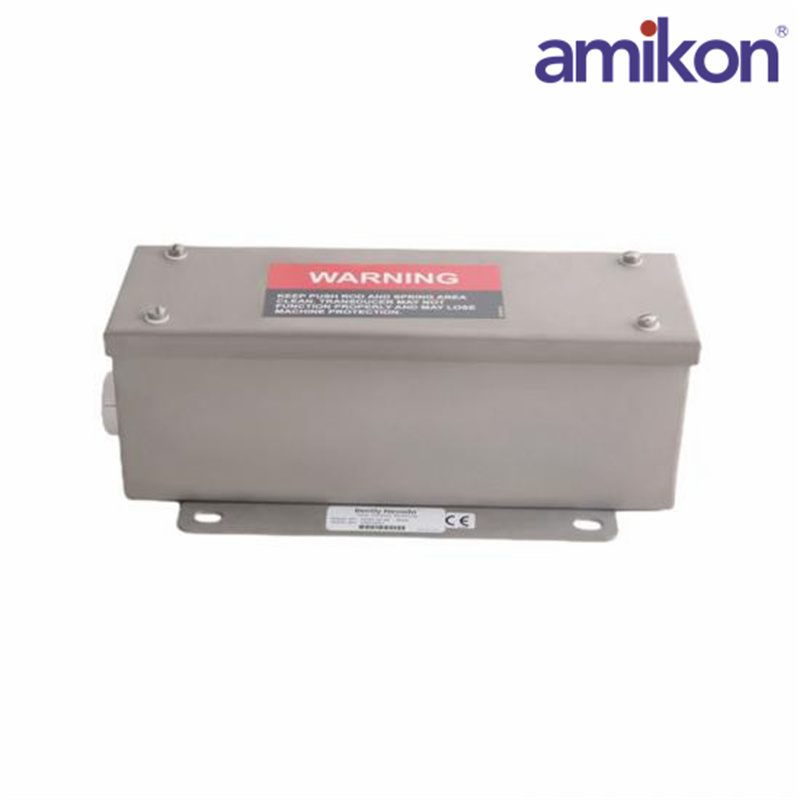

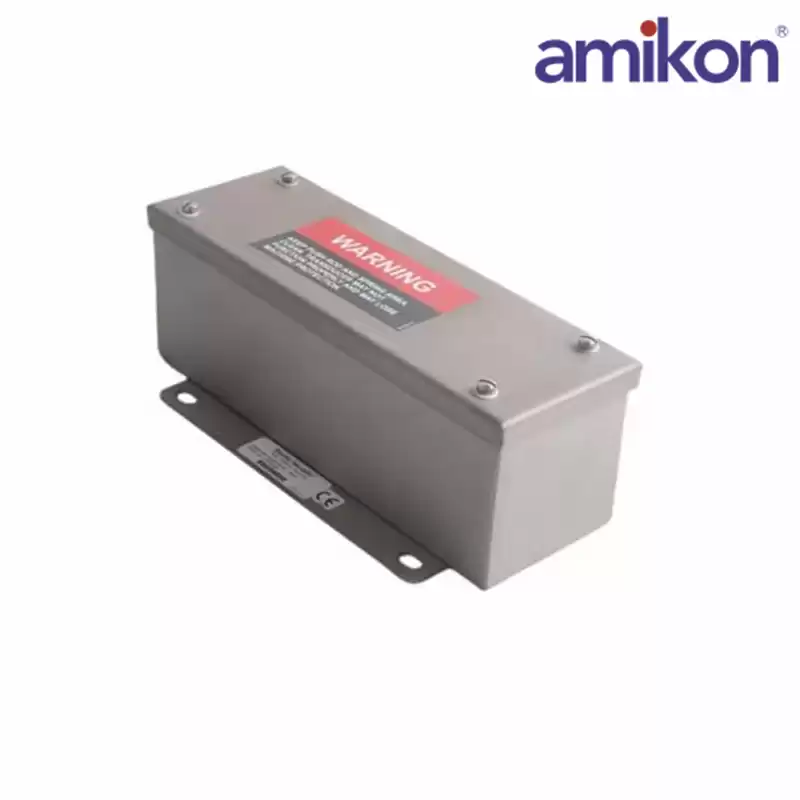

24765-02-00 Case Expansion Transducer Assembly
|
|
Dimensions ：
|
24.6x22.2x2cm
|
Weight：
|
0.22kg
|
|
Linear Range Option：
|
02 = 50.8 mm (2.00 in)
|
Scale Factor：
|
0.404 V/mm (10.25 V/in).
|
|
Spring Option ：
|
00 = Without spring return
|
Linear Range：
|
50.8 mm (2.00 in)
|
|
24765-02-00 is a Case Expansion Transducer Assembly (dc) without spring return.An important position measurement in Turbine SupervisoryInstrumentation (TSI) is case expansion. Case expansion(sometimes referred to as shell expansion) is the thermalgrowth of the machine case as it expands during machinestartup and on-line operations. The case expansiontransducer system is typically mounted on the foundation atthe opposite end from where the turbine casing is attachedto the foundation and provides information about the growthof the machine case relative to the foundation.
|
