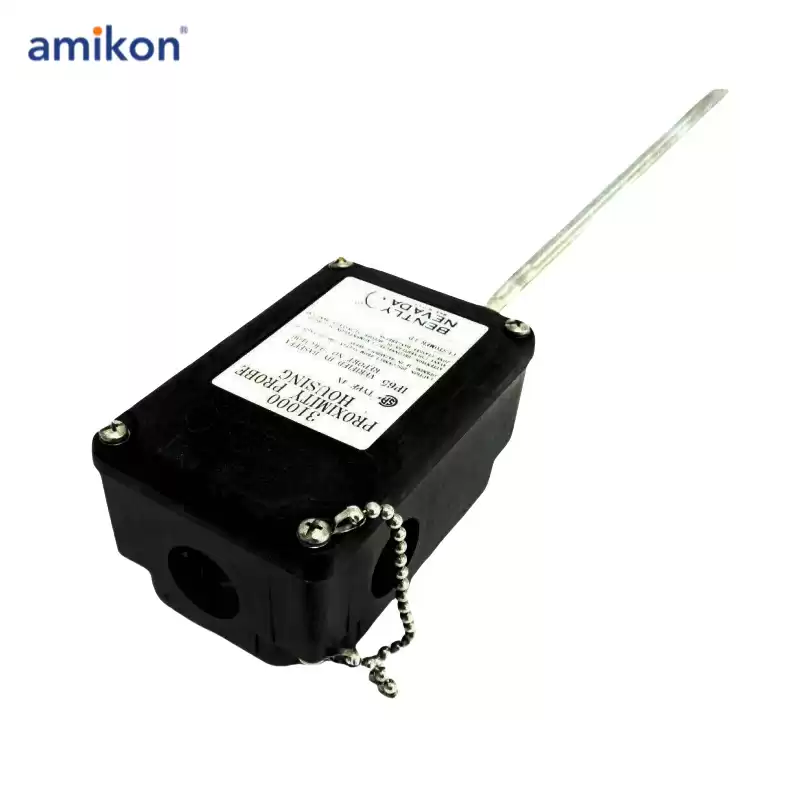

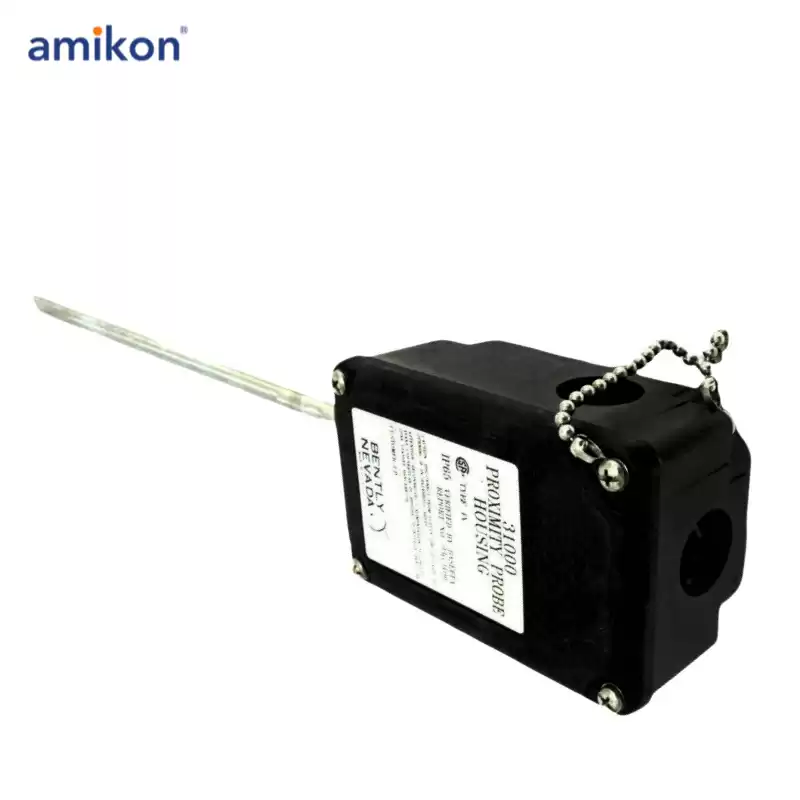

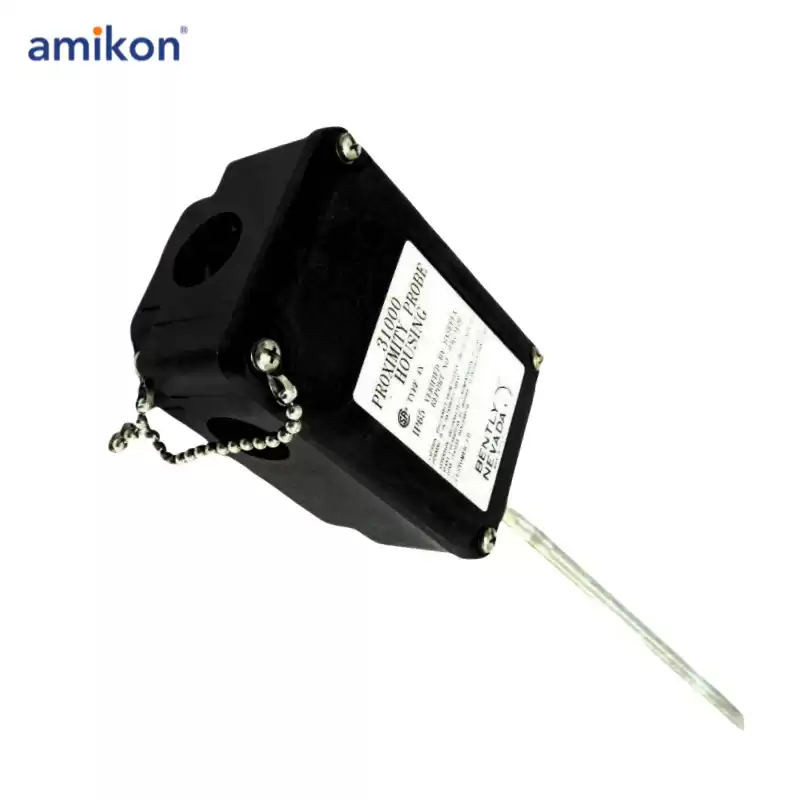

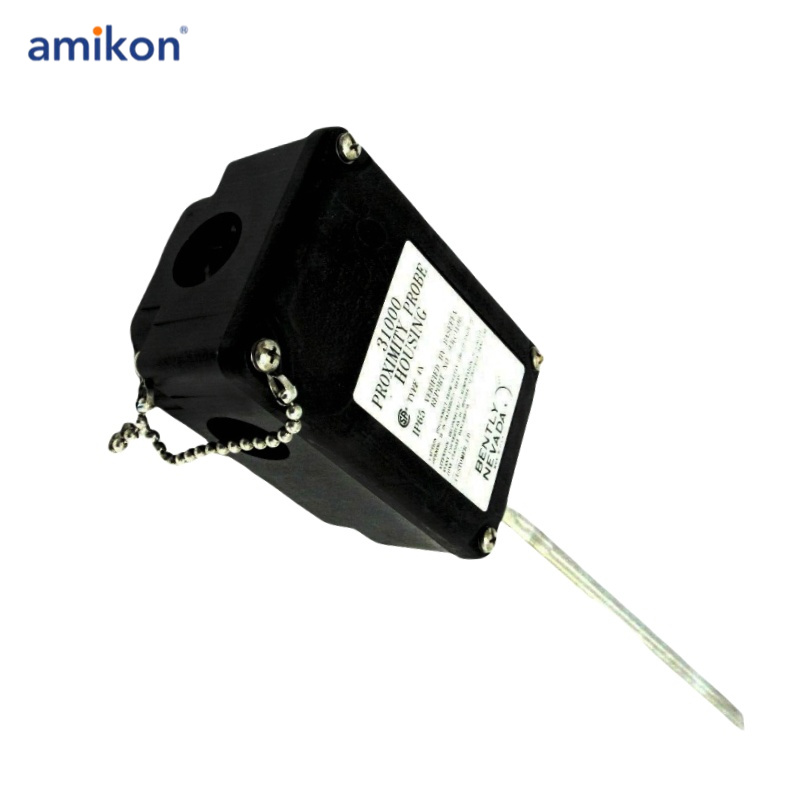

Bently nevada 31000 Proximity Probe Housings 31000-16-10-00-050-03-02

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted
transducers, whether vibration or Keyphasor measurements.

Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the
machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, highstrength, thermoplastic with excellent corrosion resistance.

Other elements of the housing assembly are made of corrosion-resistant stainless steel. The housing can be ordered with installed 3300 XL Proximity Probes and a variety of conduit fittings.

The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.

Manufacturer : Bently Nevada
Product No. : 31000-16-10-00-085-03-02
Product type : 31000 Proximity Probe Housings
Probe Option, With Connector : 16 = 3300 XL 8 mm probe
Probe Cable Length Option : 10 = 1.0 metre (39 in)
Standoff Adapter Option : 00 = No standoff adapter.
Probe Penetration Option : 085 = 8.5 in
Protection Ratings: Type 4X rating certified by Canadian Standards Association (CSA). IP66 rating verified by SC115582-1 (e) 106. CENELEC standard EN50014 rating for electrostatic dissipation of a plastic material located in a hazardous area.
Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain: AISI 304 stainless steel
Outer Sleeve and Exterior Screws: AISI 303 stainless steel
