General Information：
|
Part number
|
31000 SC115582-1
|
|
Manufacturer
|
BENTLY NEVADA
|
|
Origin
|
USA
|
|
Description
|
Proximity Probe Housing Assemblies
|
|
Payment
|
T/T
|
|
Lead Time
|
In stock
|
-------------------------------------------------------------
ABOUT 31000 SC115582-1 :

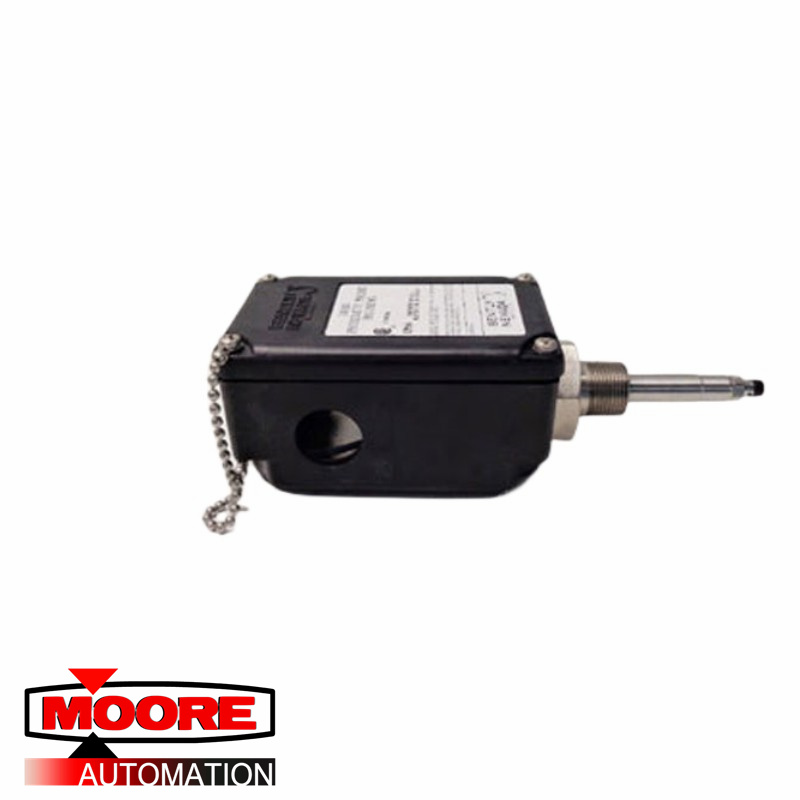

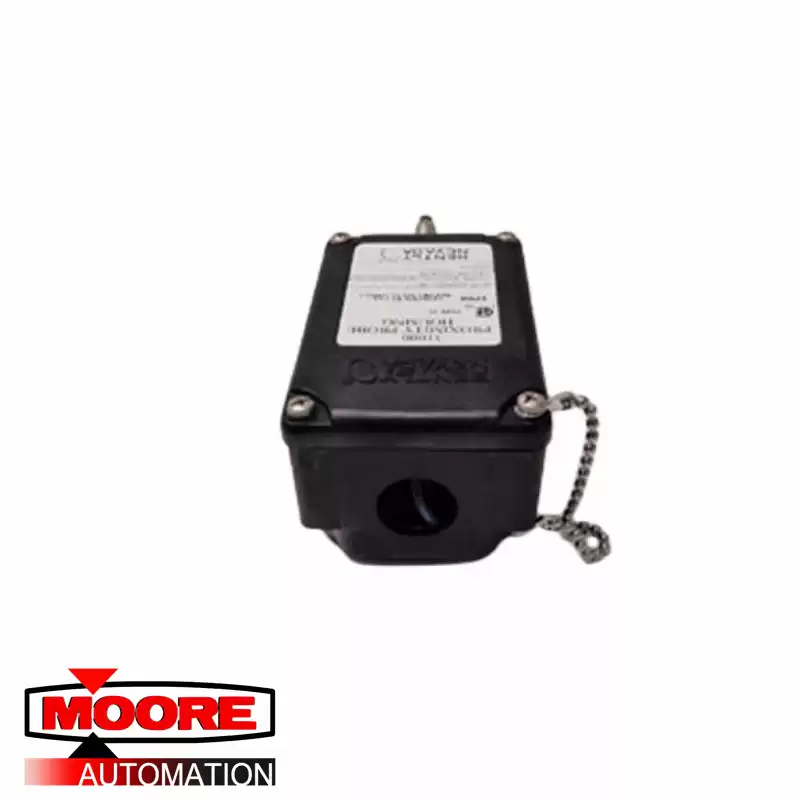

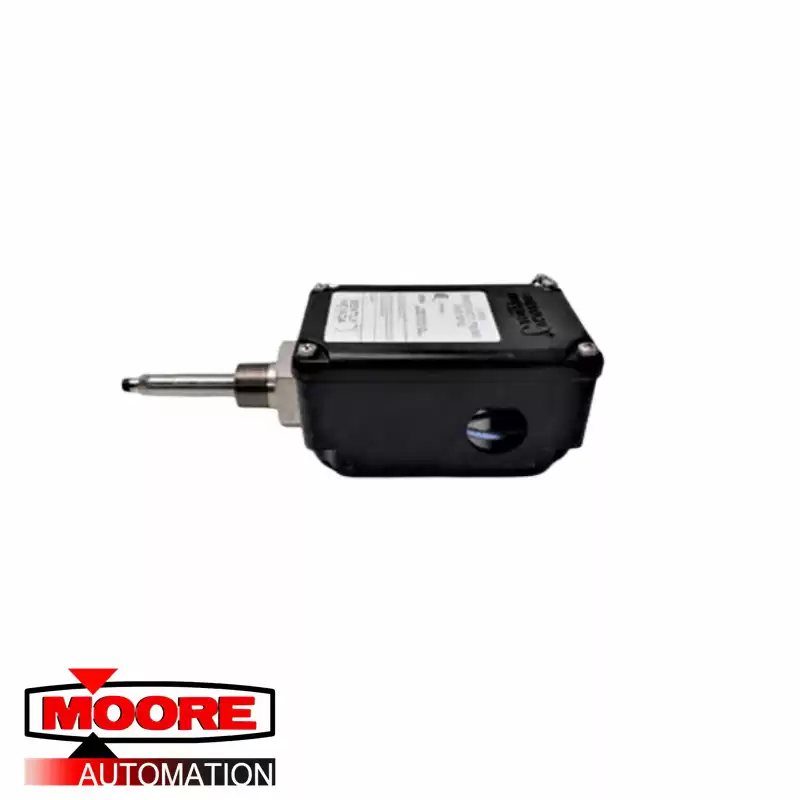

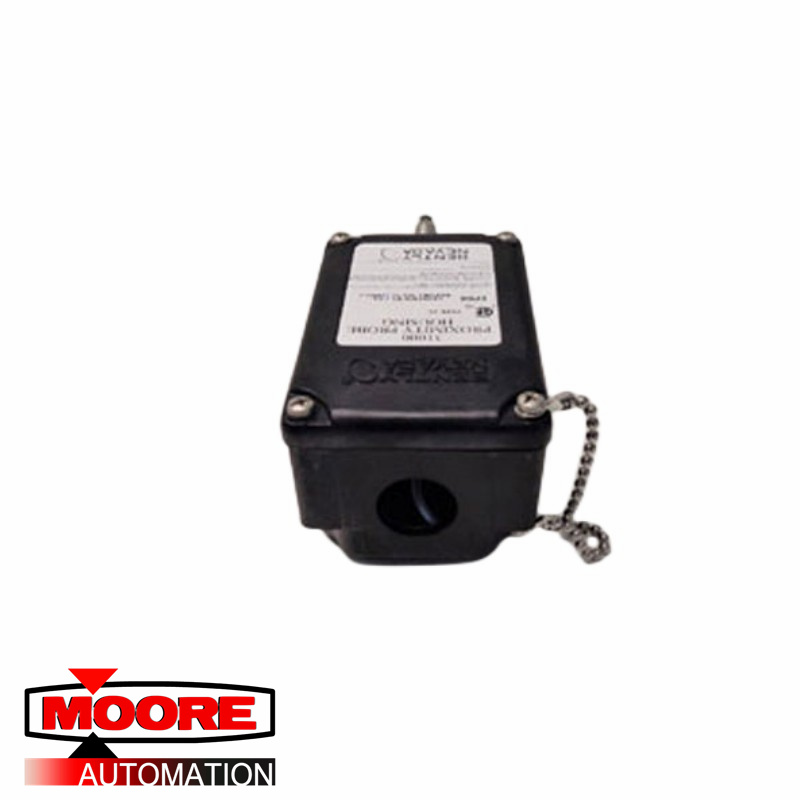

BENTLY NEVADA 31000 SC115582-1 Proximity Probe Housing Assemblies
The 31000/32000 Proximity Probe Housing
Assembly is designed to seal differential
pressure between the probe tip and the
housing main body when used with a 3300 XL 8
mm probe. The sealing material internal to the
probe case consists of a Viton O-ring; the Oring between the sleeve and the housing is a
Neoprene O-ring. The plastic housing is certified
to seal against hose-directed water according
to NEMA 4X and IP66 standards but is not
designed to resist internal or external pressure.
Probes are not pressure tested prior to
shipment. Contact our custom design
department if you require a test of the pressure
seal for your application.
The 31000/32000 Proximity Probe Housing Assemblies are
recommended when mounting proximity probes through the
machine case and are typically used for radially mounted
transducers, whether vibration or Keyphasor measurements.
RFQ--please contact sales manager John Yang
