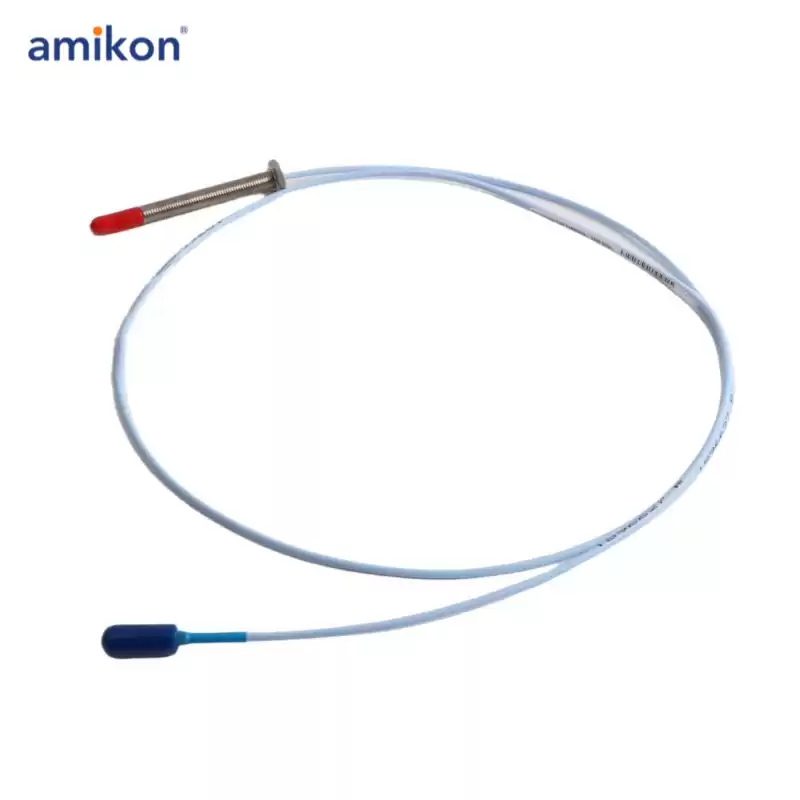

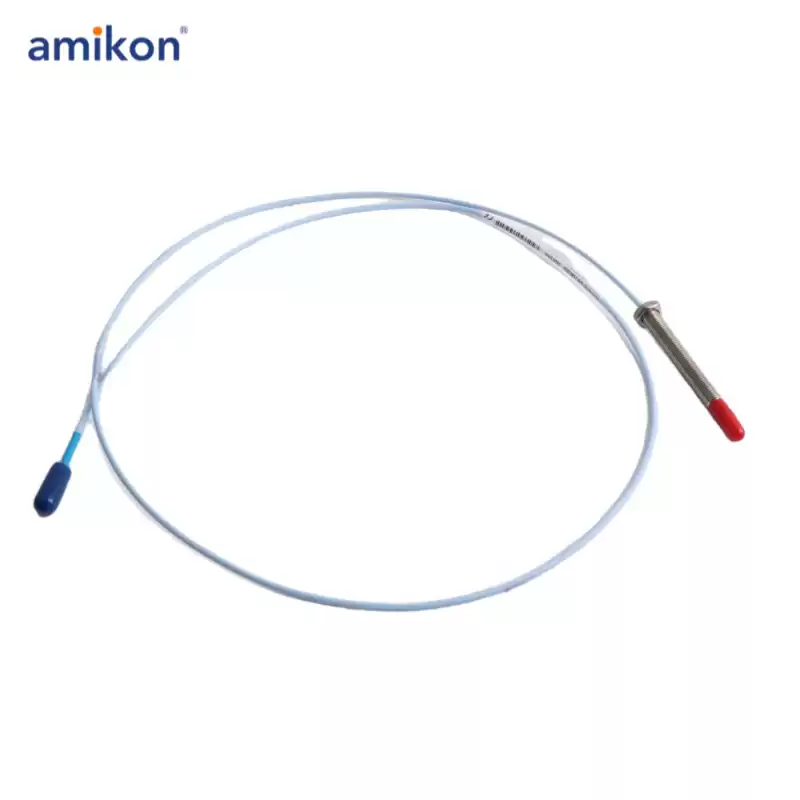

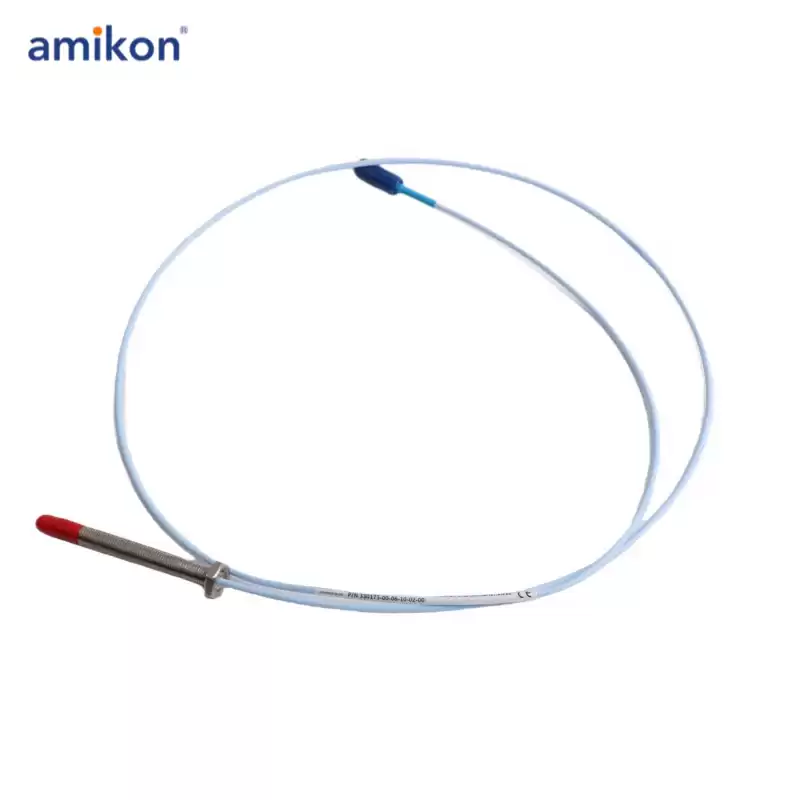

Bently nevada 3300 5mm Proximity Probes 330173-00-02-10-02-05

Brand:

Bently Nevada

Part Number:

330173-00-02-10-02-05

Model:

3300 5mm Proximity Probes

Long Description:

When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that
is directly proportional to the distance between the probe tip and the observed conductive surface. The system can
measure both static (position) and dynamic (vibration) data.
Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications.

The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer
Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor
sensor, eliminating the need for individual component matching or bench calibration.

The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.
