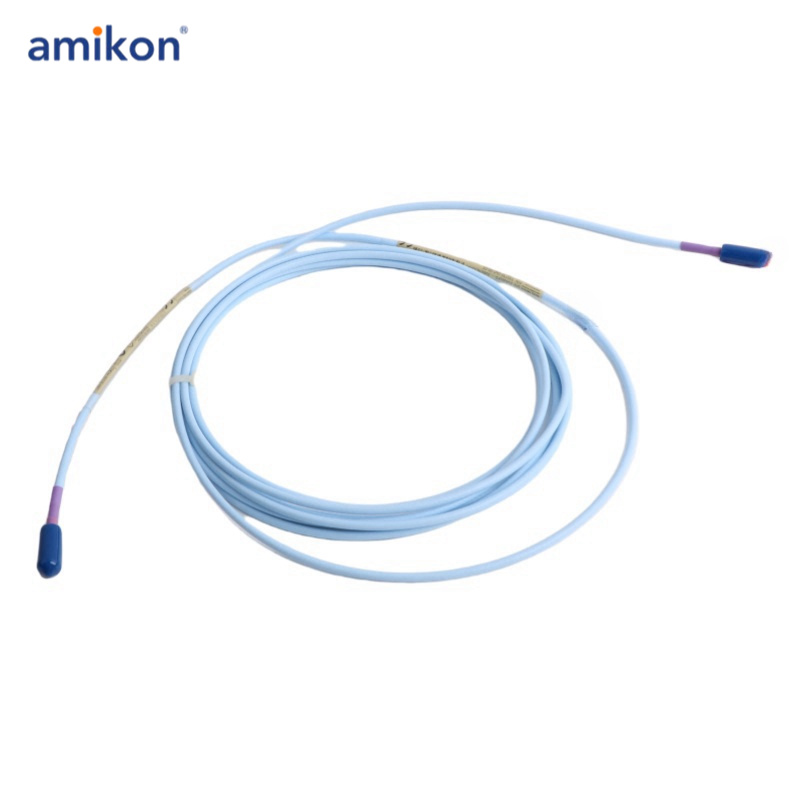

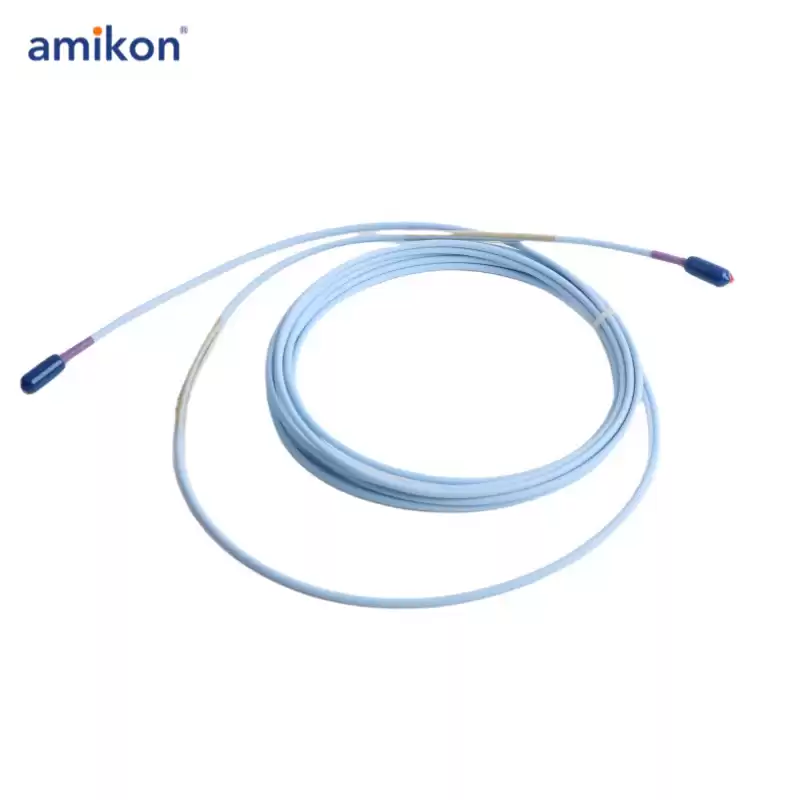

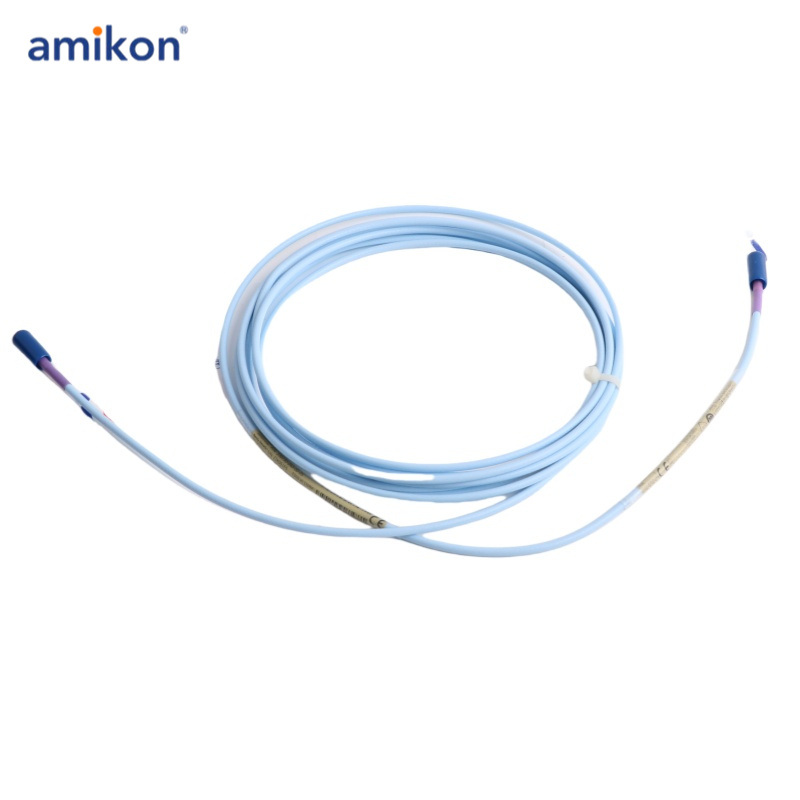

Bently Nevada 3300 XL 11 mm Extension Cable 330730-040-00-CN
Manufacturer : Bently Nevada
Product No. : 330730-040-00-CN
Product Type : 3300 XL 11 mm Extension Cable
Cable Length Option : 040 = 4.0 metres (13.1 feet)
Connector and Cable Option : 00 = Standard cable
Agency Approval Option : 00 = Not required
Recommended Minimum Target Size : 30.5 mm (1.2 in) diameter (flat target)
Weight : 0.14 Kg
The 330730-040-00-CN 3300 XL 11 mm Proximity Transducer System consists of:
• 3300 XL 11 mm probe
• 3300 XL 11 mm extension cable
• 3300 XL 11 mm Proximitor® Sensor
The 330730-040-00-CN 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
• Axial (thrust) position measurements
• Ramp differential expansion measurements on steam turbines
• Rod position or rod drop measurements on reciprocating compressors
• Tachometer and zero speed measurements
• Phase reference (Keyphasor®) signals
