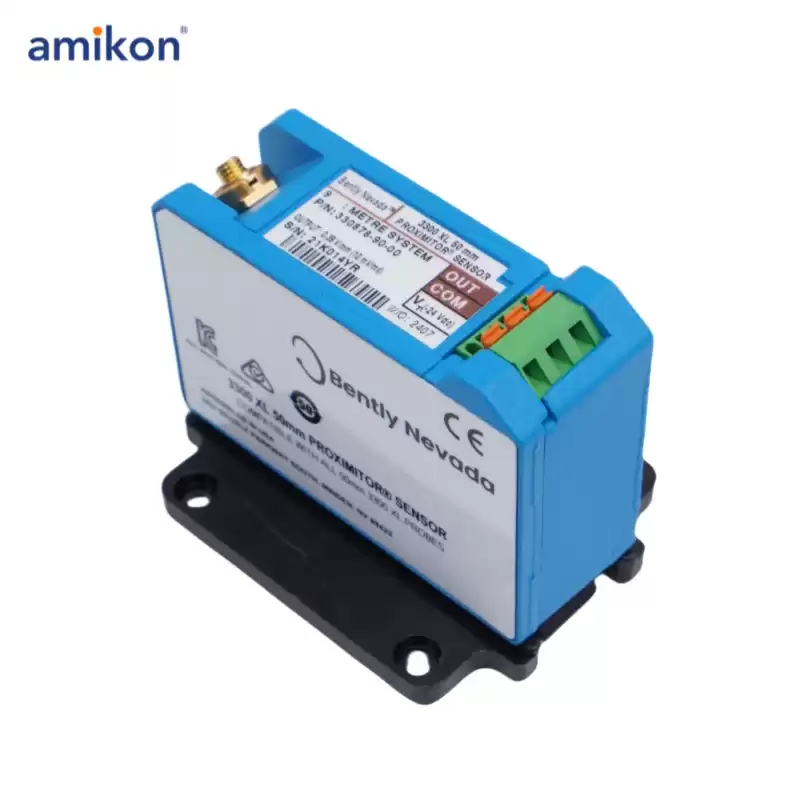

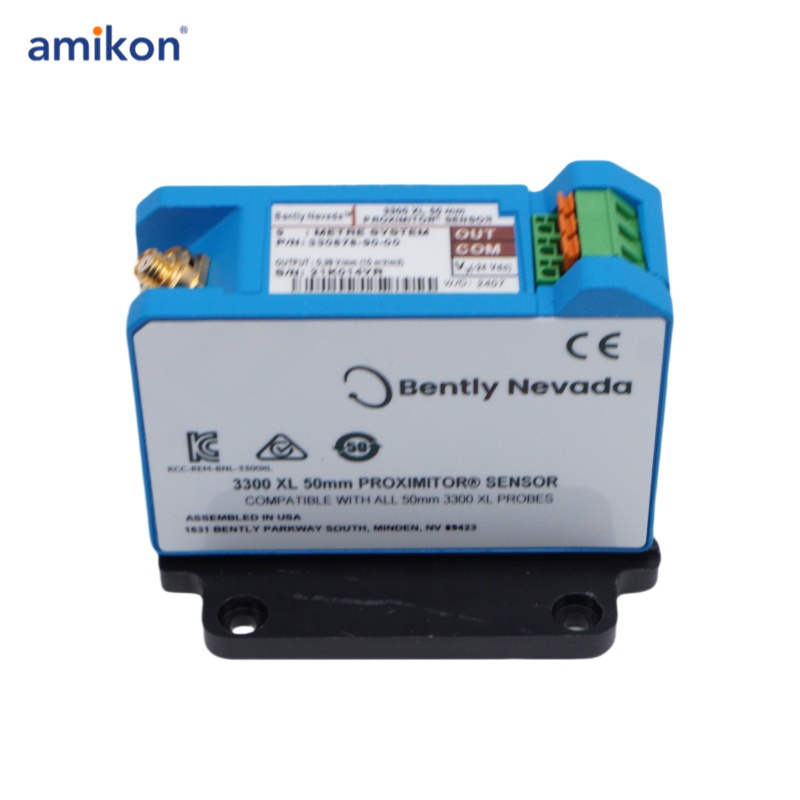

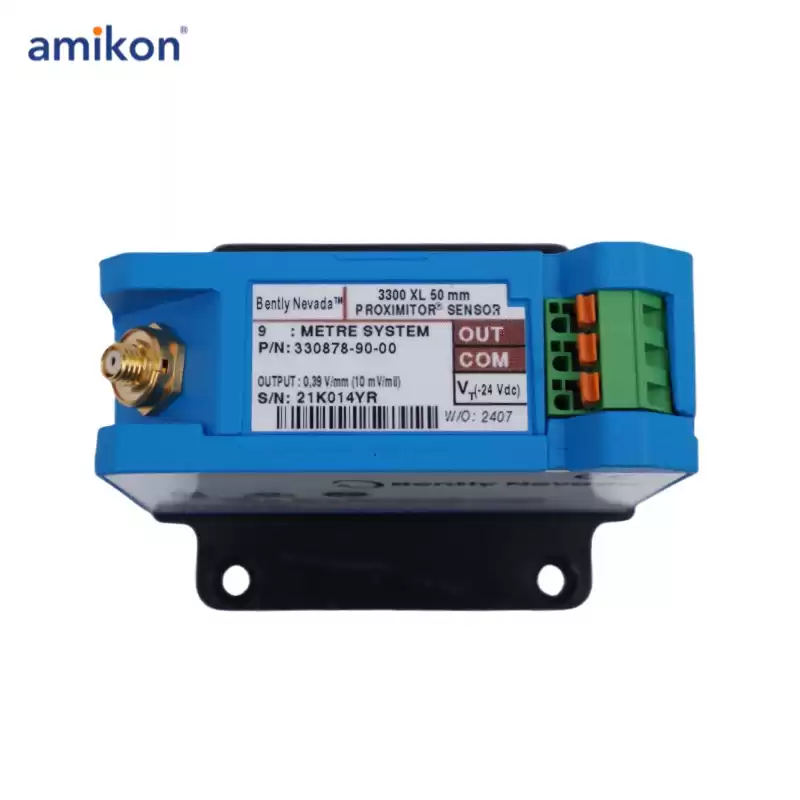

Bently nevada 3300 XL 50 mm Proximitor Sensor 330878-91-00

Brand:

Bently Nevada

Part Number:

330878-91-00

Model:

3300 XL 50 mm Proximitor Sensor

Long Description:

The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor* Sensor. The large diameter coil gives this system a maximum linear range of 27.9 mm (1100 mils), the longest linear range of our eddy current transducer line. This linear range makes the 3300 XL 50mm Transducer System ideal for measuring the differential expansion (DE) or rotor expansion (RX) of large steam turbine generators that results from the difference in growth rates between the turbine rotor and the machine stator (casing).

Total Length and Mounting Option : 91 = 9.0 metres (29.5 feet) system length, DIN mount
Agency Approval Option : 00 = No Approvals
Proximitor Sensor Material : A380 aluminum
Operating Temperature: -51°C to +100°C (-60°F to +212°F)
Storage Temperature: -51°C to +105°C (-60°F to +221°F)
