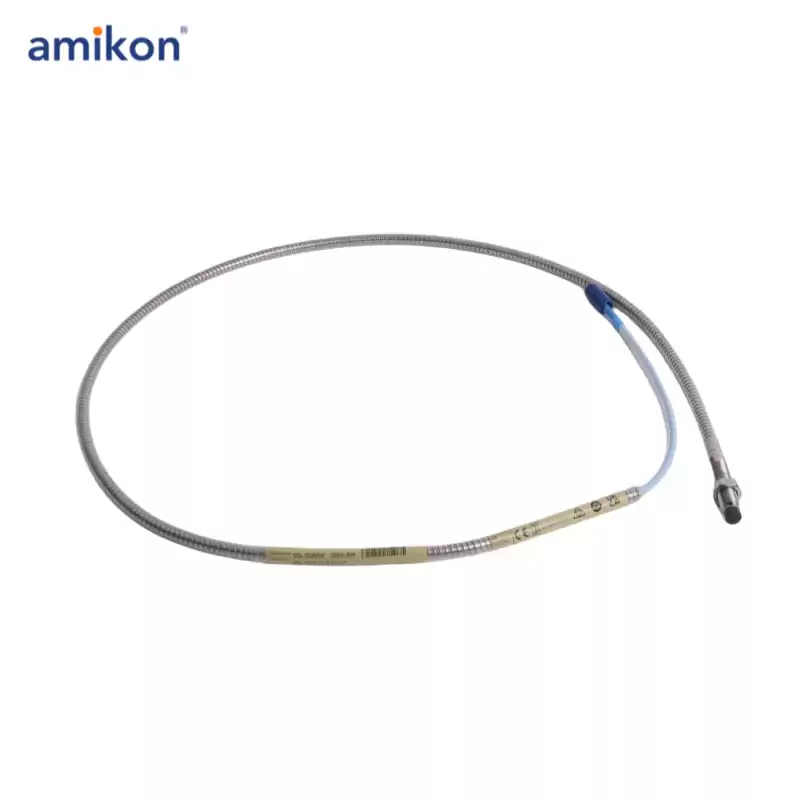

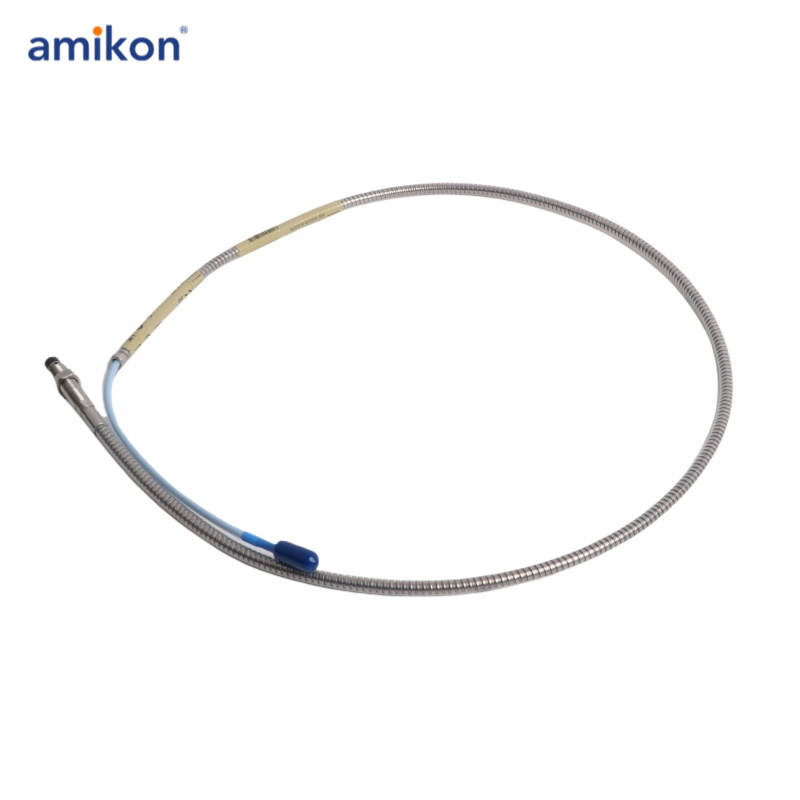

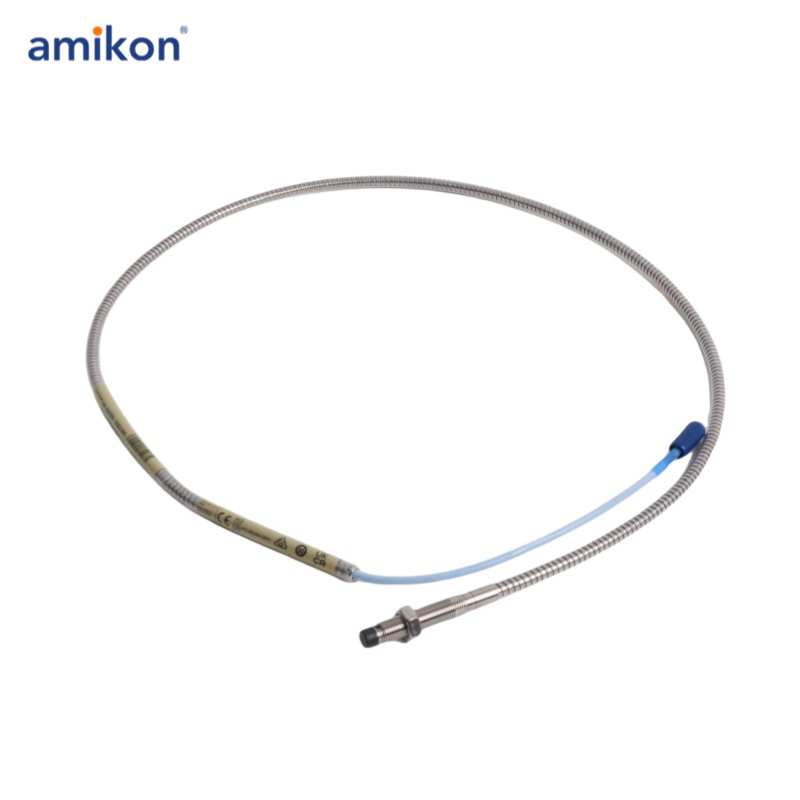

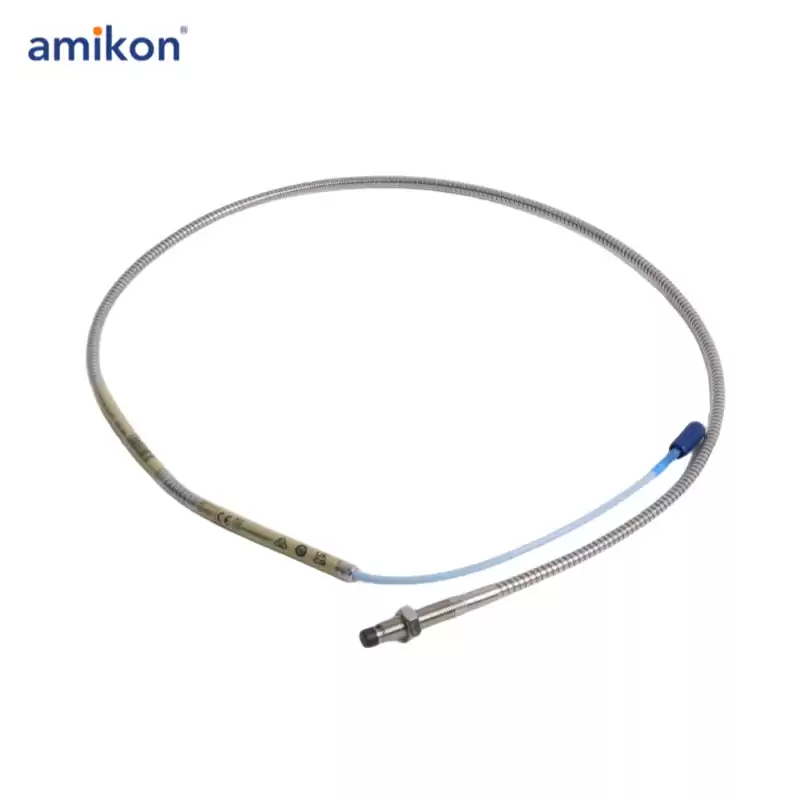

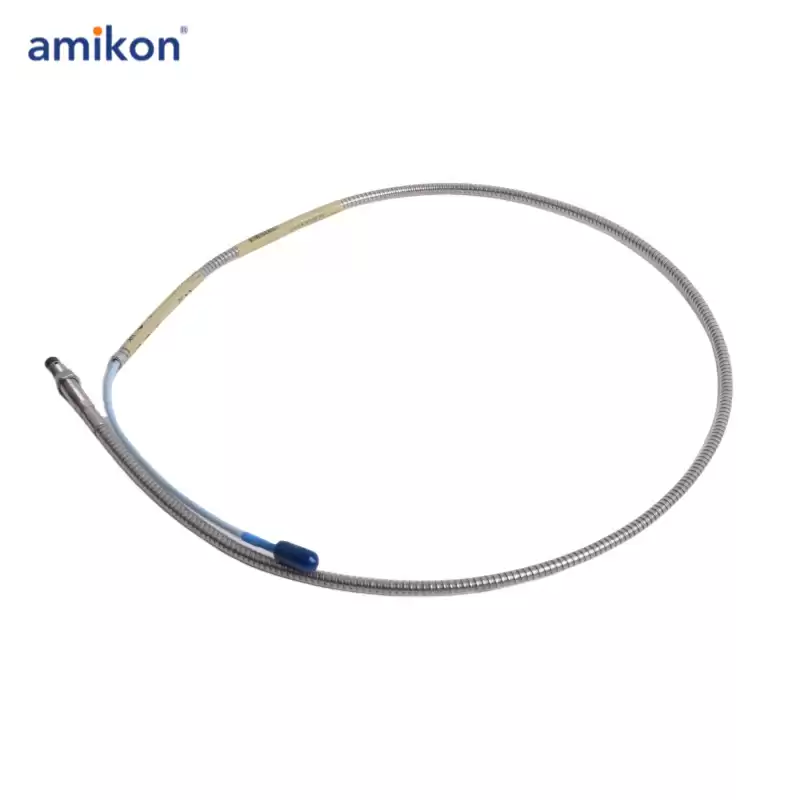

Bently nevada 3300 XL 8 mm Proximity Probes 330102-08-96-10-02-00

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body.

The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

Manufacturer : Bently Nevada
Product No. : 330102-08-96-10-02-00
Product Type : 3300 XL 8 mm Proximity Probes
330102 : 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
Unthreaded Length Option : 08 = 0.8 in
Overall Case Length Option : 96 = 9.6 in
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : 00 = Not required
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Operating and Storage Temperature : -51 °C to +177 °C (-60 °F to +351 °F)
Weight : 0.323 Kg
