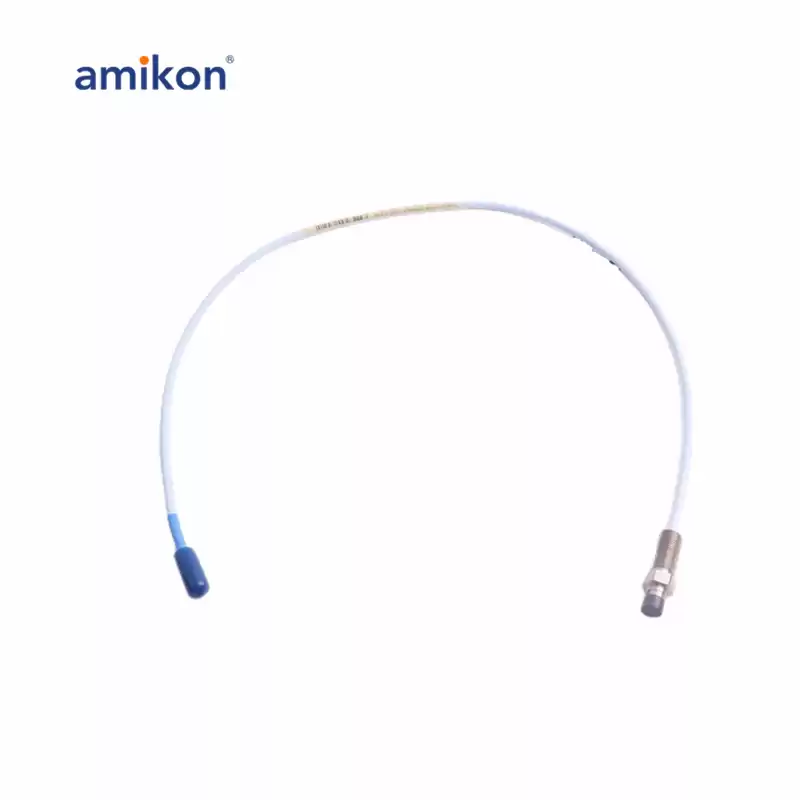

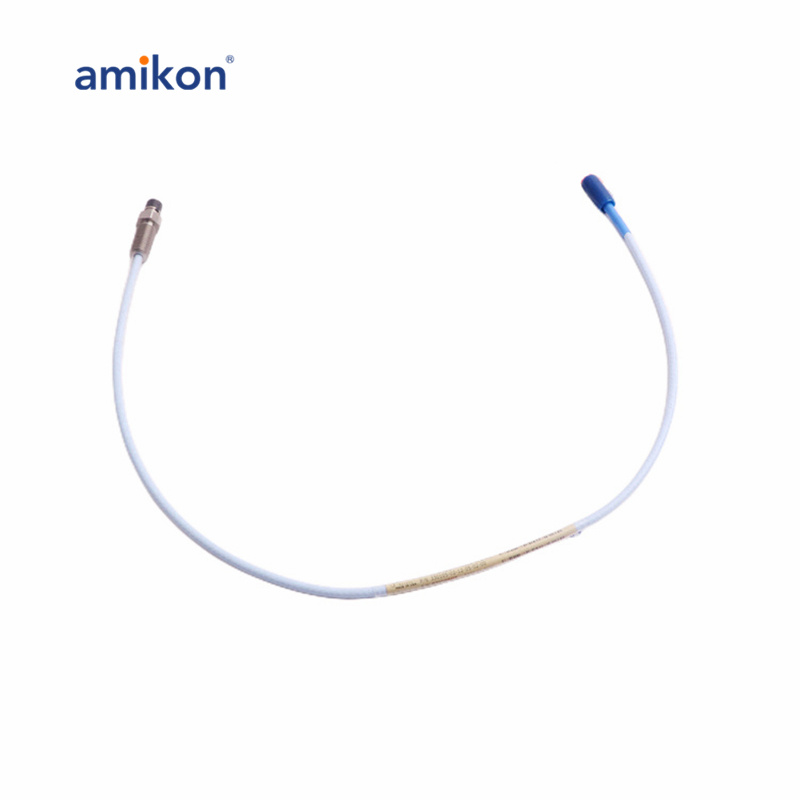

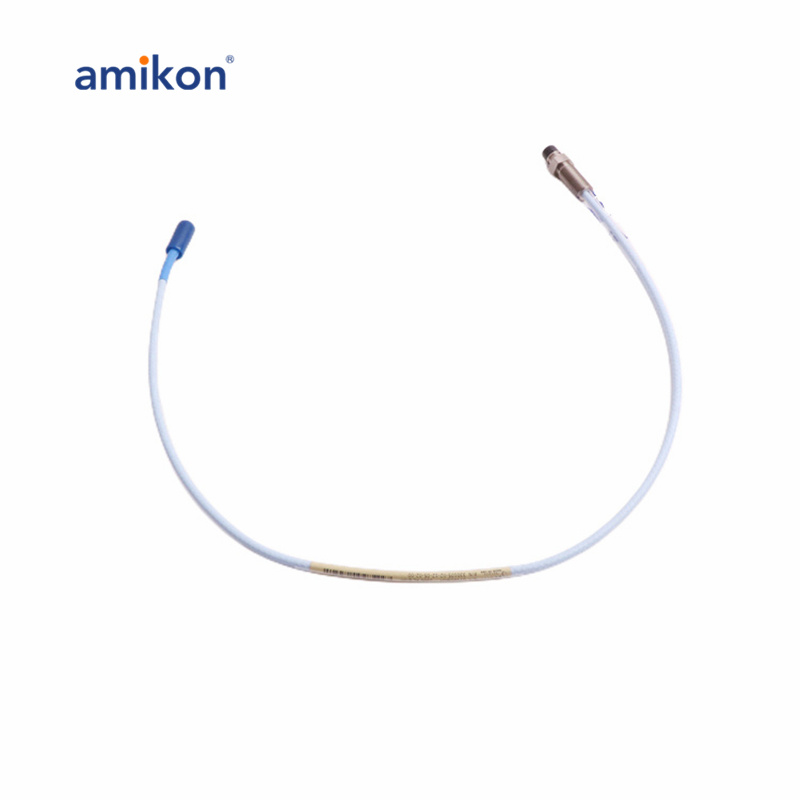

Bently Nevada 3300 XL 8 mm Proximity Probes 330105-02-12-05-02-00

Brand new and original sealed//Same Day Shipment

  • Warranty PeriodOne Year Warranty
  • Dimensions20.5x21x3.5cm
  • Weight0.08kg
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
Manufacturer : Bently Nevada
Product No. : 330105-02-12-05-02-00
Product type : 3300 XL 8 mm Proximity Probes
Model: 330105-02-12 - 3300 XL 8 mm Proximity Probes
Total Length Option: -05 - 0.5 metre (1.6 feet)
Connector Option: -02 - Miniature ClickLoc coaxial connector
Agency Approval Option: -00 - Not required
Dimension : 20.4 cm x 22.2 cm x 3.7 cm
Weight : 0.23 Kg

The 3300 XL 8 mm Proximity Transducer System consists of:
• One 3300 XL 8 mm probe,
• One 3300 XL extension cable, and
• One 3300 XL Proximitor* Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 330105-02-12-05-02-00 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 330105-02-12-05-02-00 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
