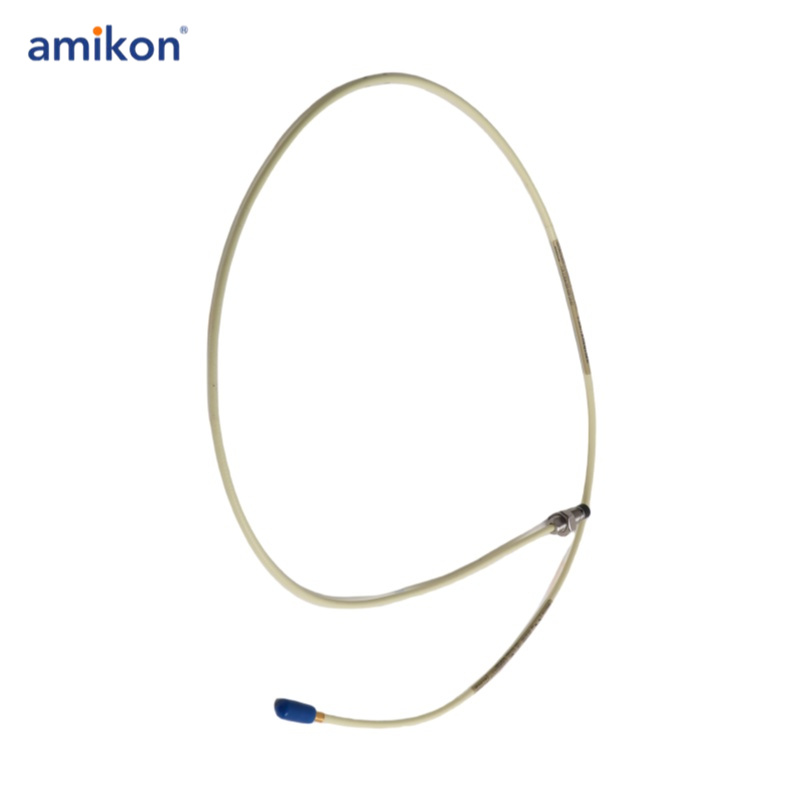

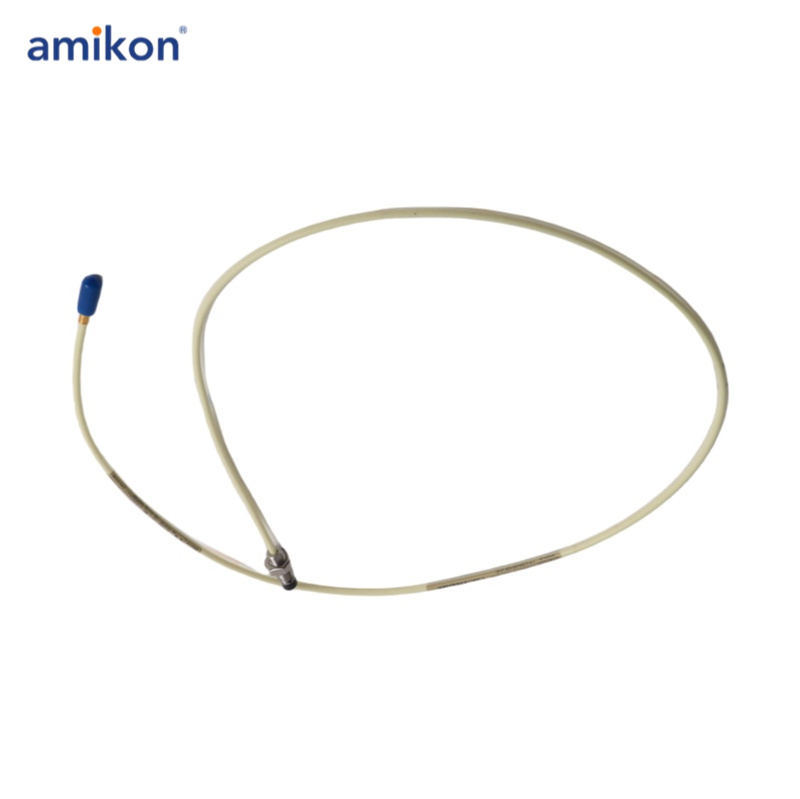

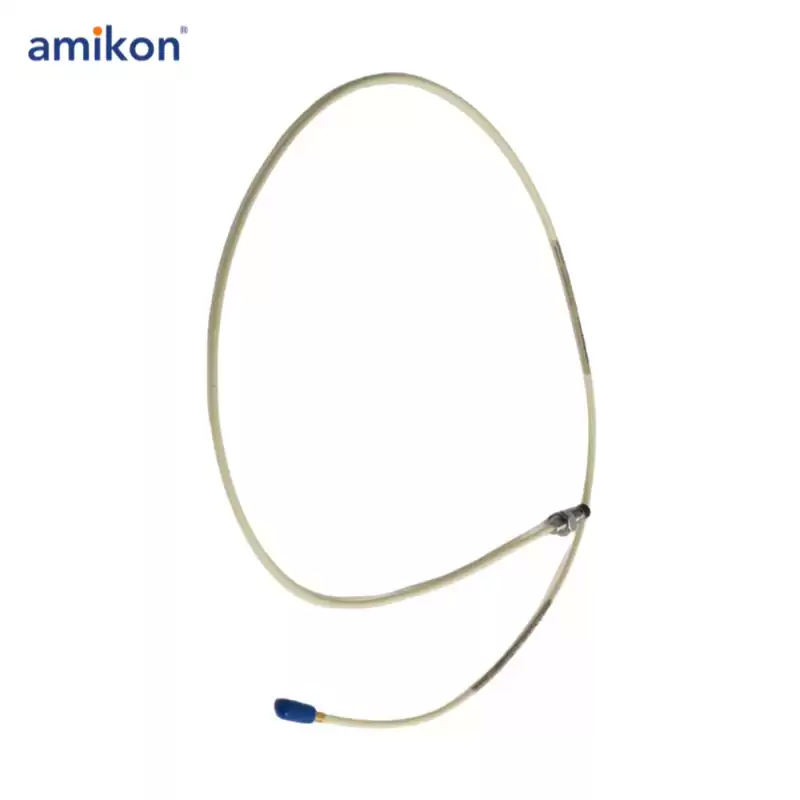

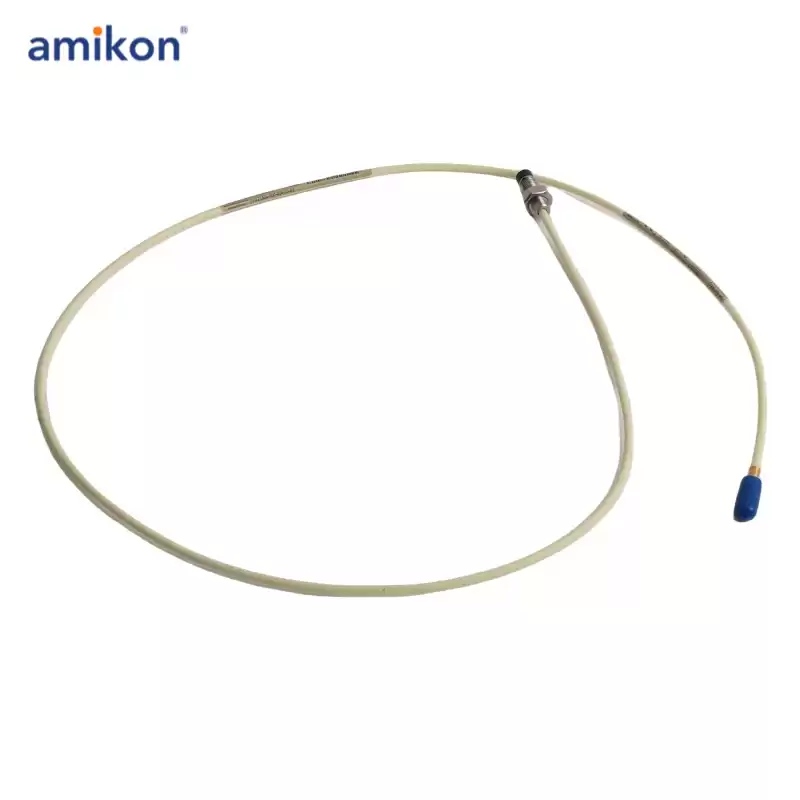

Bently Nevada 3300 XL 8 mm Reverse Mount Probe 21504-000-016-10-02
|
|
21504-000-016-10-02 Types
|
The Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems are non-contacting, gap-to-voltage transducer systems that measure static and dynamic distances between the probe tip and the observed object. The general application is in any situation where an accurate, noncontact displacement measurement is required.
|
|
However, the most prevalent application is for shaft position and vibration measurements on rotating and reciprocating machinery.
|
|
They are intended for use with nearly any machine type, including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators. The system has an 80 mil (2mm) linear measuring range and is API 670 compliant.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
Descrption:
|
Attribute
|
Specification
|
|
Unthreaded Length
|
0.0 inches
|
|
Overall Case Length
|
0.8 inches
|
|
Total Length
|
1.0 meter (Tolerance: +0.25 meter, -0.10 meter)
|
|
Connector
|
With miniature male coaxial connector
|
|
Diameter
|
8 mm
|
|
Configuration Type & Thread
|
Standard, 3/8-24
|
|
Lead Armor
|
No
|
|
Input Power
|
-17.5 Vdc to -26 Vdc at 12 mA (Max consumption)
|
|
Output Calibrated Range
|
80 mils (2.0 mm), begins at ~10 mils (0.25 mm) from probe face
|
|
Total Length Option
|
10 = 1.0 meter (3.3 feet)
|
|
Storage Temperature
|
-51 °C to +177 °C (-60 °F to +351 °F)
|
|
Weight
|
0.20 lbs
|
|
Dimensions
|
9.75 x 8.75 x 1.50 inches
|
21504-000-016-10-02 is a 3300 XL 8 mm Reverse Mount Probe manufactured by Bently Nevada and used in Proximity Transducer System. The Proximity Transducer System and Sensors of the 3300 XL series work with replaceable probes of different lengths, armor, and connectors made by Bently Nevada.
