Manufacturer : Bently Nevada
Product No. : 330180-51-00

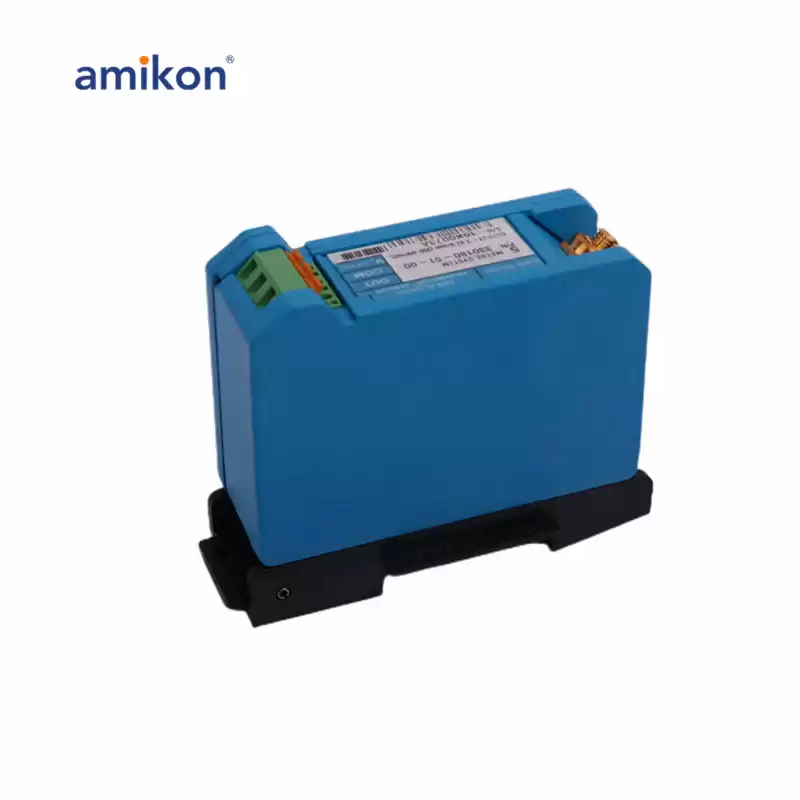

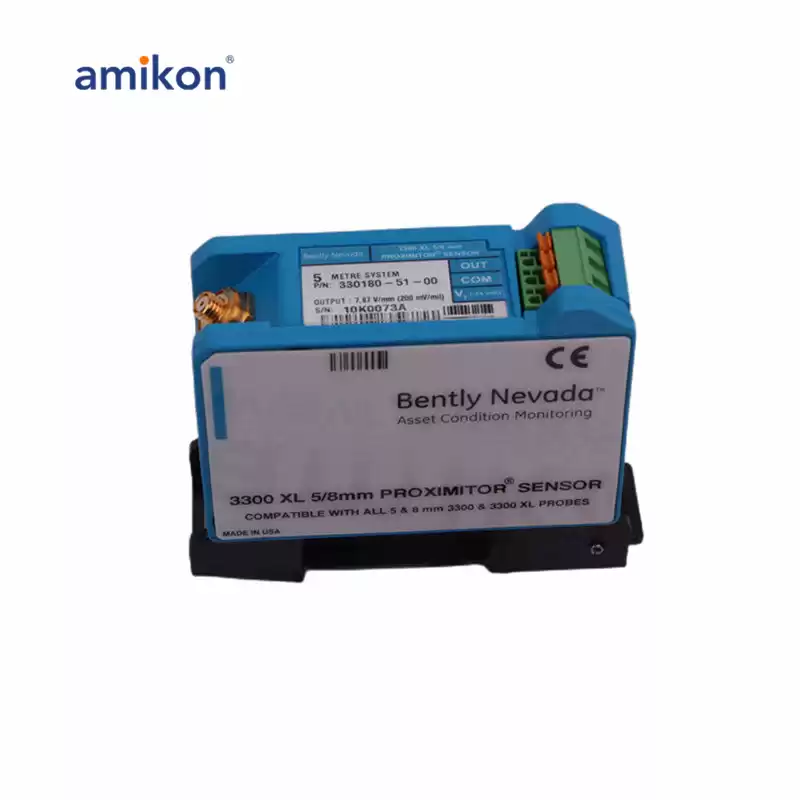

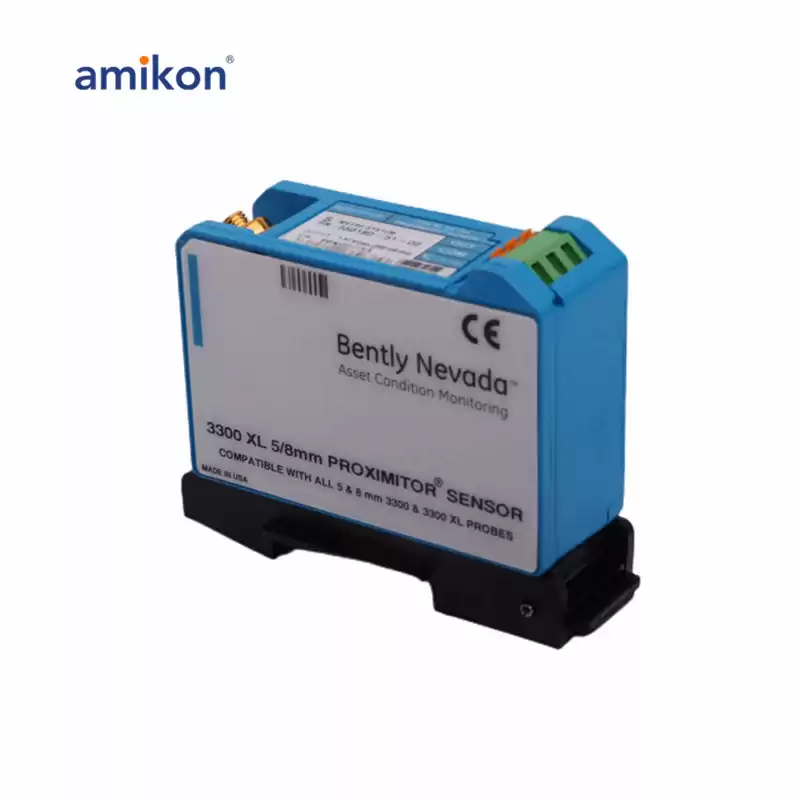

Product type : 3300XL Proximitor Sensor
51 - Total Length and Mounting Option : 5.0 metre (16.4 feet) system length, DIN mount
00 - Agency Approval Option : Not required
Its physical packaging allows you to use it in high-density DINrail installations.
Can mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs.
The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates.
The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals.
The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.
Dimensions ( L x W x H ) : 8.13 cm x 6.12 cm x 6.35 cm
Weight : 0.5 Kg
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s
primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor* reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the American Petroleum Institute’s (API) 670
Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes,
extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for
applications in which an 8 mm probe is too large for the available mounting space.
