Specifications
Part Number: 330180-91-00
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Proximitor Sensor
Series: Bently Nevada 3300
Length: 9.0 meters
Availability: In Stock

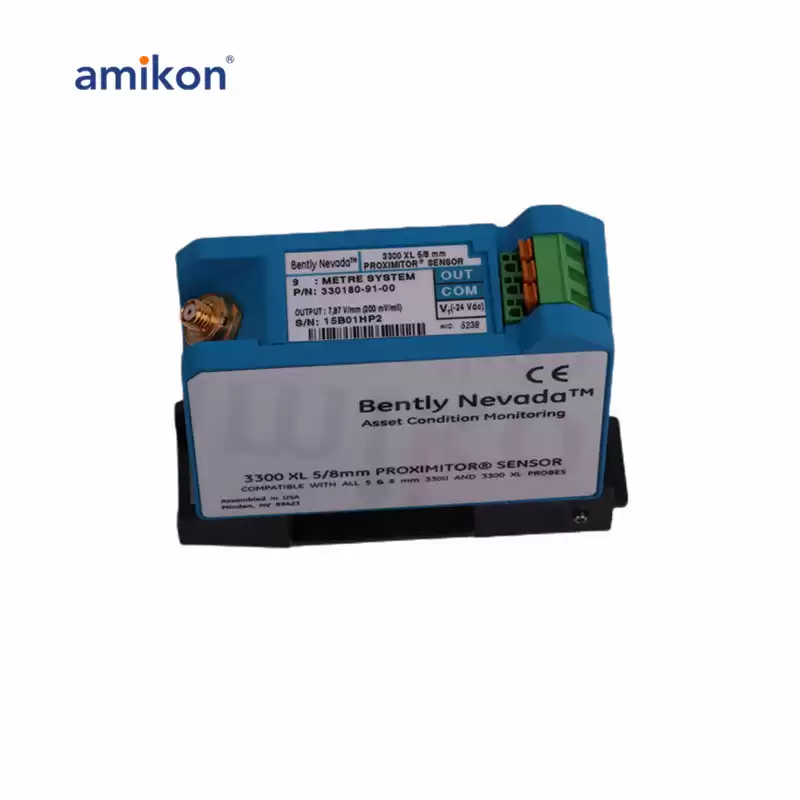

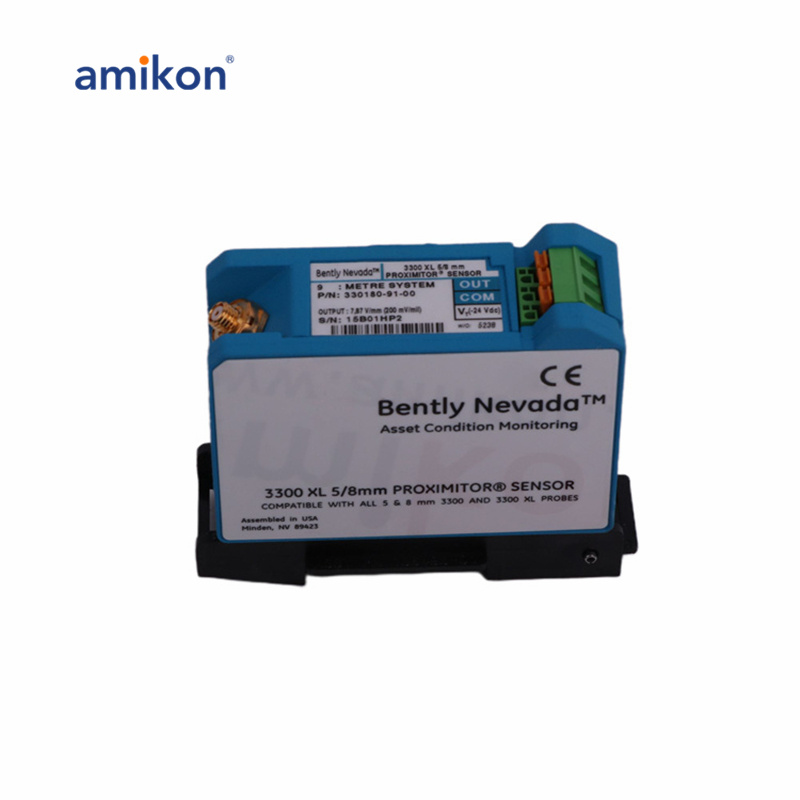

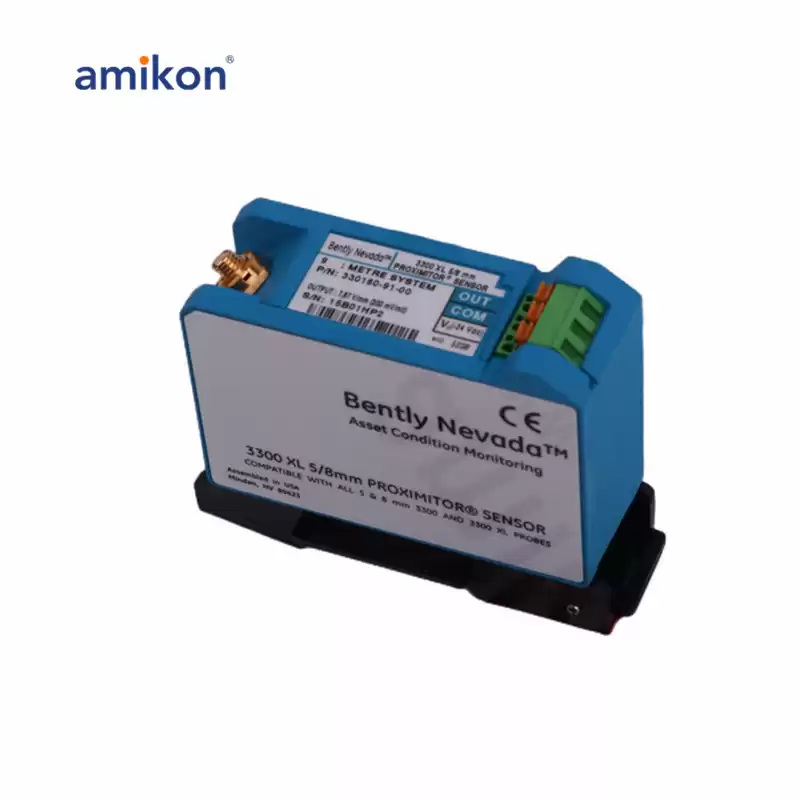

330180-91-00 is a 3300 XL Proximitor Sensor developed by Bently Nevada. It is a part of Bently Nevada 3300 XL 8mm Proximity Transducer System. One 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor make up the 3300 XL 8mm Proximity Transducer System. The system can measure static (position) and dynamic (vibration) readings and outputs a voltage that is directly proportional to the distance between the probe tip and the observed conductive surface.
Features
-All 5 and 8 mm 3300 and 3300 XL probes are compatible with the Bently 3300 XL 5/8mm Proximitor Sensor. The 3300 XL Proximitor Sensor has many advantages over earlier models. You may use it in high-density DINrail systems because to its physical packaging. The sensor can also be installed in a conventional panel mount position, where it has the same 4-hole mounting layout as earlier Proximitor Sensor models. Both mounting bases offer electrical isolation and do away with the need for additional isolator plates.
-Vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements, are the system's main uses. The standard API 670 Standard (4th Edition) is fully complied with by the mechanical design, linear range, accuracy, and temperature stability of the 3300 XL 8 mm 5-meter system.
Configuration
-Total Length: 9.0 meters (29.5 feet) system length
-Mounting Option: DIN mount
-Agency Approval Option: CSA, ATEX, IECEx approvals
Characteristics
-Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
-Extended Temperature Range Applications
-Complete Interchangeability of Units and Cabling
-Backward Compatible with Other Non-3300 XL Series Transducer System Components
Power-Up Inhibit Function
-This one-of-a-kind feature reduces false alarms caused by a transient power surge or loss and subsequent power re-application.
-After the power has stabilized, alarms are disabled for two seconds before Timed OK/Channel Defeat, if enabled, becomes active.
-Rack Restriction — This function, which is activated by customer-supplied external contact closure, bypasses all monitors, disables alarms, zero-scales all outputs, and de-energizes the system OK relay.
