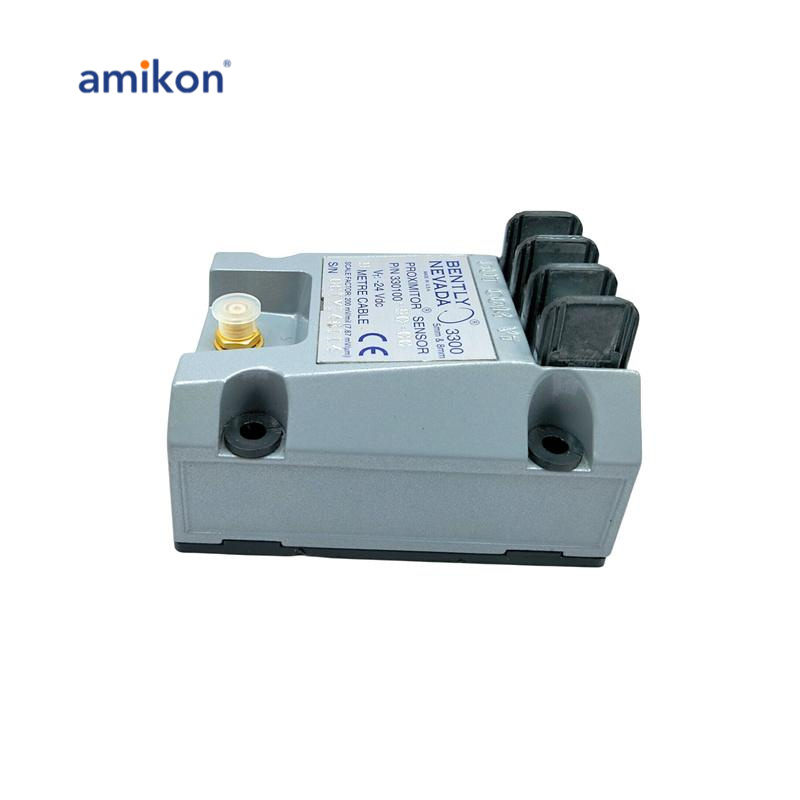

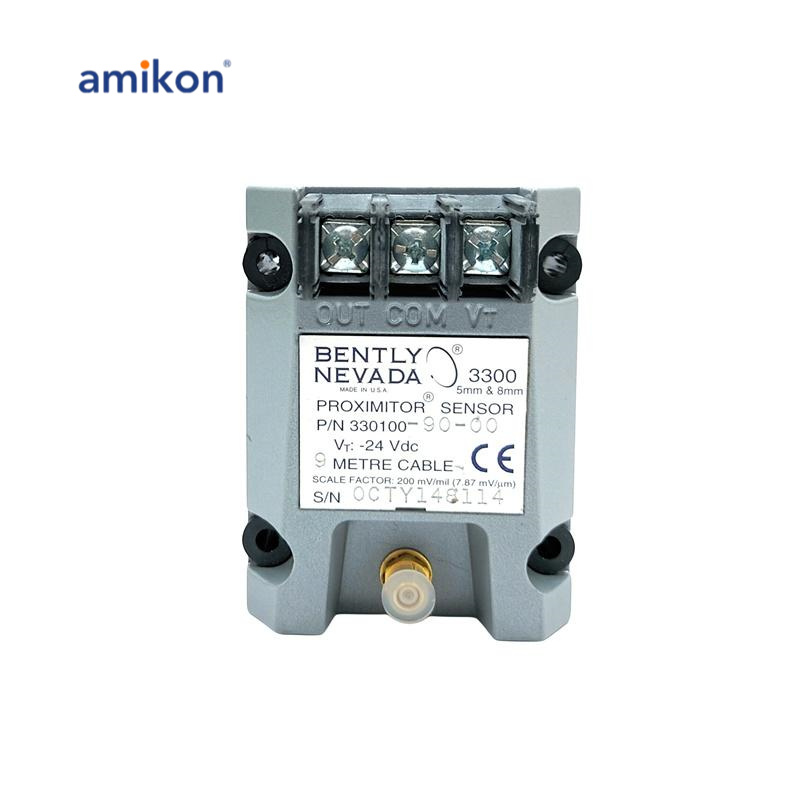

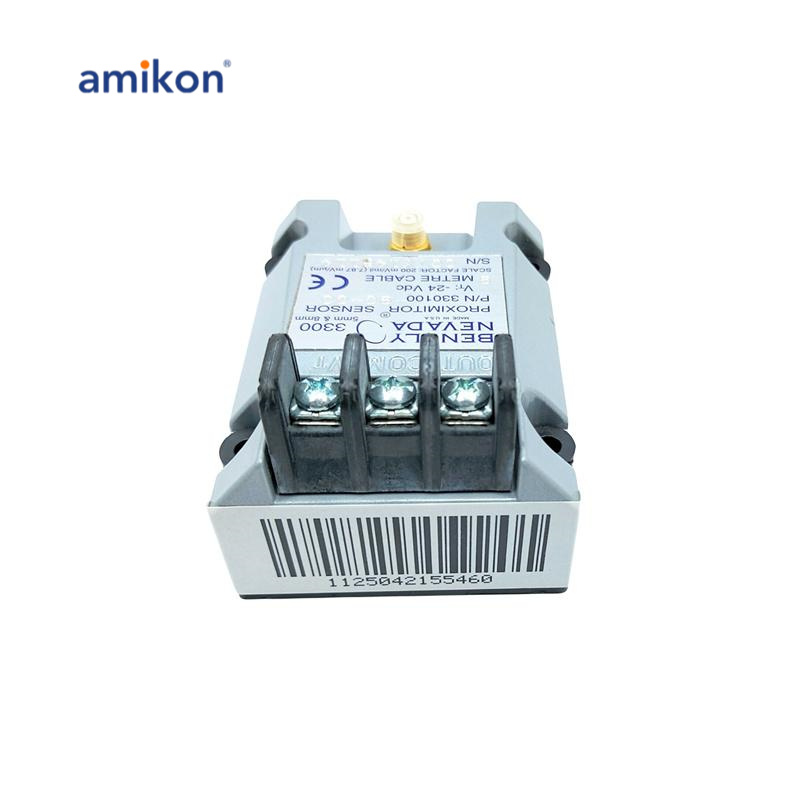

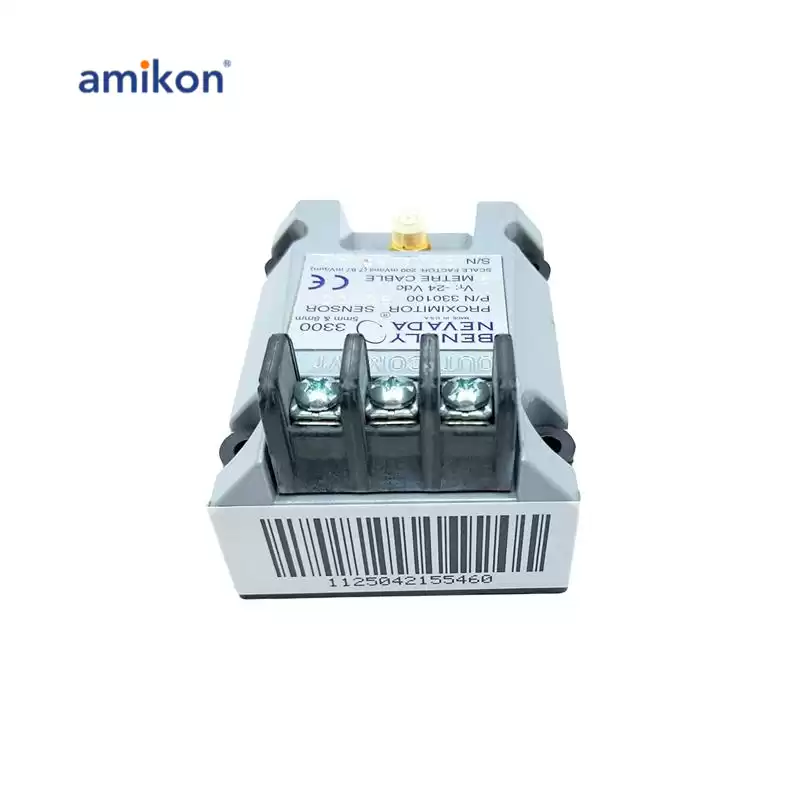

Bently Nevada 330100-90-00 3300 Proximitor Sensor

Weight: 0.29 Kg

Product Description
330100-90-00 is a Proximitor Sensor manufactured by Bently Nevada as part of the 3300 Series used in proximity transducer system. The output voltage of the Bently Nevada 3300 Proximity Transducer System is directly proportional to the separation of the probe tip from the target conductive surface. It is generally utilized for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor and speed measurement applications. It is capable of both static (position) and dynamic (vibration) measurements. Over a large temperature range, the system outputs a precise, consistent signal. This level of performance is shared by all 3300 Proximity Transducer Systems, which also eliminate the requirement for bench calibration or individual component matching while enabling full interchangeability of the probe, extension cable, and proximity sensor.

330100-90-00 Functional Description
The system generates an output voltage that is proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor and speed measurement applications 6. Over a wide temperature range, the system produces an accurate and stable signal output.
All 3300 Proximity Transducer Systems achieve this level of performance while allowing complete interchangeability of probe, extension cable, and Proximitor Sensor without the need for individual component matching or bench calibration.
Proximitor Sensor The 3300 Proximitor Sensor improves on previous Bently Nevada eddy current transducers in terms of linearity and temperature stability. It also has an integral isolation plate as its base, which eliminates the need for separate isolator plates.
