BENTLY NEVADA 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probes

Brand new and original sealed//Same Day Shipment

  • Payment Term100% Advance Payment T/T Bank Wire Transfer
  • Warranty PeriodOne Year Warranty
  • Dimensions20.5cmx22.4cmx3.3cm
  • Weight0.1kg
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
Facebook Twitter Pinterest LinkedIn 分享

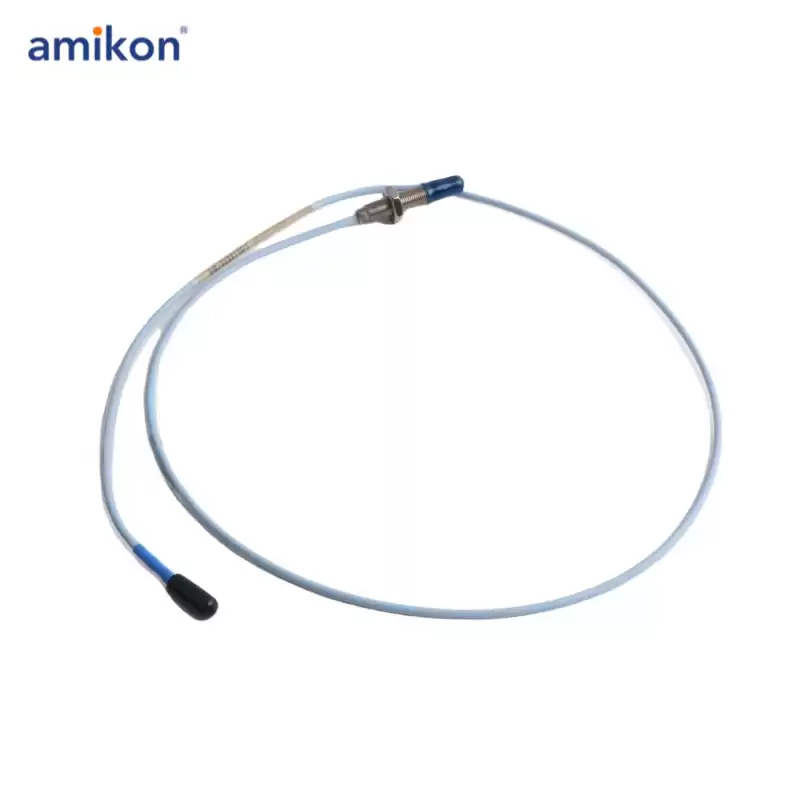

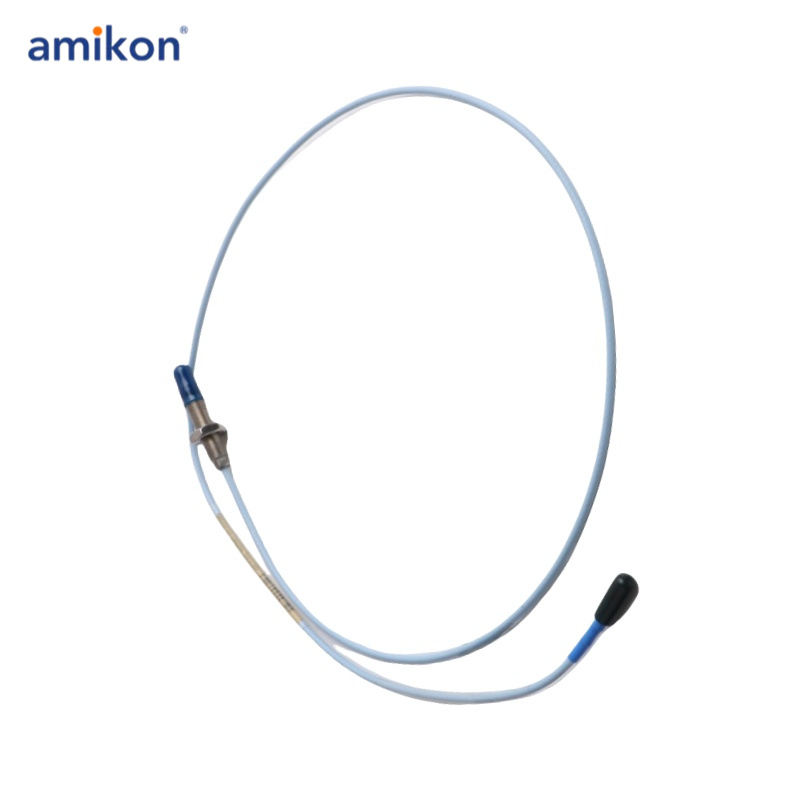

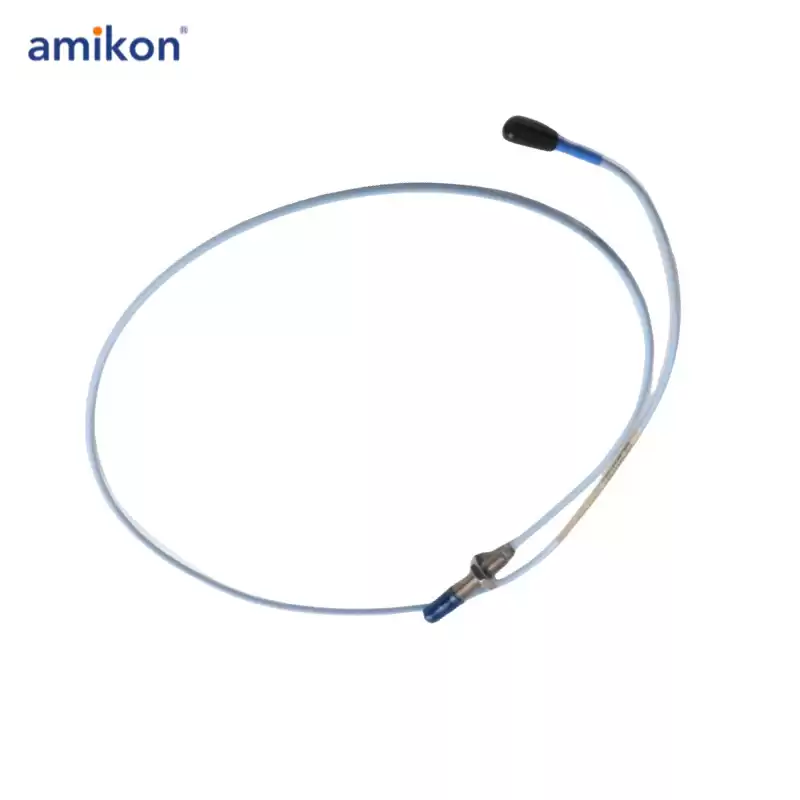

The 3300 XL 8 mm Proximity Transducer System (model 330103-00-04-10-02-00) includes a 3300 XL 8 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor Sensor. This advanced system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of measuring both static (position) and dynamic (vibration) values, making it ideal for a variety of applications. The primary uses of the system include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.


Designed for flexibility, the 3300 XL Proximitor Sensor can be mounted in high-density DIN rail installations or in a traditional panel mount configuration. It shares a 4-hole mounting "footprint" with older Proximitor Sensor designs, ensuring compatibility and ease of integration into existing setups.

Manufacturer : Bently Nevada
Product No. : 330103-00-04-10-02-00
Product type : 3300 XL 8 mm Proximity Probes
Made in U.S.A
00 - Unthreaded Length Option : 0.0 in
04 - Overall Case Length Option : 40mm
10 - Total Length Option : 1.0 metre (3.3 feet)
02 - Connector and Cable-Type Option: Miniature coaxial ClickLocTM connector, standard cable
00 - Agency Approval Option : Not required
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Weight : 0.423 Kg
