The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

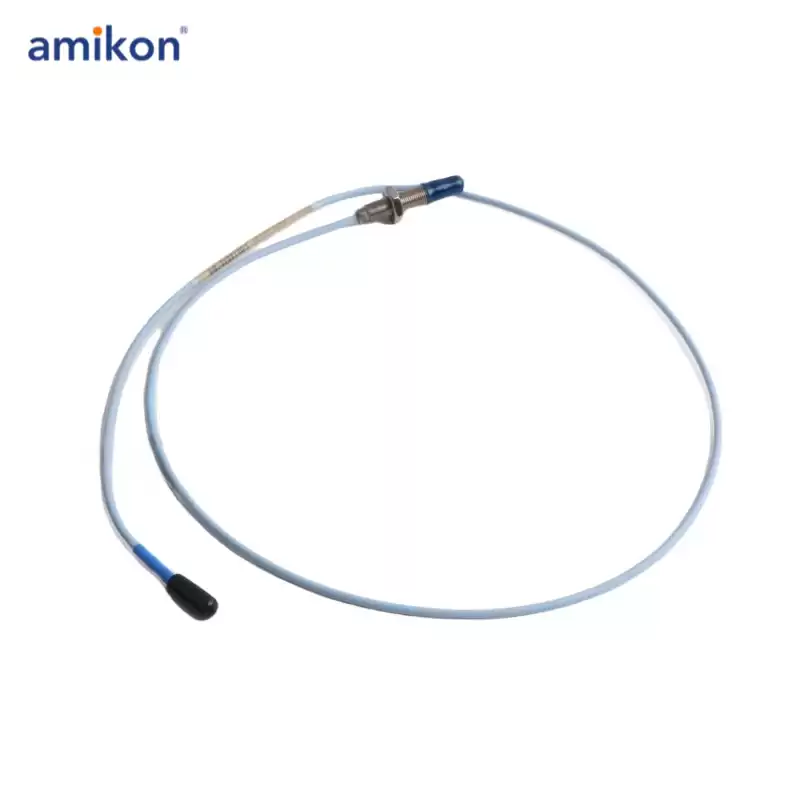

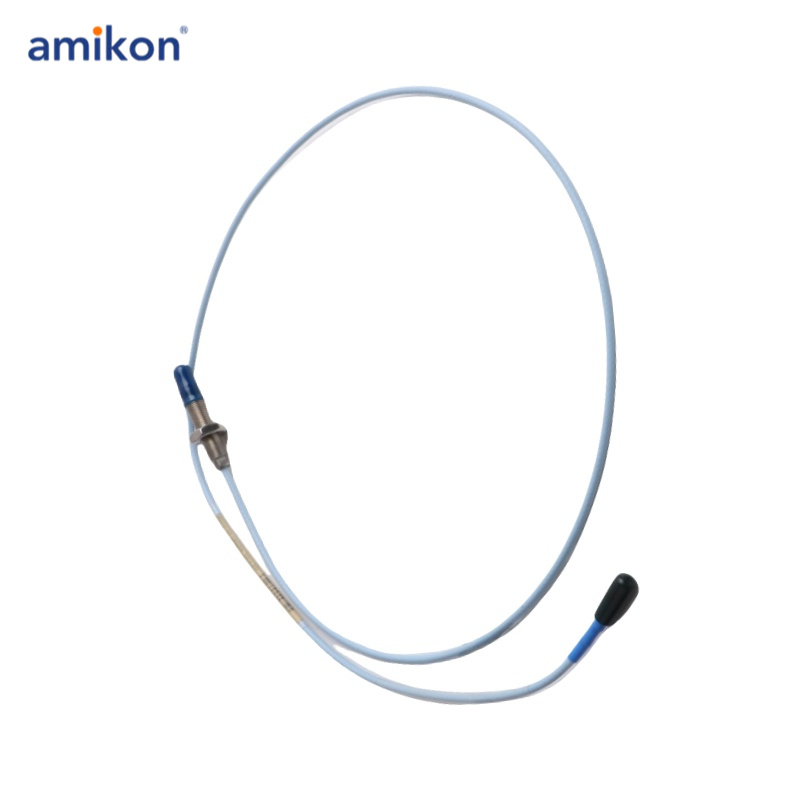

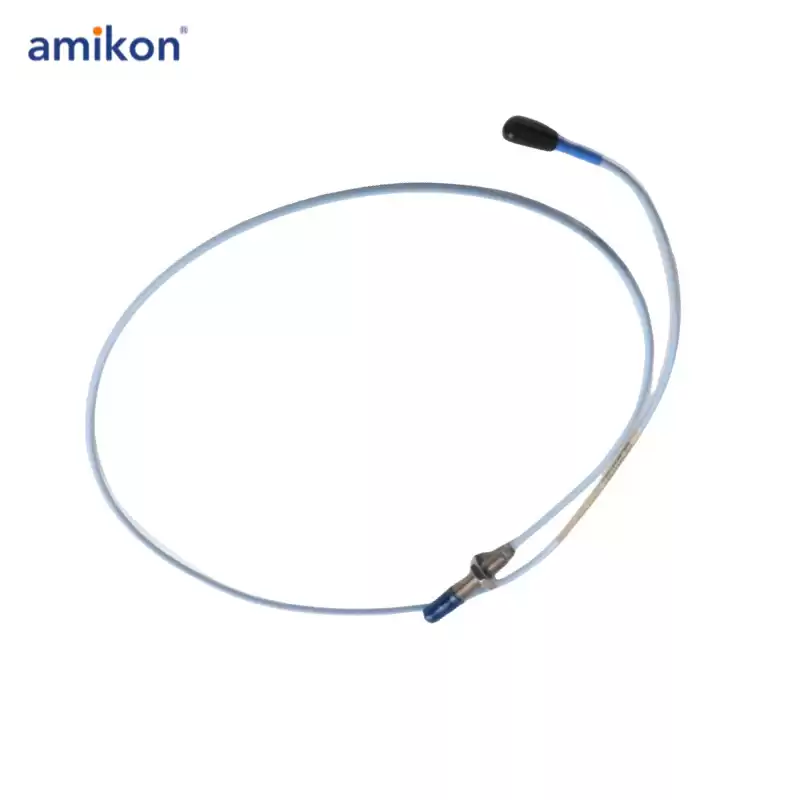

The 330103-00-04-10-02-00 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,
accuracy, and temperature stability. All 330103-00-04-10-02-00 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 330103-00-04-10-02-00 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
FAQ:
1. What is the 3300 XL 8 mm Proximity Transducer System used for?
The 3300 XL system is used for vibration and position monitoring of machines, particularly fluid-film bearing machines. It is also used for Keyphasor reference and speed measurements.
2. What components are included in the 3300 XL 8 mm system?
The system includes the 3300 XL 8 mm probe, 3300 XL extension cable, and 3300 XL Proximitor Sensor.
3. How does the system measure vibrations and position?
The system provides an output voltage proportional to the distance between the probe tip and the observed conductive surface. It measures both static (position) and dynamic (vibration) values.
