330103-00-04-10-02-CN
|
|
Dimensions ：
|
5.6cmx25.5cmx30.6cm
|
Weight：
|
4.95kg
|
|
Storage Temperature ：
|
-50°C to +250°C
|
Product Origin:
|
USA
|
|

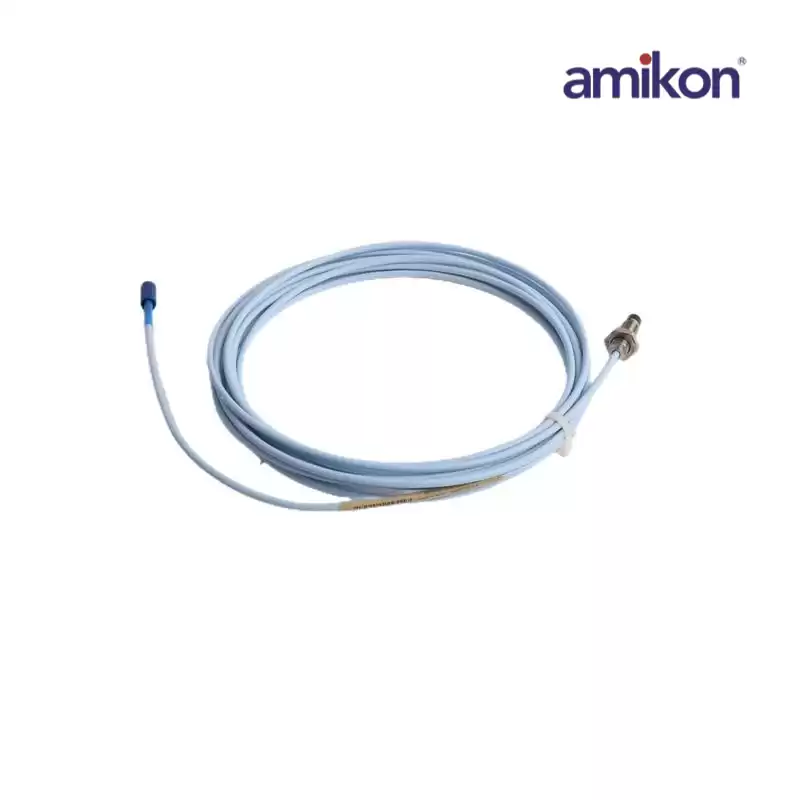

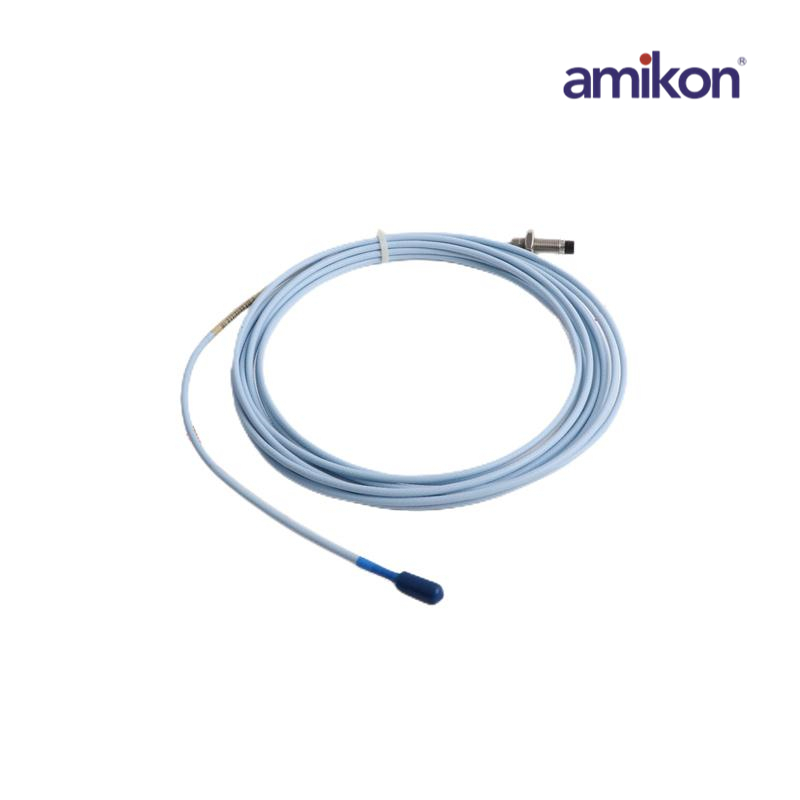

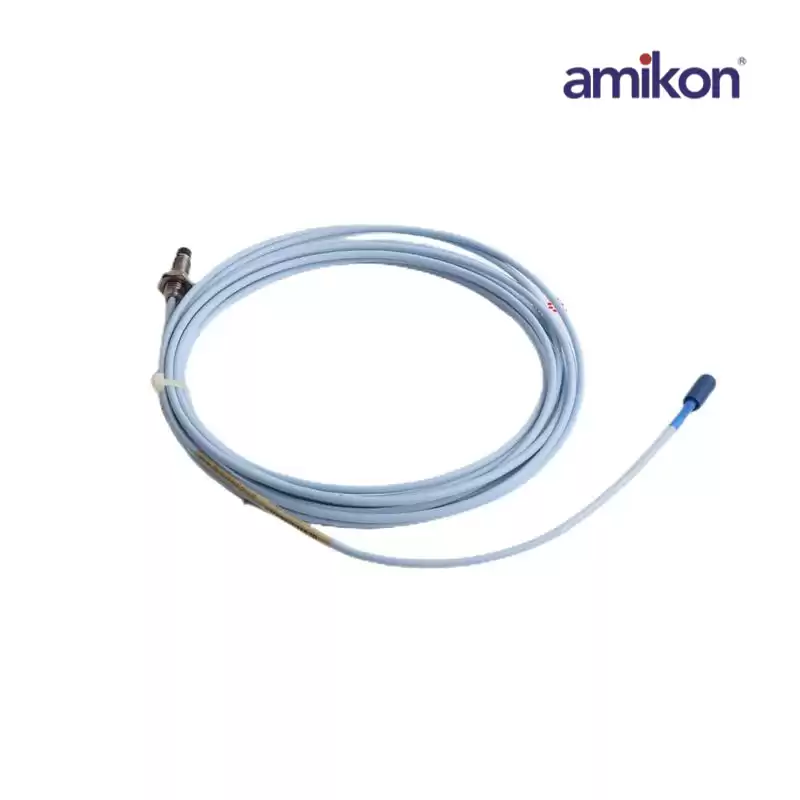

The 330103-00-04-10-02-CN is 3300 XL 8 mm Proximity Probes. The 3300 XL 8 mm Proximity Transducer System consists of : One 3300 XL 8 mm probe, One 3300 XL extension cable1 ,and One 3300 XL Proximitor Sensor2.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
|
