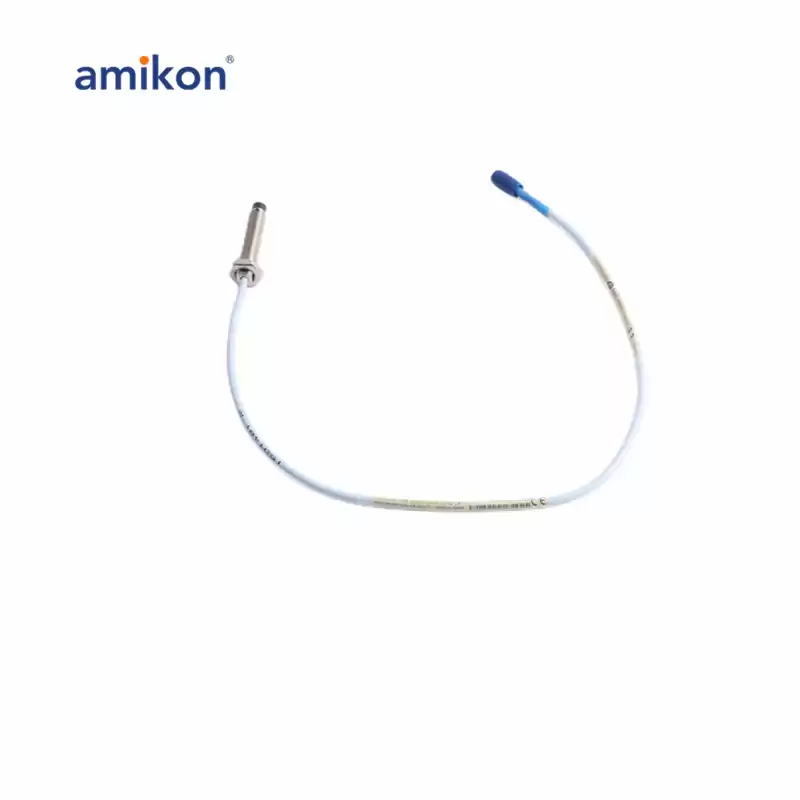

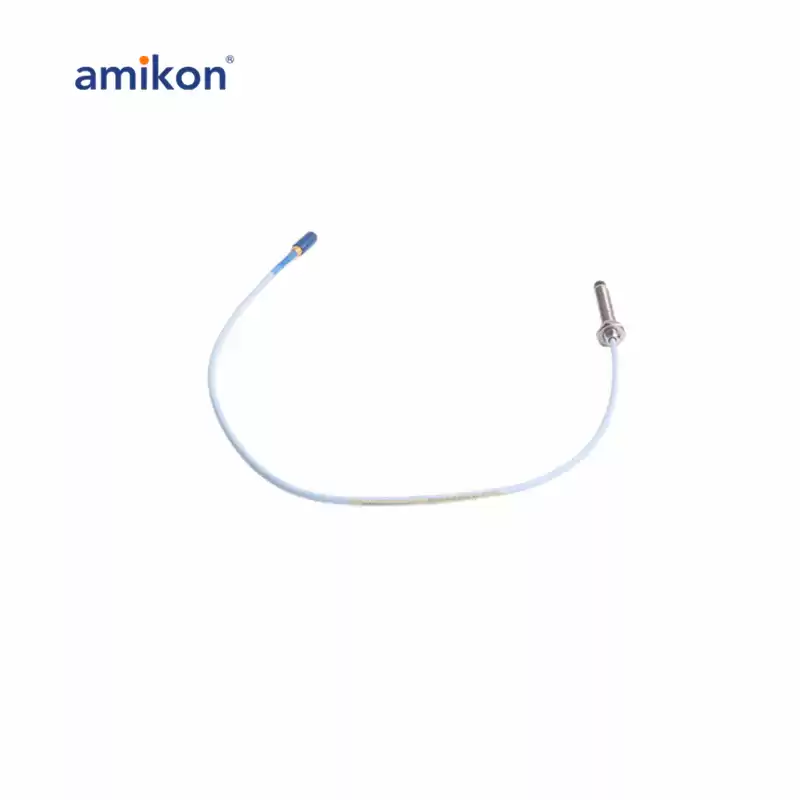

Part Number: 330103-00-05-05-02-00
Model: Proximity Probes
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
Model: 330103 - Proximity Probes
Unthreaded Length Option: 00 - 0 mm
Overall Case Length Option: 05 - 50 mm
Total Length Option: 05 - 0.5 metres (1.6 feet)
Connector and Cable Type Option: 02 - Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: CN - Not required
The 3300 XL 11 mm Proximity Transducer System consists of:
-3300 XL 11 mm probe
-3300 XL 11 mm extension cable
-3300 XL 11 mm Proximitor Sensor
The 330103-00-05-05-02-00 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
-Axial (thrust) position measurements
-Ramp differential expansion measurements on steam turbines
-Rod position or rod drop measurements on reciprocating compressors
-Tachometer and zero speed measurements
-Phase reference (Keyphasor) signals
The 330103-00-05-05-02-00 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
