The 3300 XL probes, extension cables, and proximity sensors are equipped with preservative-treated ClickLoc™ gold-plated copper connectors. These connectors are designed for easy use, as they automatically "lock" into place when the connector is inserted, with no special tools required for installation. A mechanical locking device ensures that connections remain secure, preventing them from becoming loose over time.
For enhanced durability and environmental protection, the 3300 XL 8mm probes and extension cables come with a joint protector that can be installed in the field if needed. It is recommended to route the cables through restraint conduits to protect them. Additionally, wet ring connectors and head protectors are advised for all installations to ensure long-lasting performance in challenging environments.

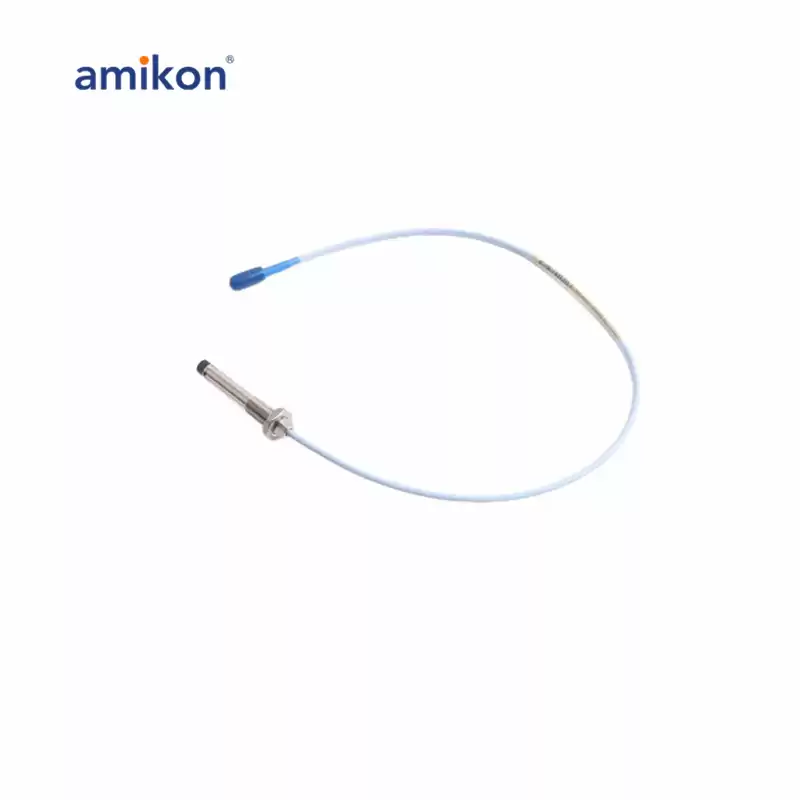

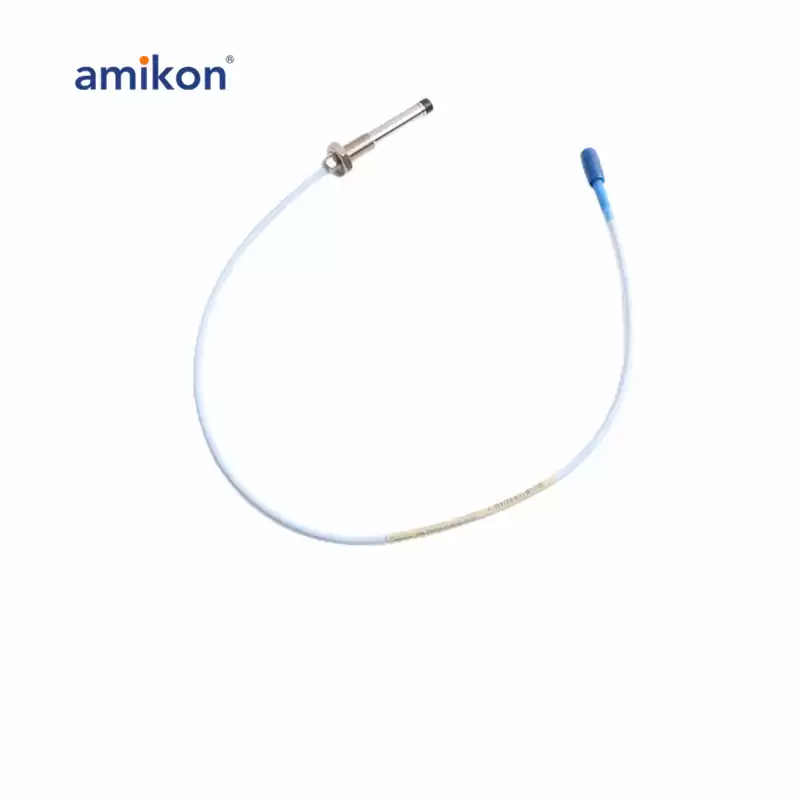

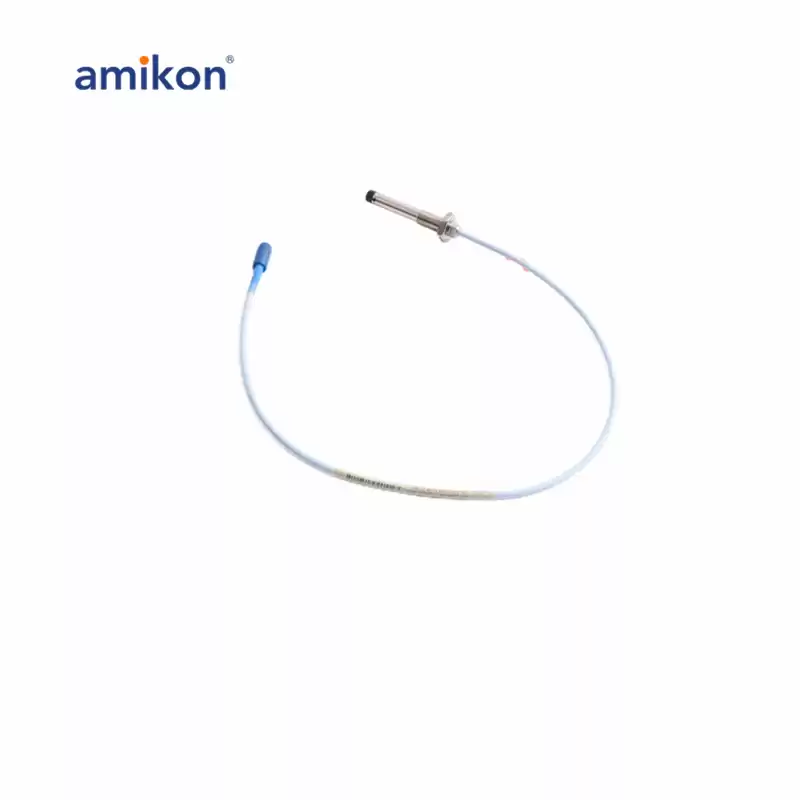

The 3300 XL 8 mm Proximity Transducer System consists of:
-One 3300 XL 8 mm probe,
-One 3300 XL extension cable, and
-One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s
primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API)
670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm
probe, for applications in which an 8 mm probe is too large for the available mounting space.
