Manufacturer : Bently Nevada
Product No. : 330103-00-05-10-02-00

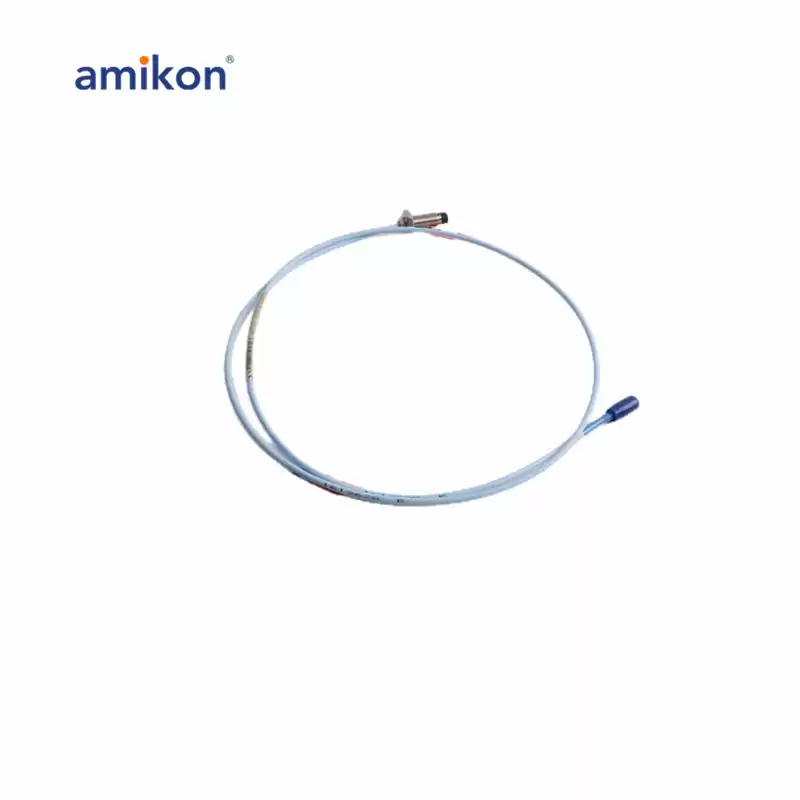

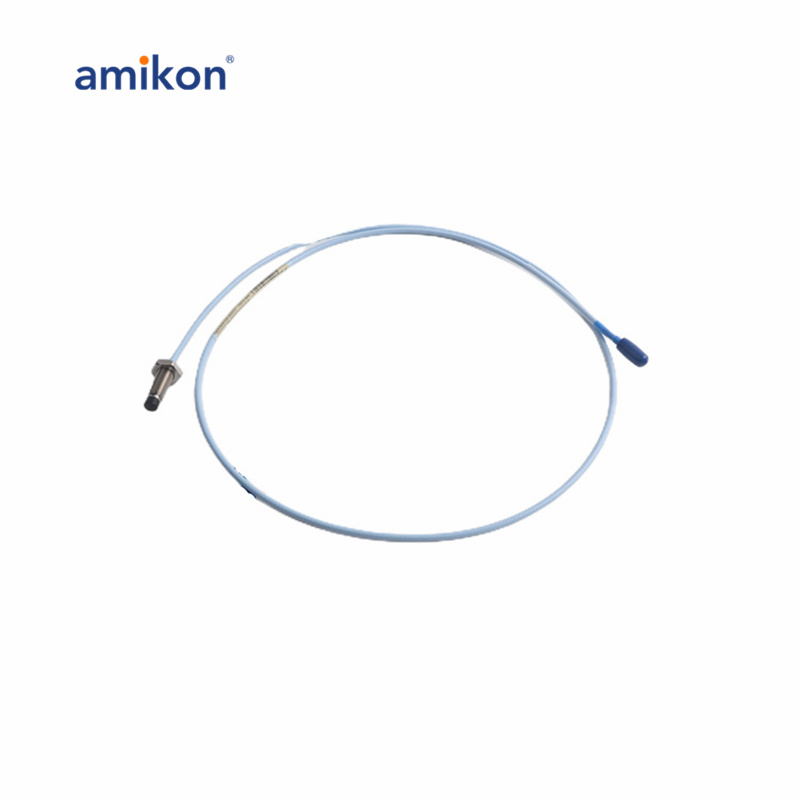

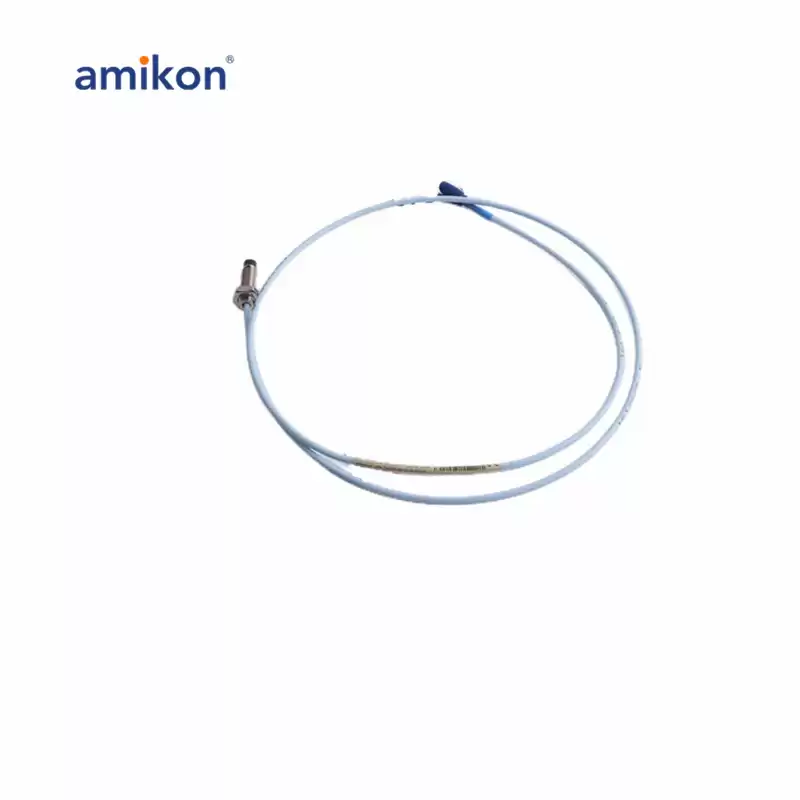

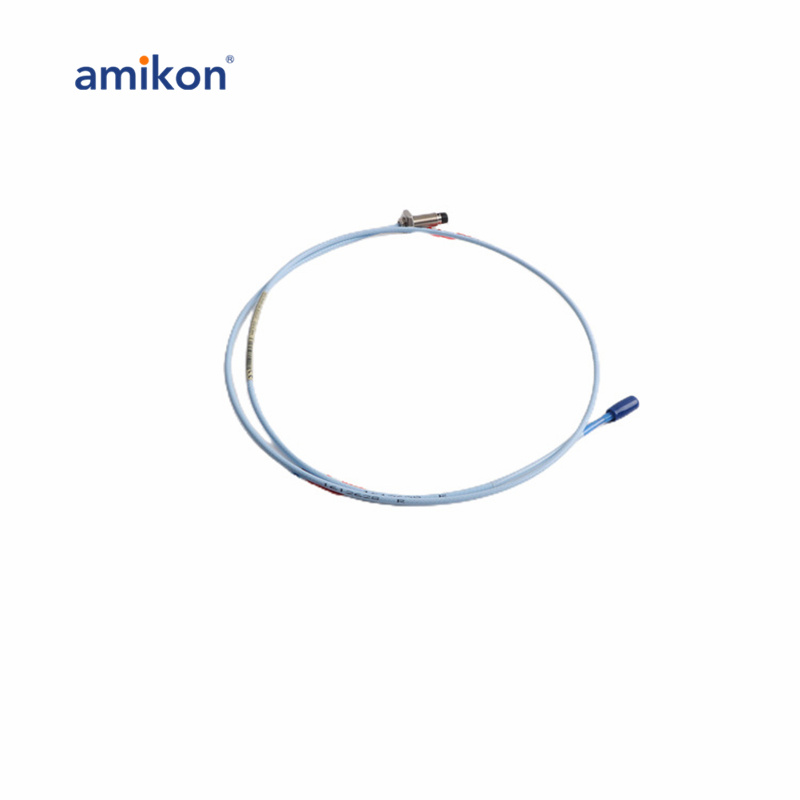

Product Type : 3300 XL 8 mm Proximity Probes
Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 05 = 50mm
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : 00 = Not required
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
The 3300 XL 8mm sensor system outputs a voltage signal proportional to the distance between the probe tip and the measured surface, enabling both static (position) and dynamic (vibration) measurements. It is primarily used for vibration and harmonic analysis in oil film bearing machinery, as well as for key phase and phase reference measurements.
330103-00-05-10-02-05 retains complete compatibility with the 3300 Series non-XL 5mm and 8mm sensor systems, ensuring seamless integration. For installations with limited space, the 3300 5mm probe is often preferred as a compact alternative to the 8mm probe.
Additionally, the 3300 XL system features SpringLoc terminal strips that require no special tools for expansion, eliminating the risk of loose connections and ensuring a more secure setup without the need for screw tightening.
