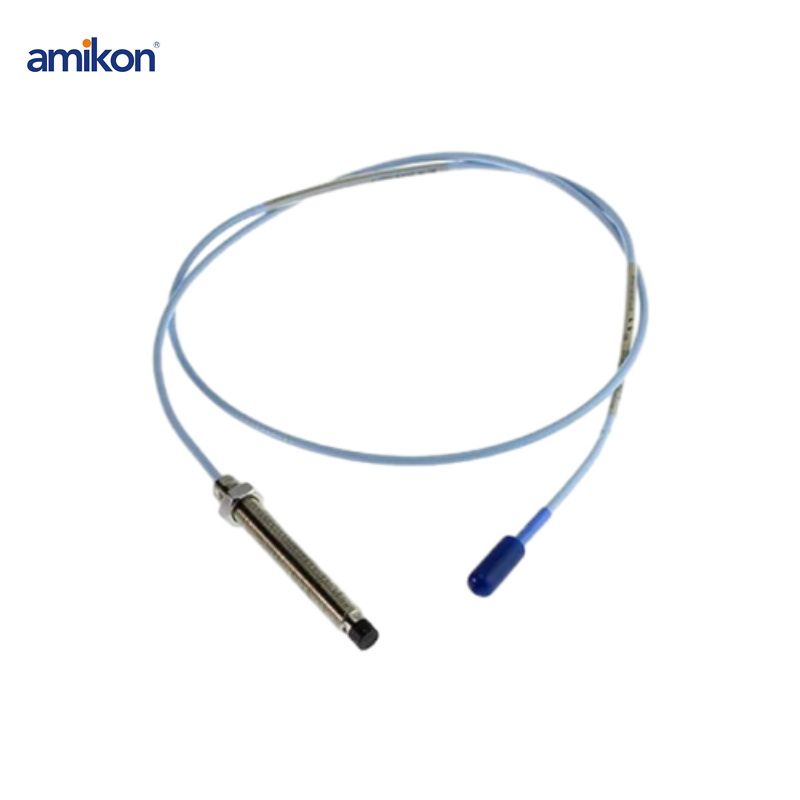

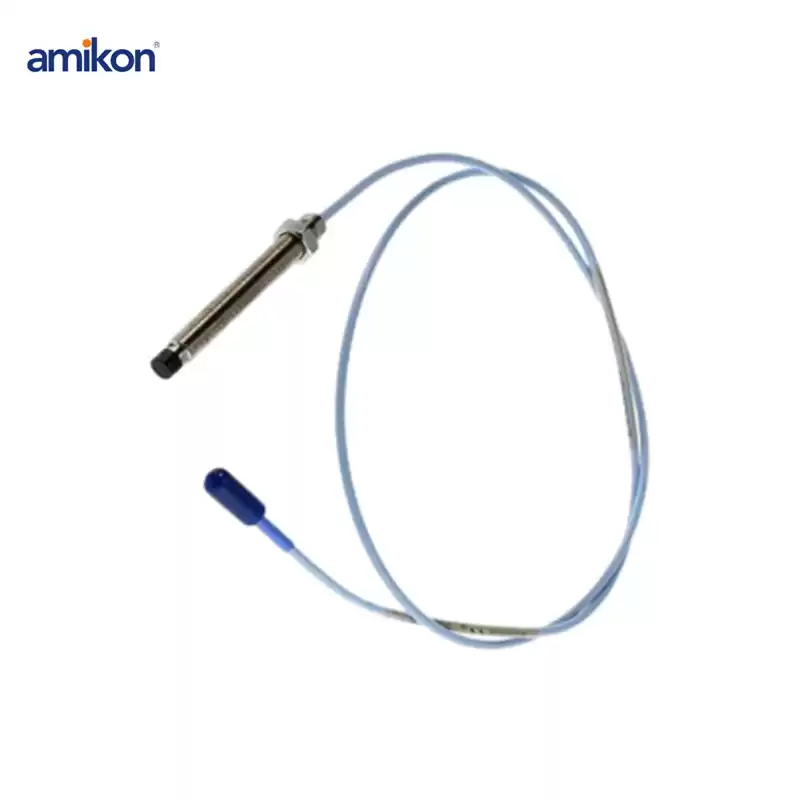

BENTLY NEVADA 330104-00-18-10-02-CN Proximity Probes
|
Model Number
|
330104-00-18-10-02-CN
|
Weight:
|
0.28 kg
|
|
Brand Name
|
BENTLY NEVADA
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1, and
One 3300 XL Proximitor* Sensor2.
The system provides an output voltage that is directly proportional to the
distance between the probe tip and the observed conductive surface and can
measure both static (position) and dynamic (vibration) values.
The system’s
primary applications are vibration and position measurements on fluid-film
bearing machines, as well as Keyphasor* reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy
current proximity transducer systems.
The standard 3300 XL 8 mm 5-metre
system also fully complies with the American Petroleum Institute’s (API) 670
Standard (4th Edition) for mechanical configuration, linear range, accuracy, and
temperature stability.
All 3300 XL 8 mm proximity transducer systems provide
this level of performance and support complete interchangeability of probes,
extension cables, and Proximitor sensors, eliminating the need to match or
bench calibrate individual components
Proximitor Sensor Input :
Accepts one non-contacting
3300-series 5 mm, 3300 8 mm or
3300 XL 8 mm Proximity Probe
and Extension Cable.
Power :
Requires -17.5 Vdc to -26 Vdc
without barriers at 12 mA
maximum consumption, -23 Vdc
to -26 Vdc with barriers.
Operation at a more positive
voltage than -23.5 Vdc can result
in reduced linear range.
Supply
Sensitivity:
Less than 2 mV change in output
voltage per volt change in input
voltage.
Output
Resistance :50
Download PDF File 3300 XL 8mm Proximity Transducer System
