Manufacturer : Bently Nevada
Product No. : 330104-00-08-05-02-05

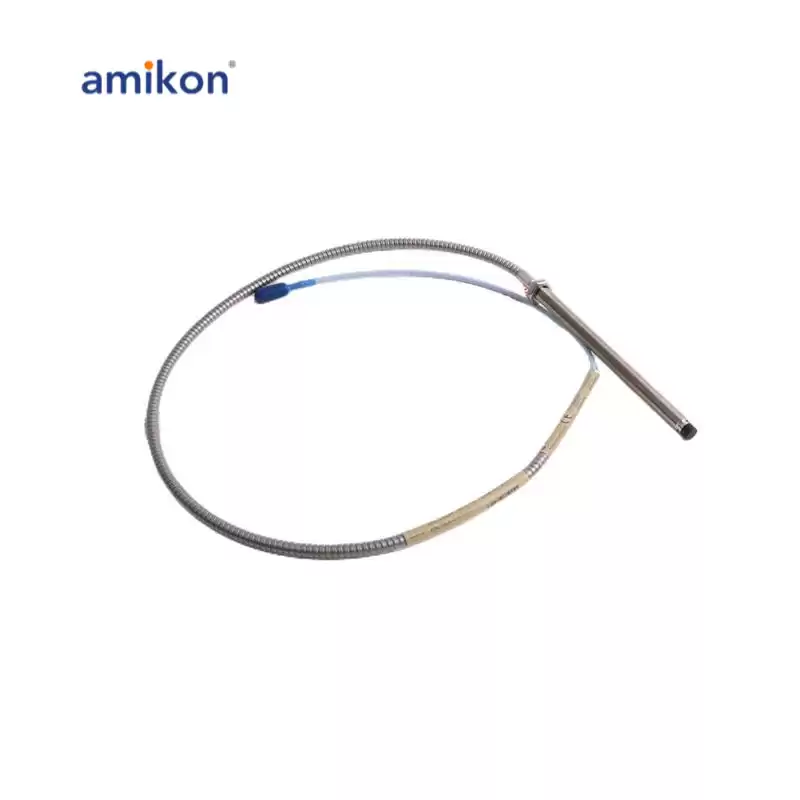

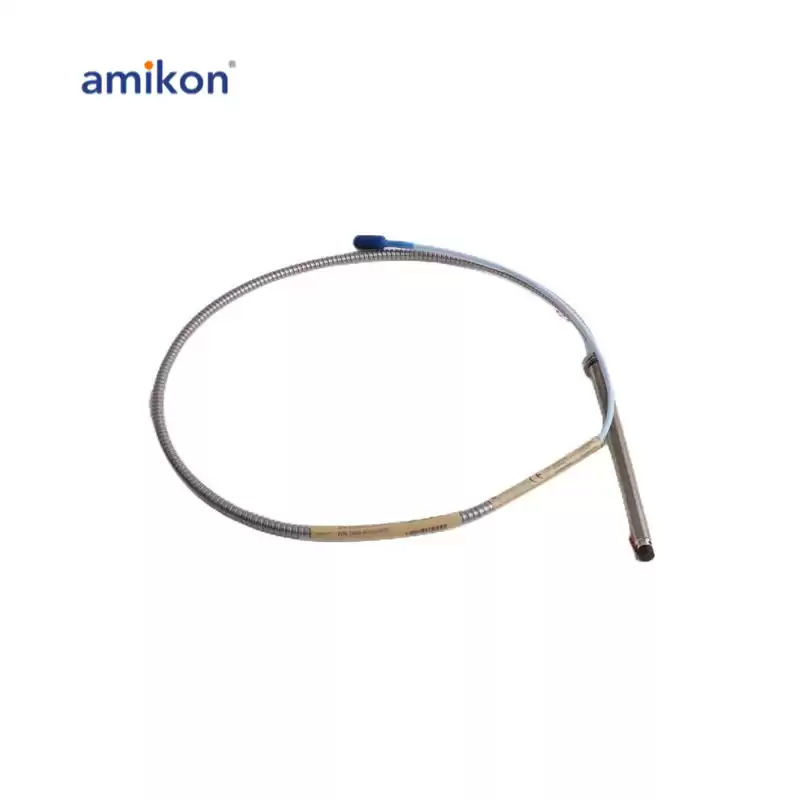

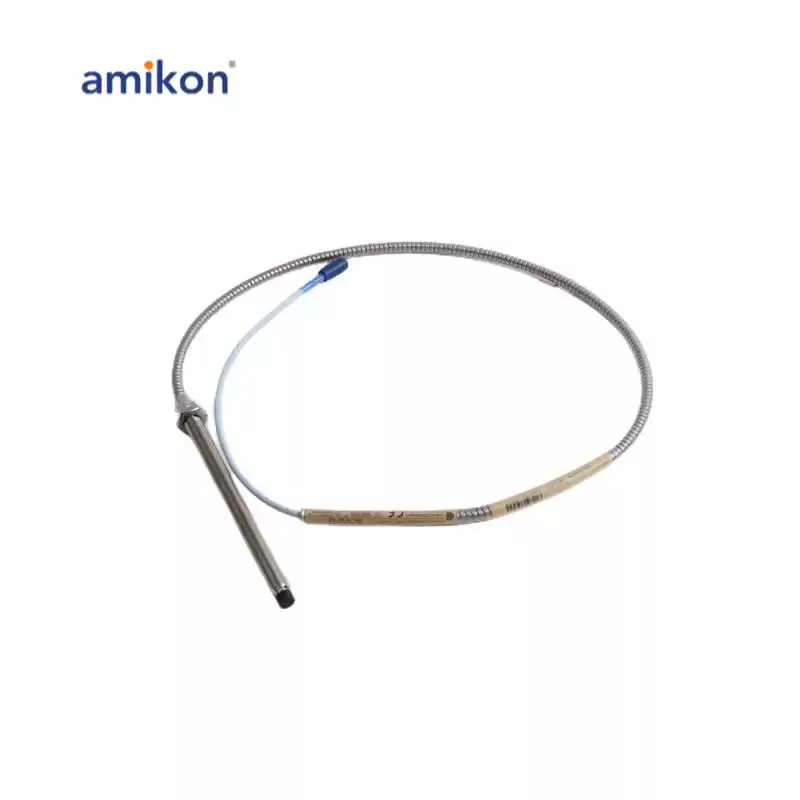

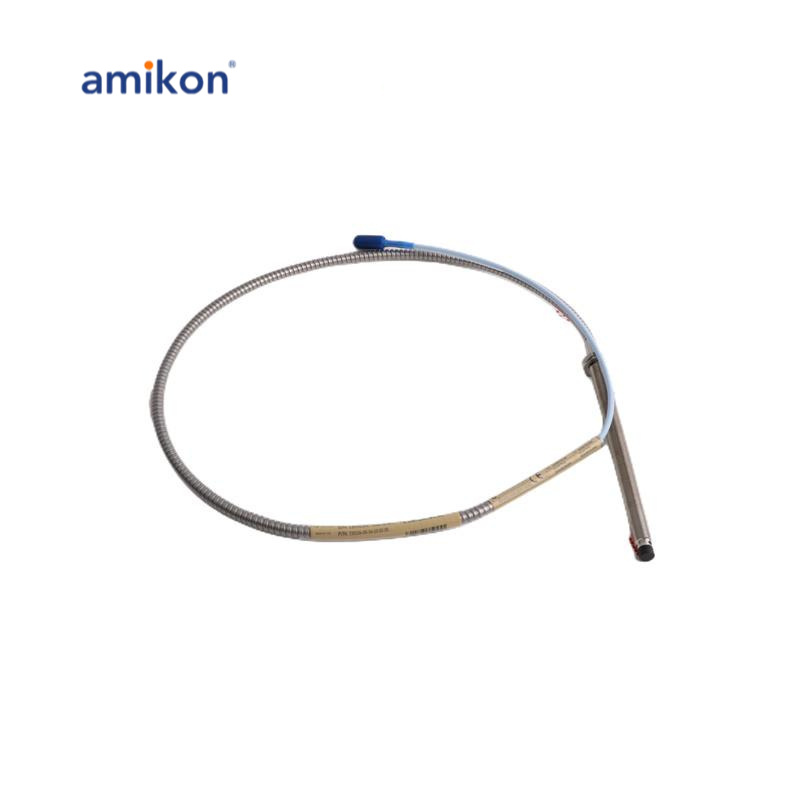

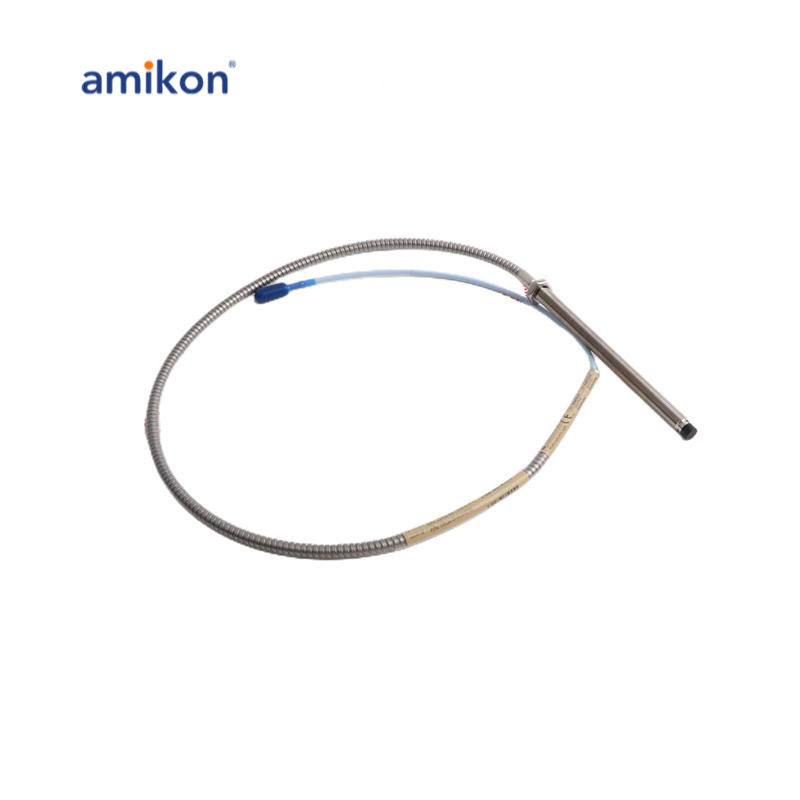

Product type : 3300 XL 8 mm Proximity Probes
Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 08 = 80mm
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material : Polyphenylene sulfide (PPS).
Probe Case Material : AISI 303 or 304 stainless steel (SST).
The 3300 XL probe and extension cable feature several design enhancements over previous models, providing improved durability and performance. One of the key innovations is the patented TipLoc molding method, which creates a stronger and more reliable bond between the probe tip and probe body, ensuring greater stability and performance under harsh conditions.
In addition, the probe's cable is equipped with a patented CableLoc design, which provides a pull strength of 330 N (75 lbf). This design ensures a secure connection between the probe cable and probe tip, reducing the risk of accidental disconnections during operation.
The 3300 XL probe, extension cable, and Proximitor sensor are also equipped with corrosion-resistant, gold-plated ClickLoc connectors, which enhance durability and provide reliable electrical connections in demanding environments.
With an operating temperature range from –35 °C to +120 °C and an output resistance of 48 Ω, the 3300 XL probe is well-suited for use in a wide range of industrial applications, offering reliable and consistent performance even in challenging conditions.
