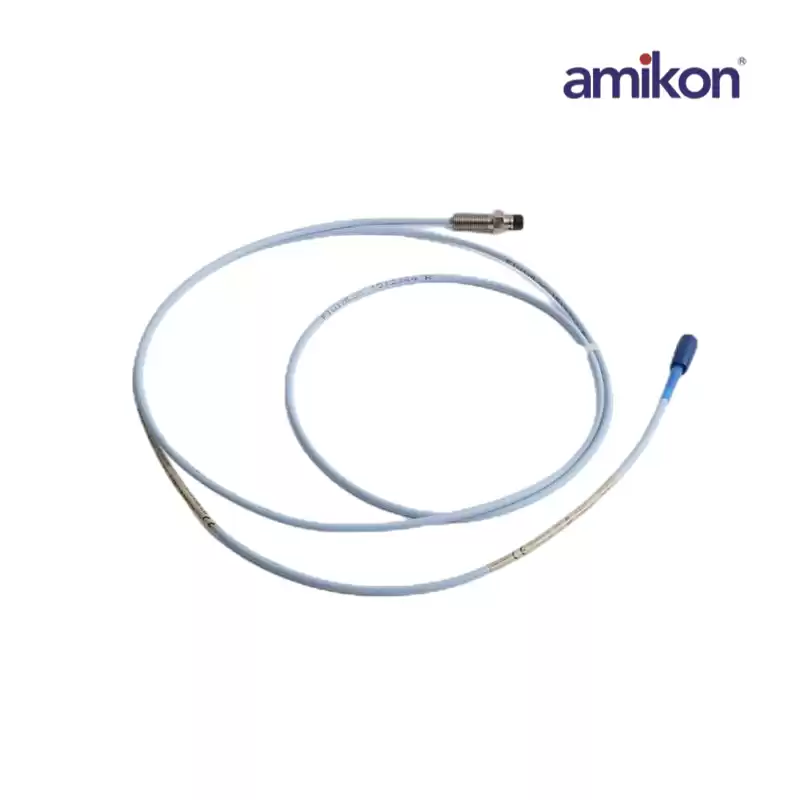

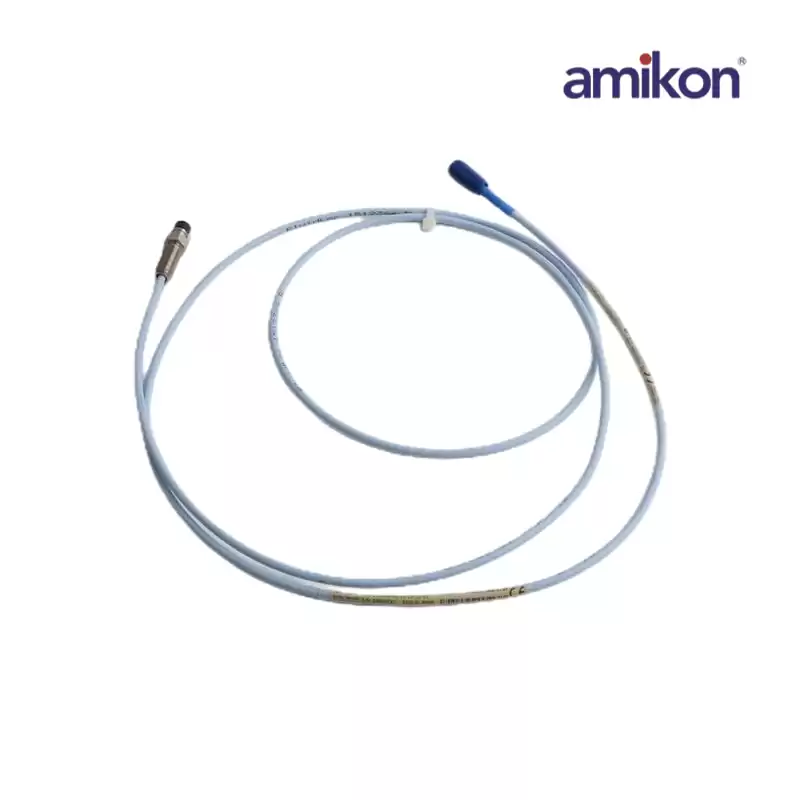

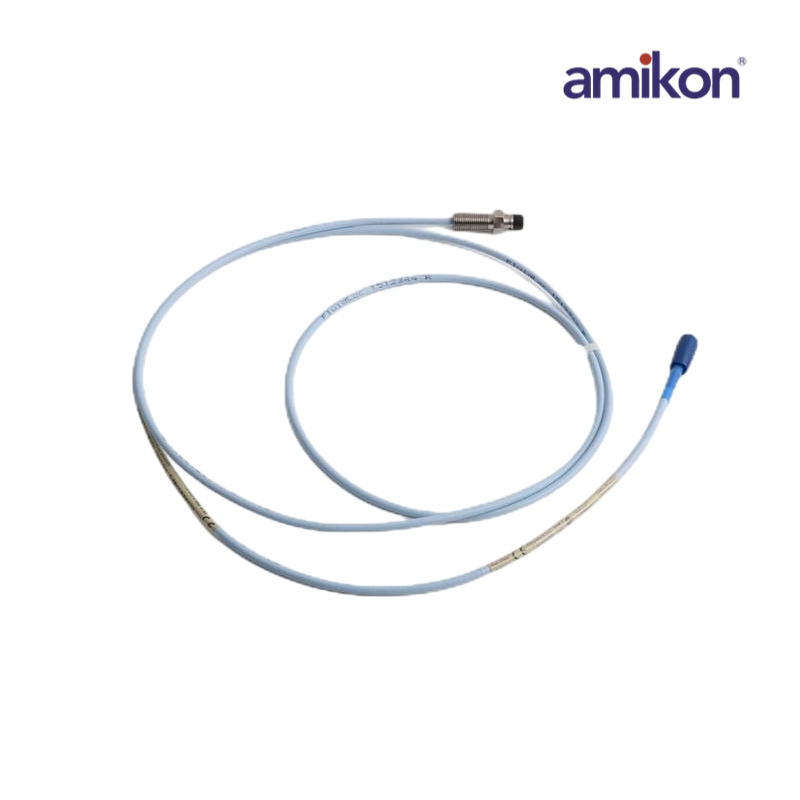

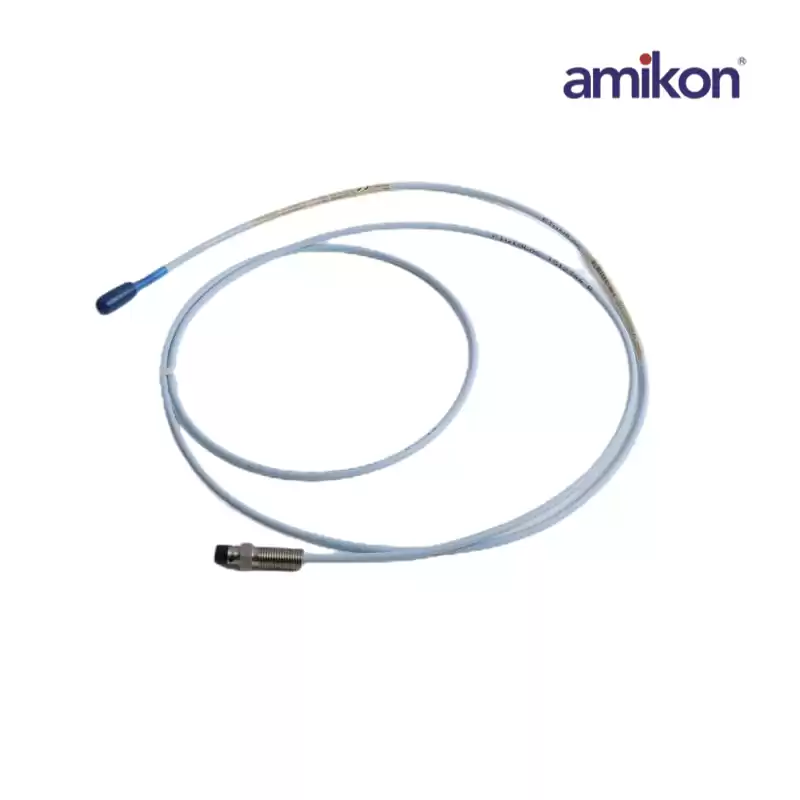

Bently Nevada 330105-02-12-10-02-CN 3300 XL 8 Mm Reverse Mount Probe

330105-02-12-10-02-CN

Dimensions ：

60.5cmx2.4cmx3.3cm

Weight：

0.25kg

Storage Temperature  ：

-40°C to +120°C

Product Origin:

USA

The 330105-02-12-10-02-CN is 3300 XL 8 mm Reverse Mount Probes. The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

The 3300 XL 8 mm Proximity Transducer System consists of : One 3300 XL 8 mm probe, One 3300 XL extension cable1 ,and One 3300 XL Proximitor Sensor2.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
