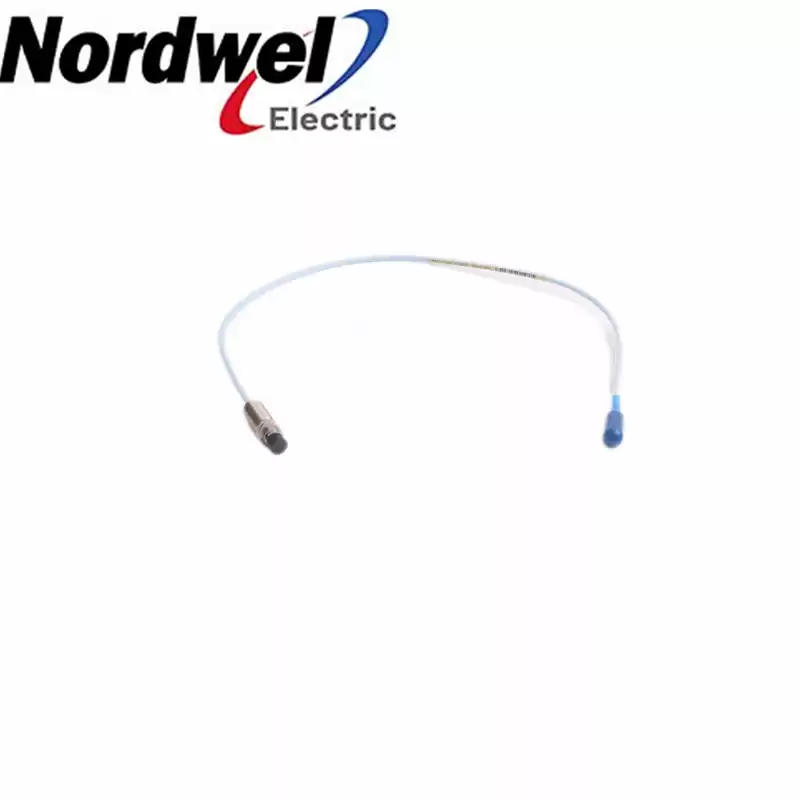

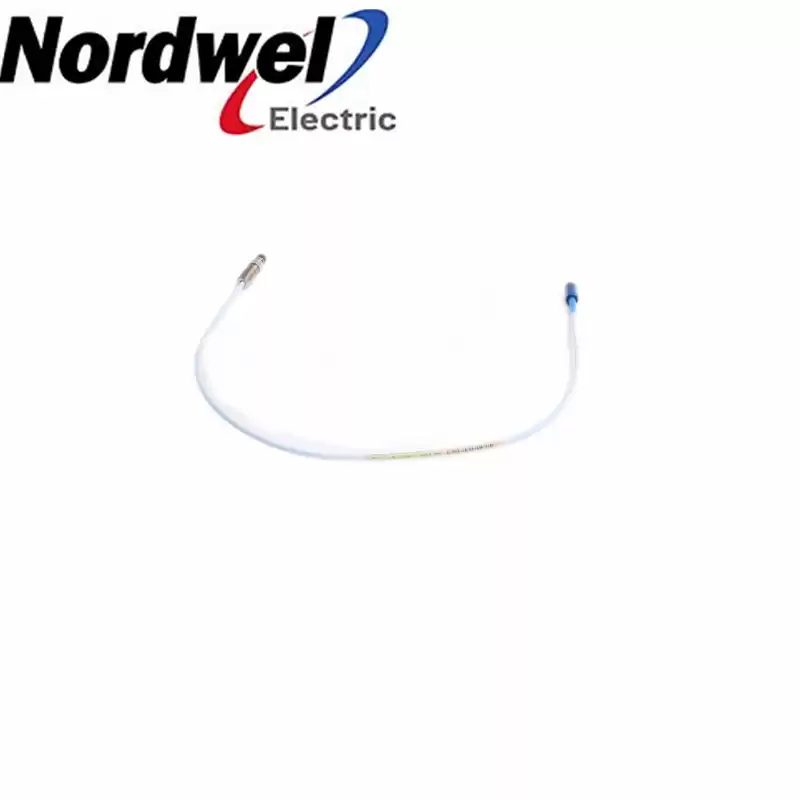

Bently Nevada | 330106-05-30-05-02-00 | Reverse Mount Probes
The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe,
one 3300 XL extension cable, and one 3300 XL Proximitor Sensor.
The system provides an output voltage that is directly proportional to the distance between the
probe tip and the observed conductive surface and can measure both static (position) and
dynamic (vibration) values. The system's primary applications are vibration and position measurements
on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute's
(API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or
bench calibrate individual components.
