The 3300 XL probe and extension cable offer several improvements over previous designs. The patented TipLoc molding method creates a stronger bond between the probe tip and the probe body, enhancing durability. Additionally, the probe’s cable features the patented CableLoc design, which provides 330 N (75 lbf) pull strength for a more secure attachment of the cable to the probe tip. The 3300 XL Proximitor Sensor also boasts improved RFI/EMI immunity, meeting European CE mark approvals without the need for special shielded conduit or metallic housings. This results in lower installation costs and complexity, allowing for installation in fiberglass housings without interference from nearby radio frequency signals.
SPECIFICATIONS
Part Number: 330130-070-00-CN
Manufacturer: Bently Nevada

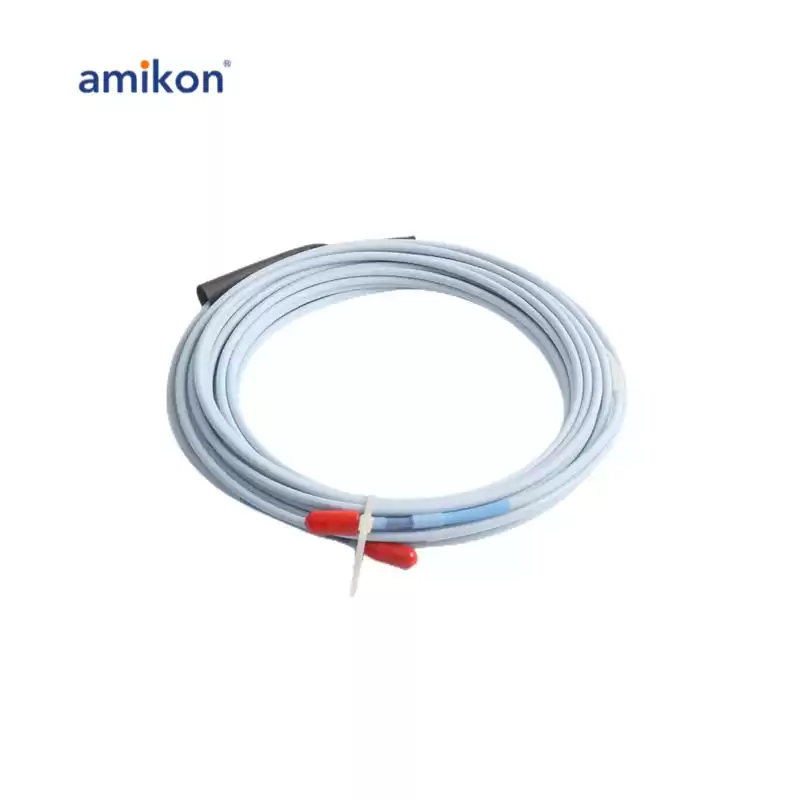

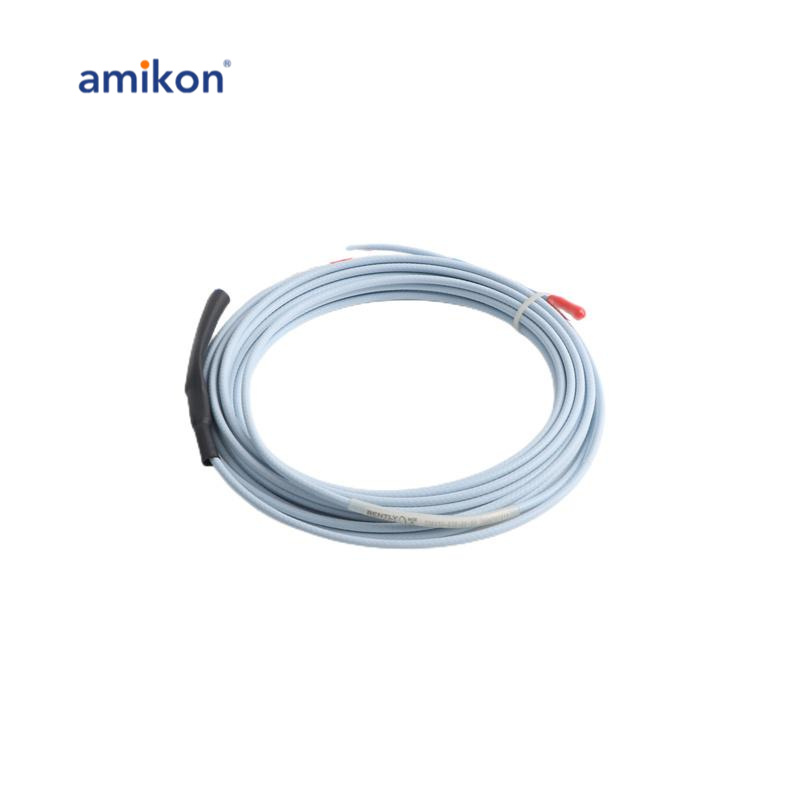

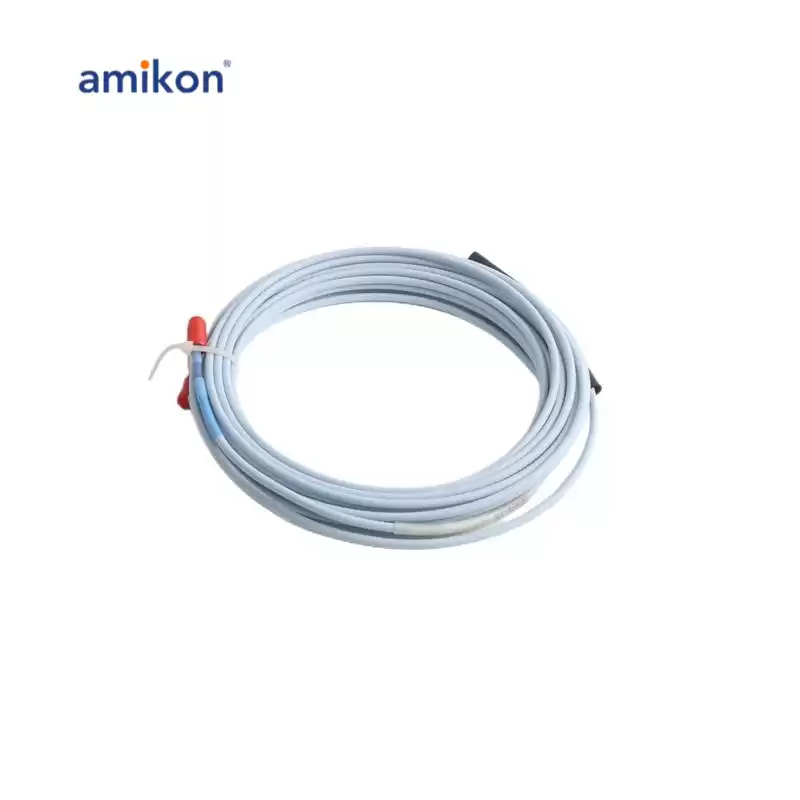

Product Type: 3300 XL Standard Extension Cable
Availability: In Stock
Country of Origin: United States (USA)
330130-070-00-CN Features
The 3300 XL 8 mm system is the most sophisticated among our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also completely conforms with the API 670 Standard in terms of mechanical configuration, linear range, accuracy, and temperature stability.
This level of performance is provided by all 3300 XL 8 mm proximity transducer systems, which also offer total interchangeability of probes, extension cables, and Proximitor sensors, removing the need to match or bench calibrate individual components.
Each component of the 3300 XL 8 mm Transducer System is backward compatible and interchangeable4 with nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, which is useful in applications where an 8 mm probe would be too big for the limited mounting area.
330130-070-01-05 Configuration
Cable Length: 7 meters
Connector Protector and Cable Option: Standard Cable
Agency Approval Option: Multiple Approvals
