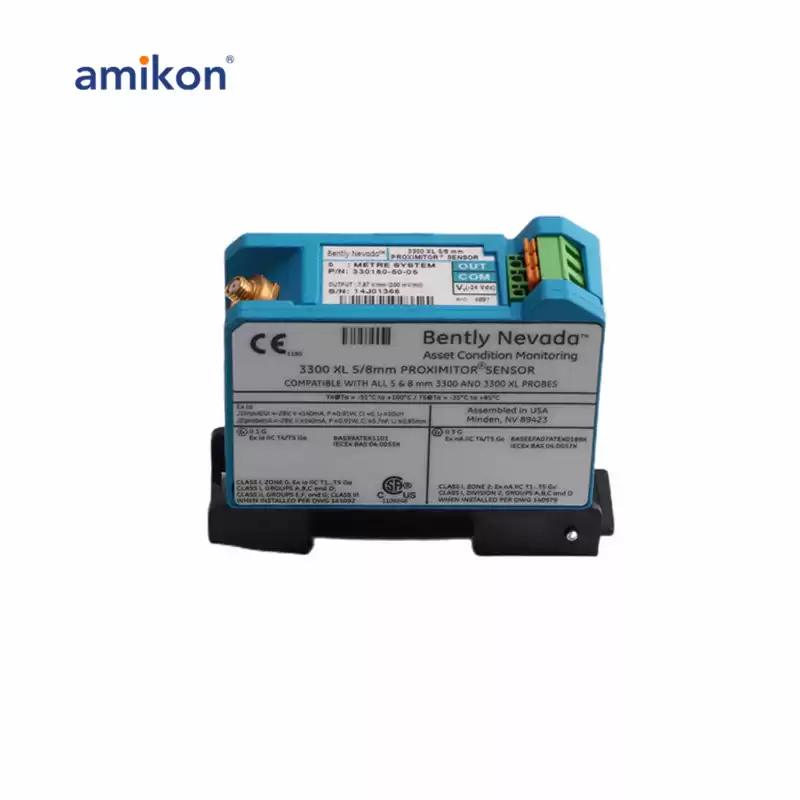

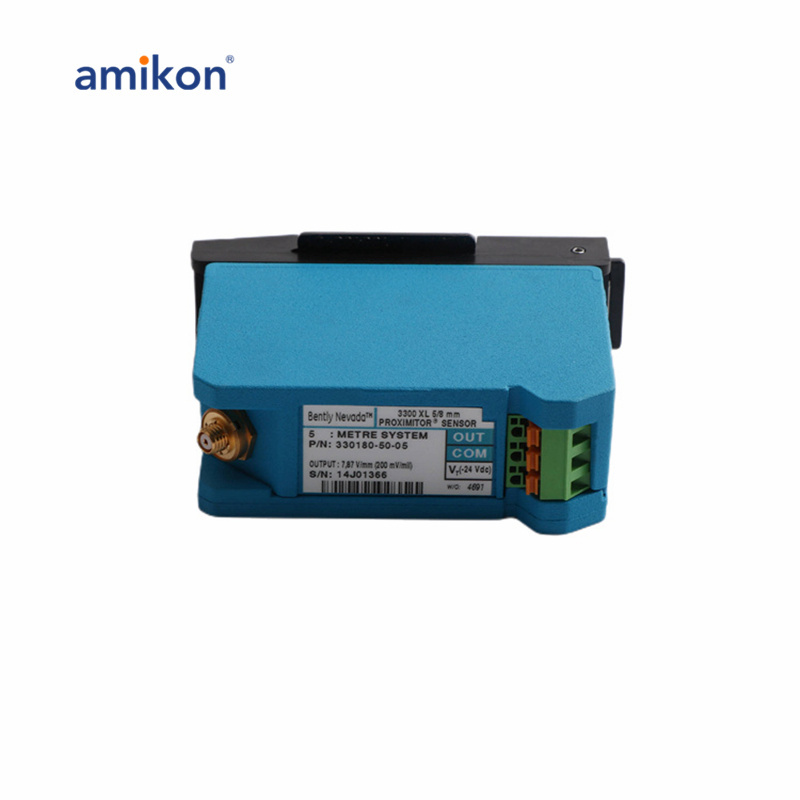

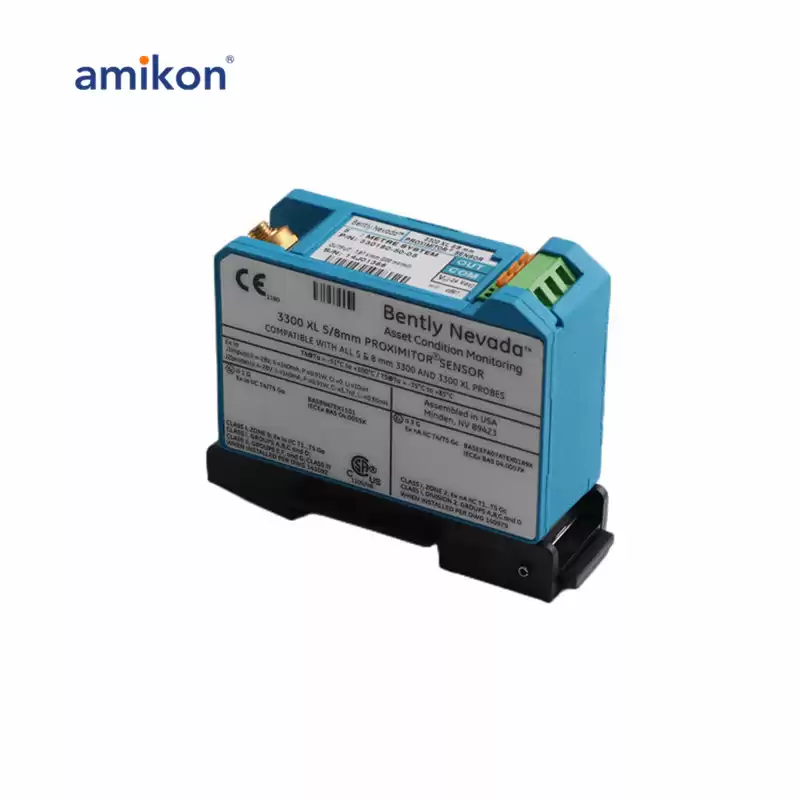

Bently Nevada 330180-50-05 3300xl 5MM Metre Proximity Sensor

Brand new and original sealed//Same Day Shipment

  • Warranty PeriodOne Year Warranty
  • Dimensions8.7x3.5x7cm
  • Weight0.22kg
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
SPECIFICATIONS
Part Number: 330180-50-05
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: 5/8 mm Proximitor Sensor
Series: Bently Nevada 3300
Availability: In Stock
Total Length: 5 Meters (System)
Mounting Option: Panel Mount
Product Family: 3300 XL, 3300XL, 3300-XL

330180-50-05 is a 5/8 mm Proximitor Sensor manufactured by Bently Nevada. It is a part of the 3300 Series used in the proximity transducer system. All 3300 and 3300 XL probes in the 5 and 8 mm sizes are compatible with the Bently 3300 XL 5/8mm Proximitor Sensor. There are many upgrades over earlier models in the 3300 XL Proximitor Sensor. Because of its physical packaging, you can use it in DINrail setups with high density. The sensor can also be mounted using a conventional panel mount setup, where it has the same 4-hole mounting "footprint" as earlier Proximitor Sensor models. It is not necessary to use separate isolator plates because both mounting bases provide electrical isolation.

Functional Description
The 3300 XL 8mm Proximity Transducer System from Bently Nevada is made up of a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor Sensor. Both static (position) and dynamic (vibration) values can be measured by the system, which outputs a voltage that is directly proportional to the distance between the probe tip and the detected conductive surface. Keyphasor reference and speed measurements, as well as vibration and position measurements on fluid-film bearing machines, are the system's main applications.

Product Attributes
Perfect for Fluid-Film Bearing Machines, Speed Measurements, and Compression Systems
Applications for Extended Temperature Range
Complete Unit and Cabling Interchangeability
Compatibility with Transducer System Components from Other Non-3300 XL Series
330180-50-05 Features
The standard API 670 Standard (4th Edition) is fully complied with by the mechanical design, linear range, accuracy, and temperature stability of the 3300 XL 8 mm 5-meter system. It is not necessary to match or bench calibrate individual components because all 3300 XL 8 mm proximity transducer systems offer this level of performance and support full interchangeability of probes, extension cables, and Proximitor sensors.
Each component of the 3300 XL 8 mm transducer system is retro compatible and interchangeable with non-XL 5 mm and 8 mm transducer system components from the 3300 series. The 3300 5 mm probe is compatible with this system and can be used in applications where an 8 mm probe would be too large for the mounting space.
