330180-51-05
|Rated 5.0
Specifications
Part Number: 330180-51-05
Manufacturer: Bently Nevada
Country of Manufacture: United States(USA)
Product Type: Proximitor Sensor
Series: Bently Nevada 3300
Operating Temperature : -51 degrees Celsius to +100 degrees Celsius
Storage Temperature : -51 degrees Celsius to +105 degrees Celsius
Weight : 0.246 kg

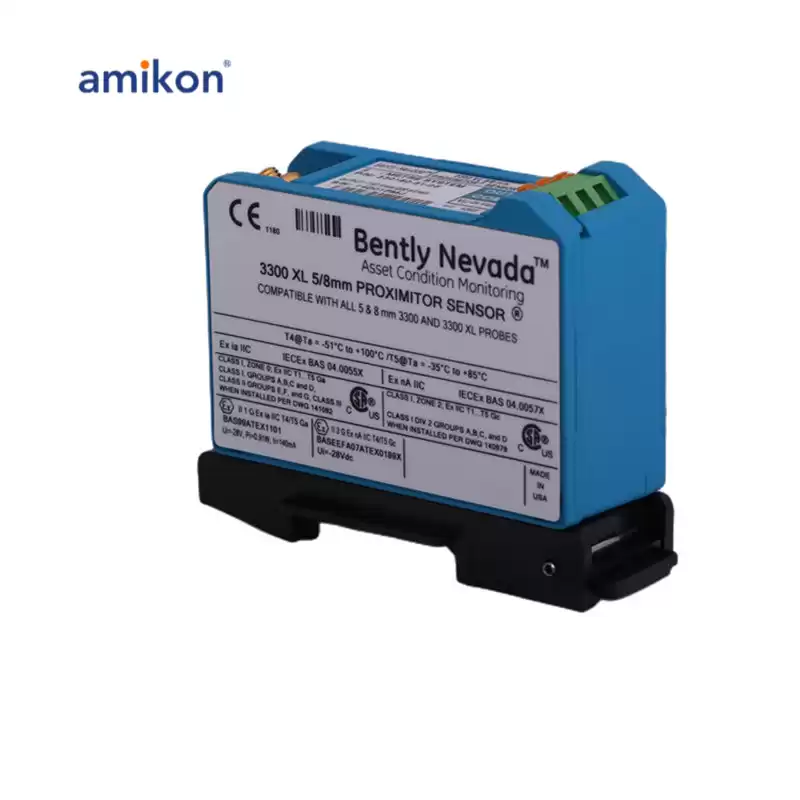

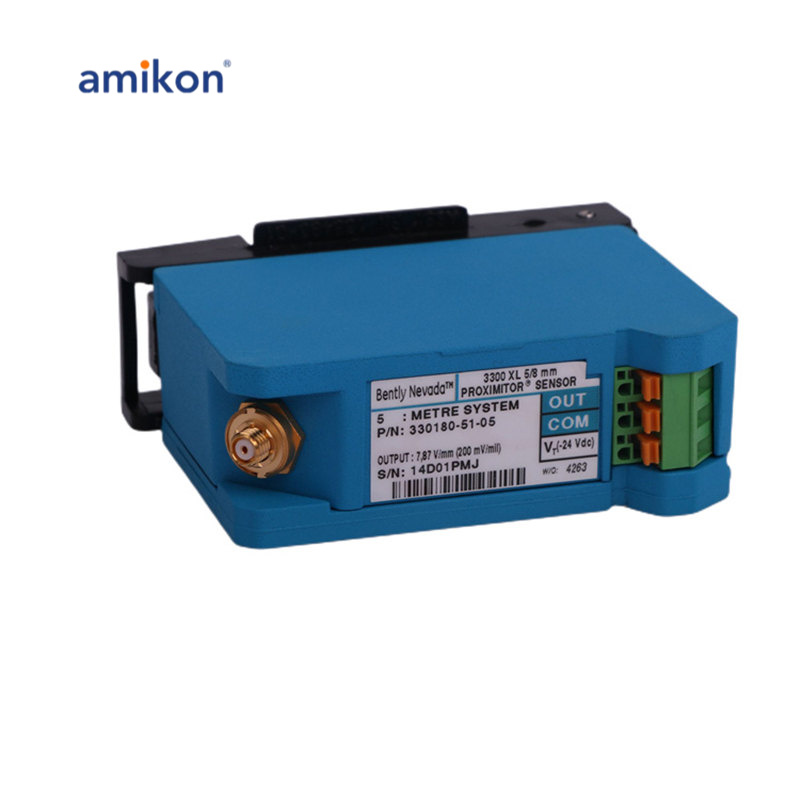

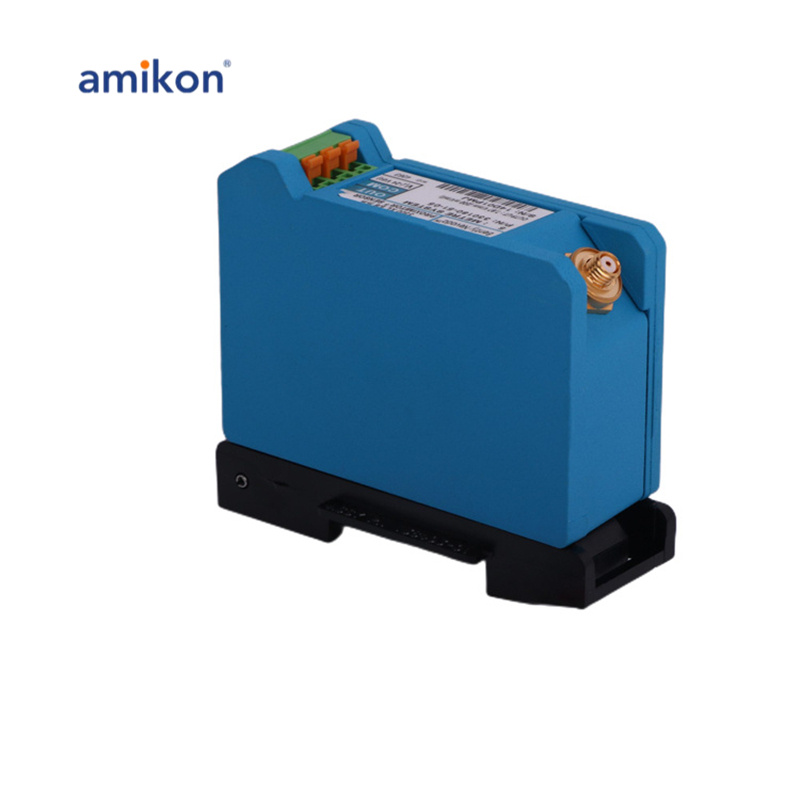

330180-51-05 is a Proximitor Sensor developed by Bently Nevada. It is a part of Bently Nevada 3300 series. The GE / Bently 3300 XL 5/8mm Proximitor Sensor is compatible with all 3300 and 3300 XL probes measuring 5 and 8 mm. The 3300 XL Proximitor Sensor improves on prior designs in a number of ways. Because to its physical packaging, it can be used in high-density DINrail systems. The sensor can also be mounted in a classic panel mount arrangement, where it has the same 4-hole mounting "footprint" as prior Proximitor Sensor designs. Either option's mounting base provides electrical isolation and removes the need for additional isolator plates.
330180-51-05 Functional Description
The 3300 System is designed to fully meet the requirements of the American Petroleum Institute's API 670 standard for such systems, and it provides continuous, online monitoring suitable for machinery protection applications.
The system's highly modular design includes an Instrument Rack, an alternating current or direct current power supply, a System Monitor, and one or more monitor modules selected to provide the required monitoring functionality. Because of this modular design, the 3300 System is versatile, expandable, and cost-effective as your monitoring needs evolve.
