Product Details

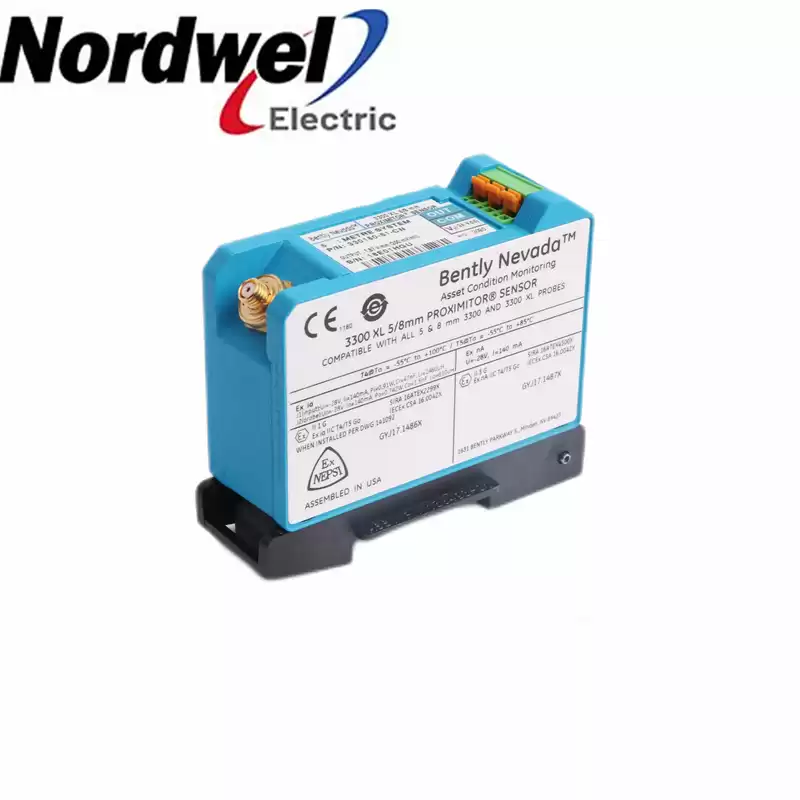

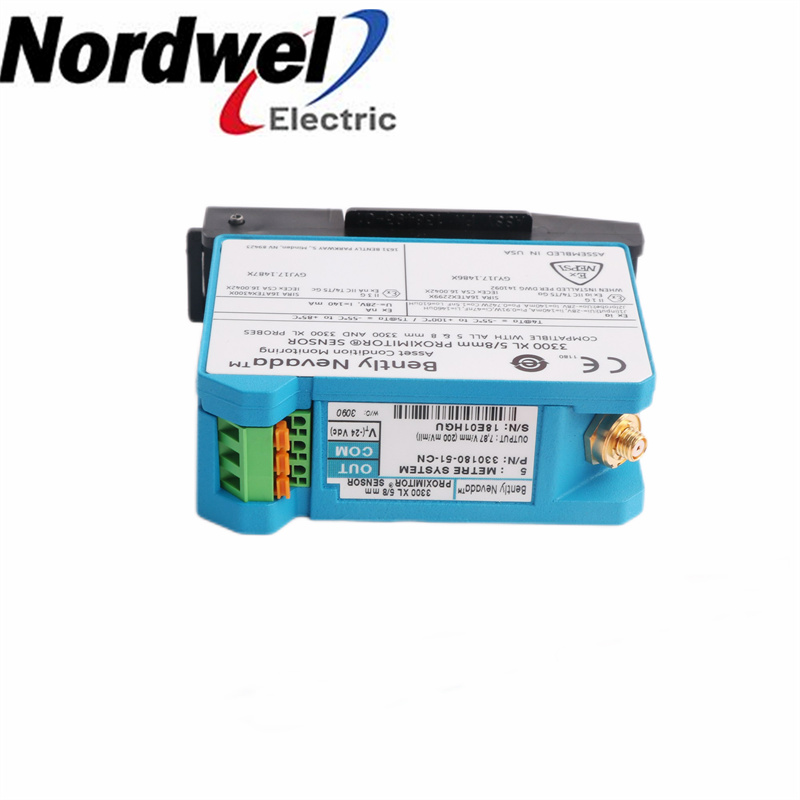

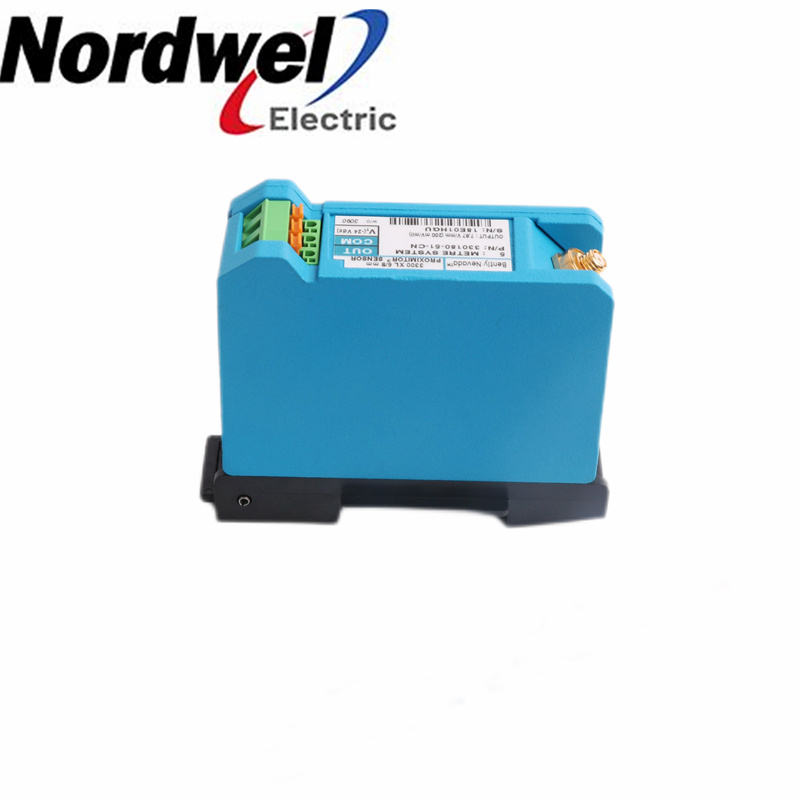

The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm
probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an
output voltage that is directly proportional to the distance between the probe tip and the observed
conductive surface and can measure both static (position) and dynamic (vibration) values.
The system's primary applications are vibration and position measurements on fluid-film bearing machines,
as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter
system also fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition)
for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
