Proximitor® Sensor Input : Accepts one noncontacting 3300- series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Proximitor® Sensor Material : A308 aluminum
|
|
Dimensions ：
|
7.9x6.2x6.3cm
|
Weight：
|
0.25kg
|
|
Power Consumption：
|
6.05 watts typical
|
Humidity：
|
95%, noncondensing
|
|
Storage Temperature ：
|
-40°C to +105°C
|
Operating Temperature：
|
-0°C to +45°C
|
|

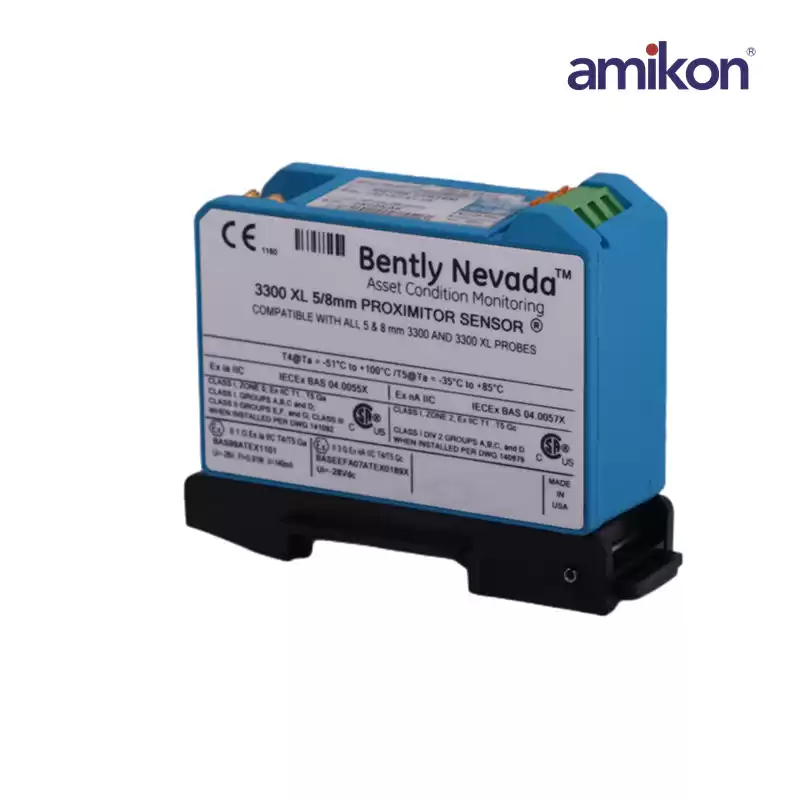

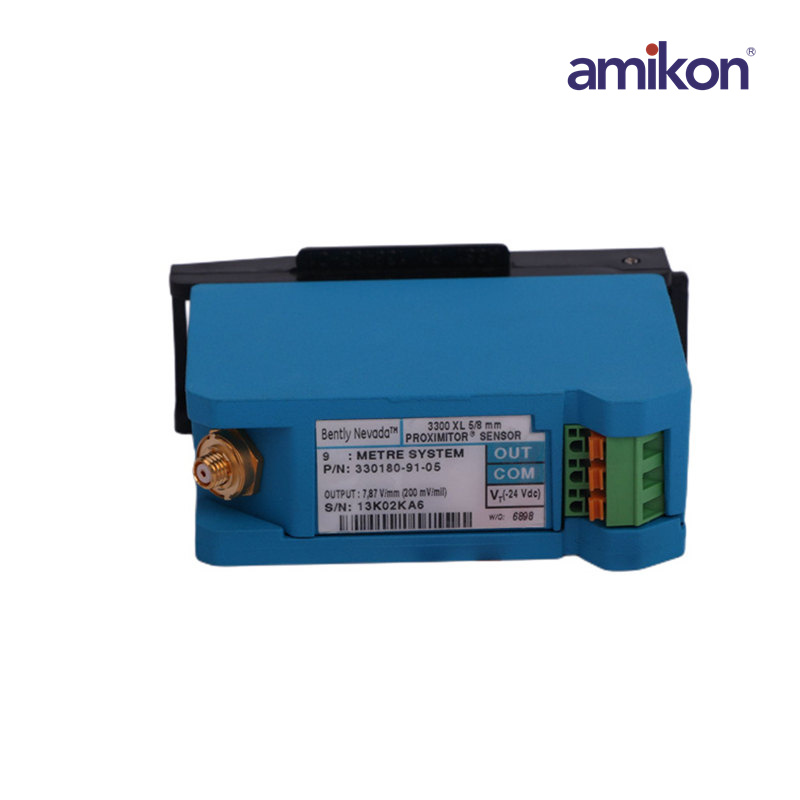

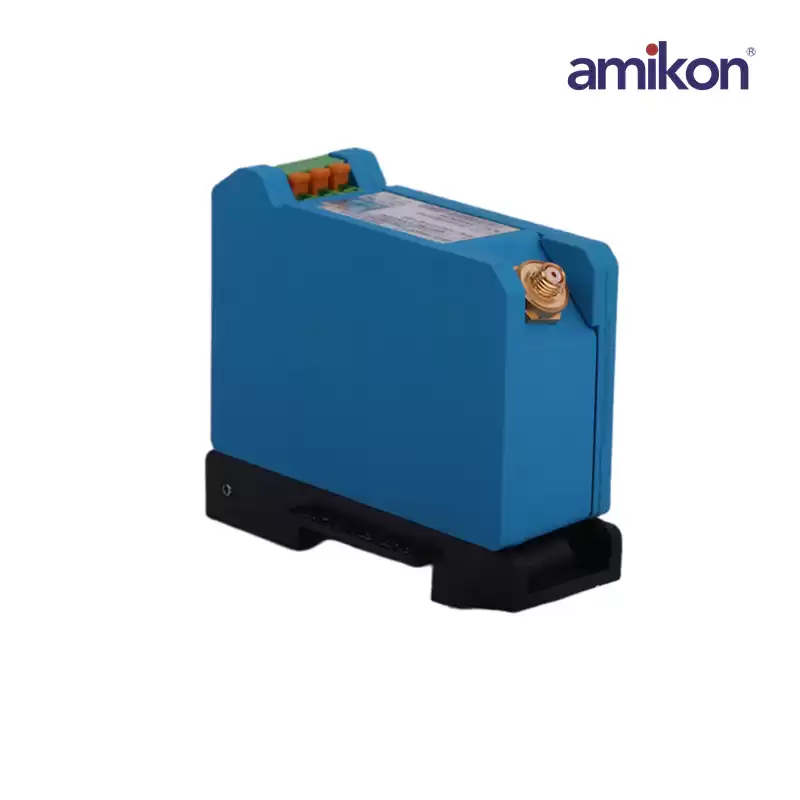

The 330180-90-05 is 3300 XL Proximitor Sensor. The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs.
The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals.The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.
|
