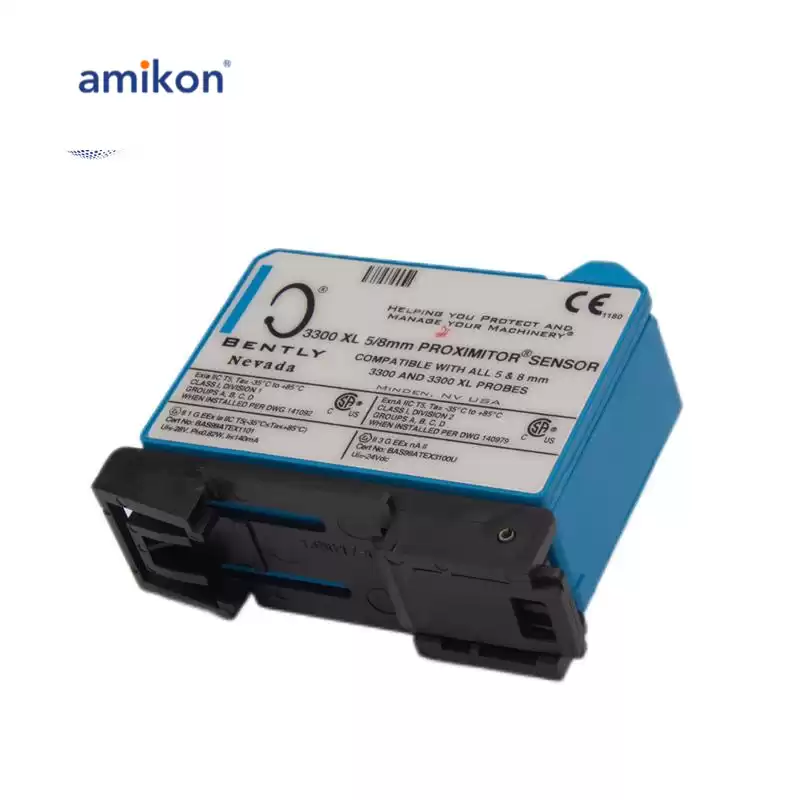

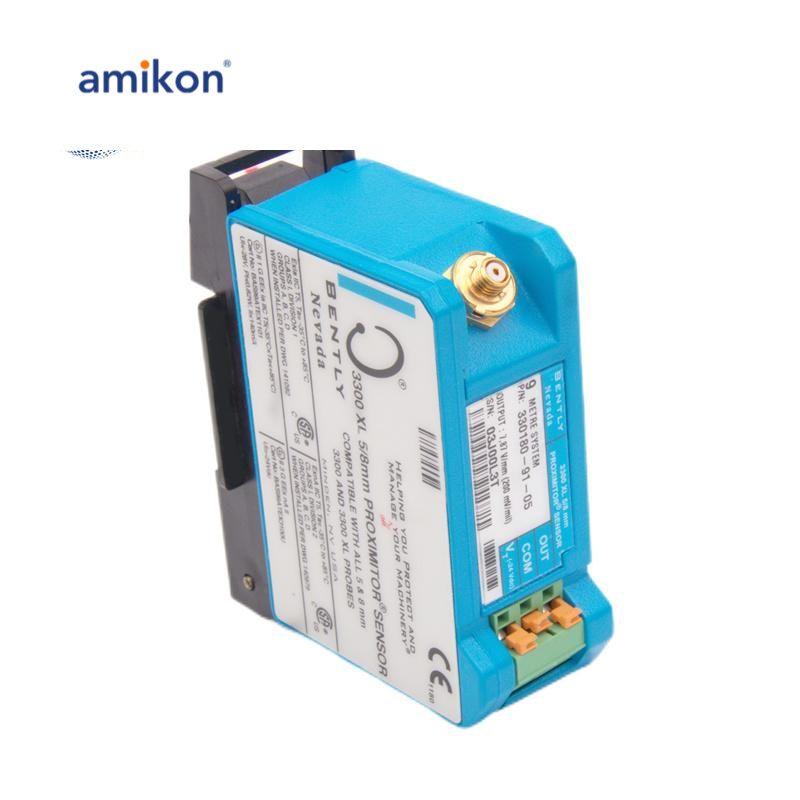

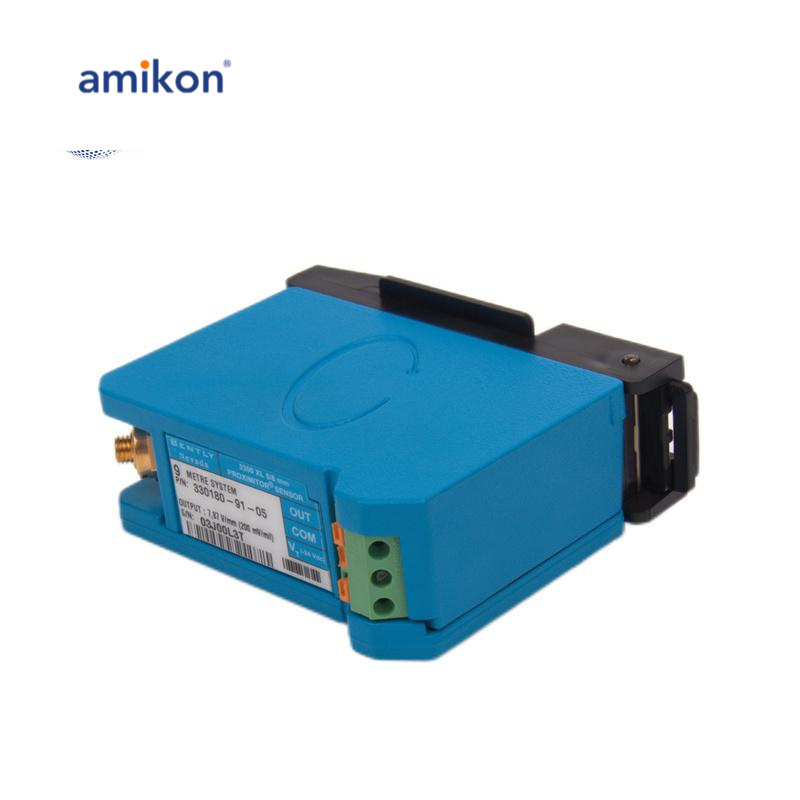

Bently Nevada 330180-91-05 3300 XL Proximitor Sensor

Brand new and original sealed//Same Day Shipment


  • Payment Term100% Advance Payment T/T Bank Wire Transfer
  • Warranty PeriodOne Year Warranty
  • Dimensions8.8cmx7cmx3cm
  • Weight0.25KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada

Specifications
Part Number: 330180-91-05
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Proximitor Sensor
Series: Bently Nevada 3300
Length: 9.0 meters
Availability: In Stock

330180-91-05 is a 3300 XL Proximitor Sensor developed by Bently Nevada. It is a part of Bently Nevada 3300 XL 8mm Proximity Transducer System. One 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor make up the 3300 XL 8mm Proximity Transducer System. The system can measure static (position) and dynamic (vibration) readings and outputs a voltage that is directly proportional to the distance between the probe tip and the observed conductive surface.

Configuration
Total Length: 9.0 meters (29.5 feet) system length
Mounting Option: DIN mount
Agency Approval Option: CSA, ATEX, IECEx approvals

Characteristics
Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
Extended Temperature Range Applications
Complete Interchangeability of Units and Cabling
Backward Compatible with Other Non-3300 XL Series Transducer System Components

Power-Up Inhibit Function
This one-of-a-kind feature reduces false alarms caused by a transient power surge or loss and subsequent power re-application.
After the power has stabilized, alarms are disabled for two seconds before Timed OK/Channel Defeat, if enabled, becomes active.
Rack Restriction — This function, which is activated by customer-supplied external contact closure, bypasses all monitors, disables alarms, zero-scales all outputs, and de-energizes the system OK relay.
