330180-X1-05
|
|
Full Description: The 3300 XL 8 mm Proximity Transducer System consists of: 1.One 3300 XL 8 mm probe, 2.One 3300 XL extension cable1, and
One 3300 XL Proximitor Sensor2.
|
|
Dimensions ：8.8x3.4x7cm
|
Weight：0.22kg
|
|
Operating Temperature： 0 °C to +55 °C
Humidity：95%, noncondensing
Power Consumption：6.05 watts typical
Storage Temperature：-40 °C to +80 °C
|

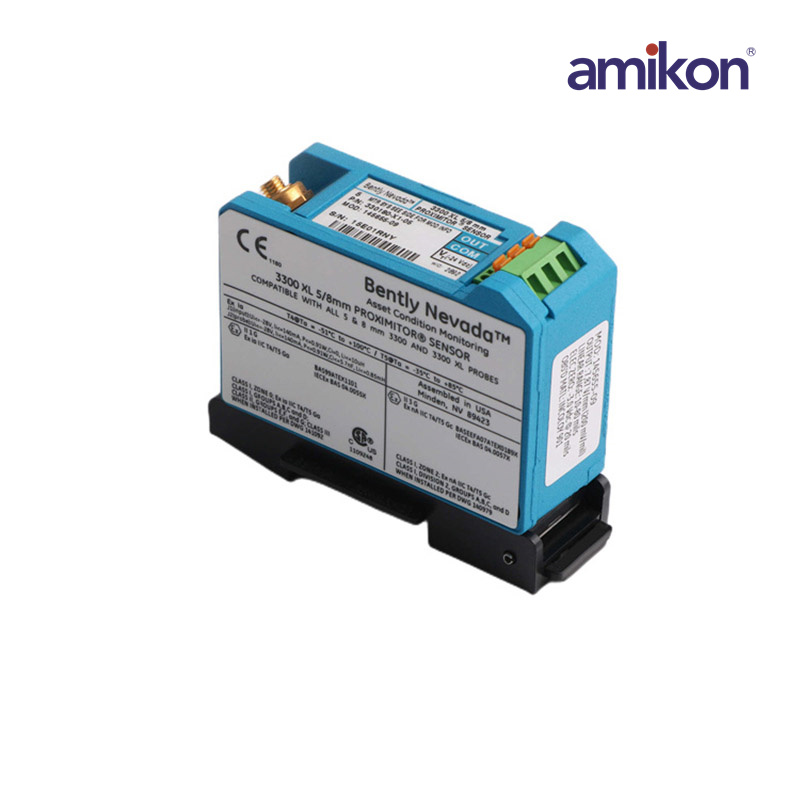

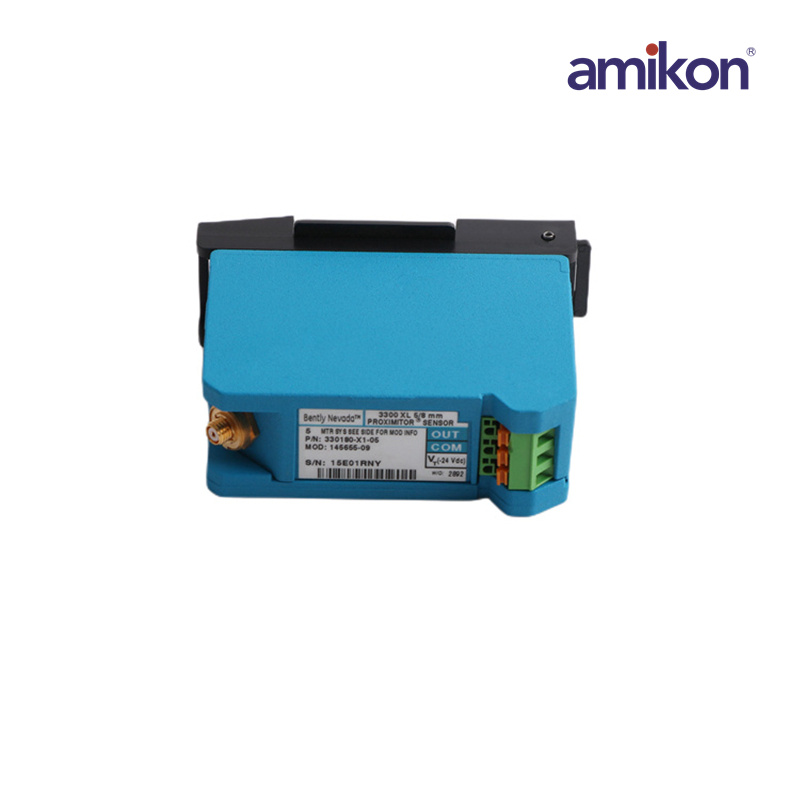

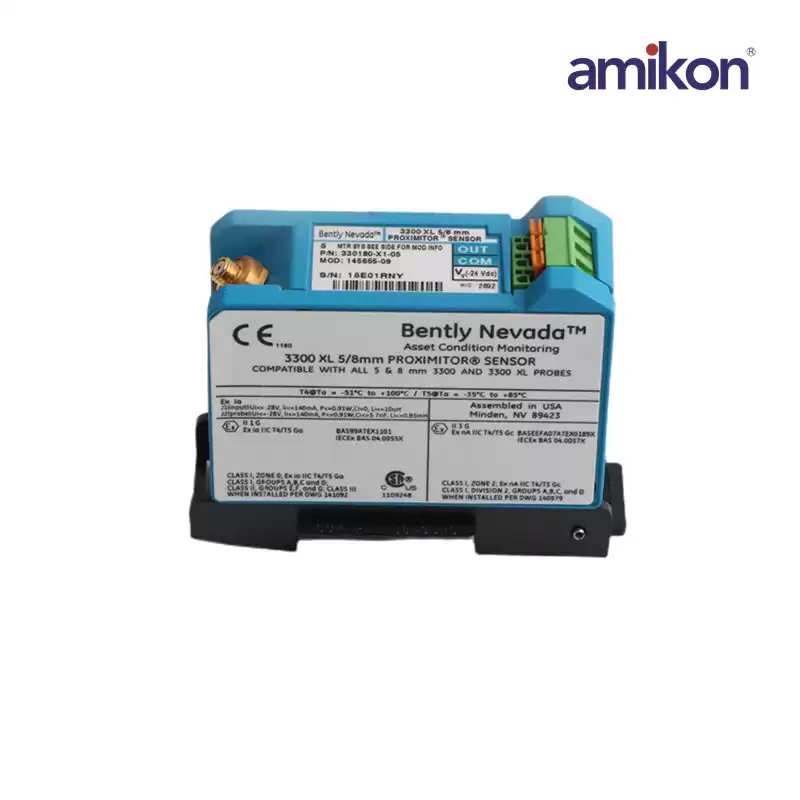

The 330180-X1-05 is Proximity Sensor. The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs.
The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates.The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.
|
