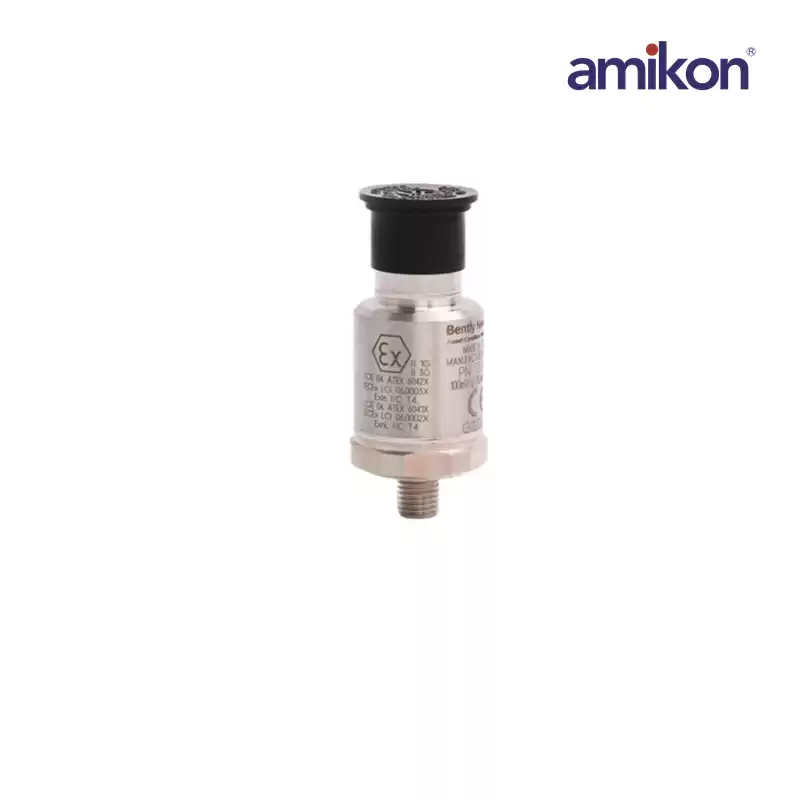

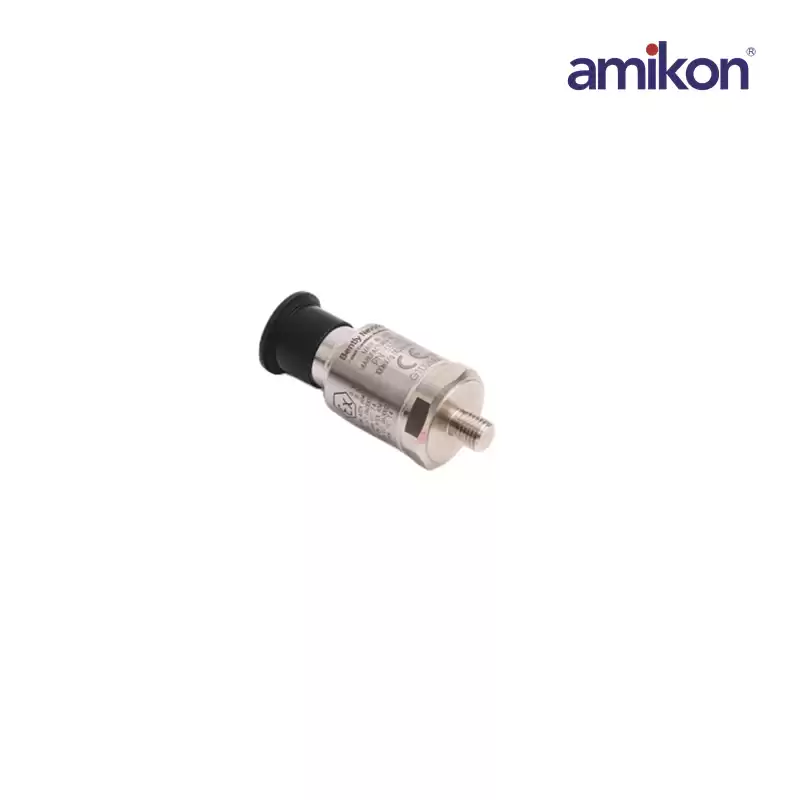

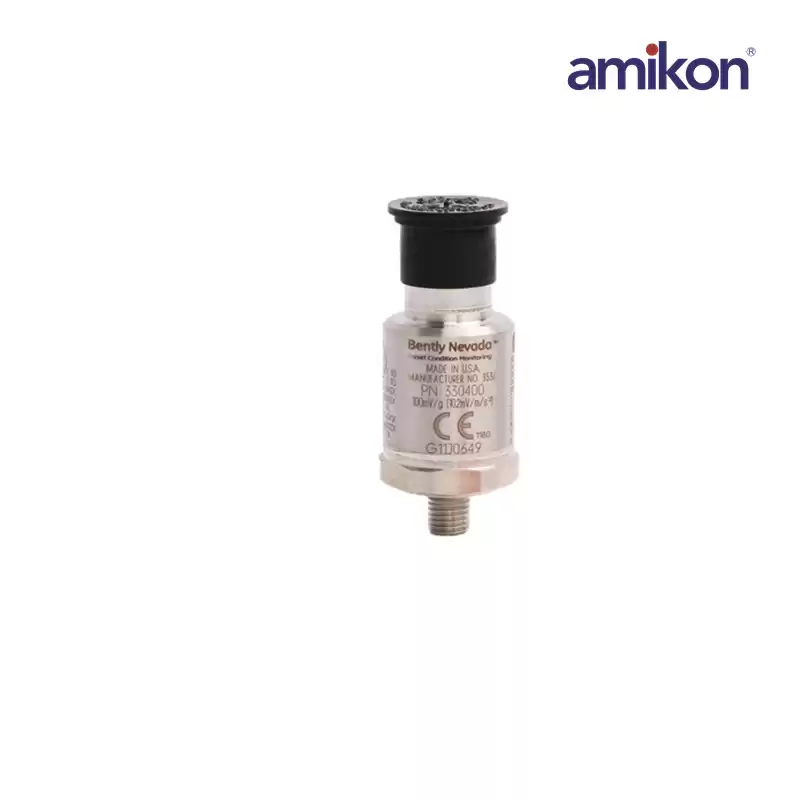

Bently Nevada 330400-02-00 Accelerometer Acceleration Transducer

330400-02-00

Full Description: Model: 330400 - Accelerometer  Mounting Thread Option: -02 - M8 X 1 integral stud   Agency Approval Option: -CN

Dimensions ：2.3x2.3x6cm

Weight：0.1kg

Operating Temperature：-30°C to +65°C

Humidity：90%, noncondensing

Power Consumption：5.48 watts typical

Storage Temperature ：-40°C to +70°C

These accelerometers are intended for critical machinery

applications where casing acceleration measurements are

required, such as gear mesh monitoring.  The 330400 is

designed to address the requirements of American

Petroleum Institute Standard 670 for accelerometers.  It

provides an amplitude range of 50 g peak and a sensitivity of

100 mV/g.  The 330425 is identical except it provides a larger

amplitude range (75 g peak) and a sensitivity of 25 mV/g.
