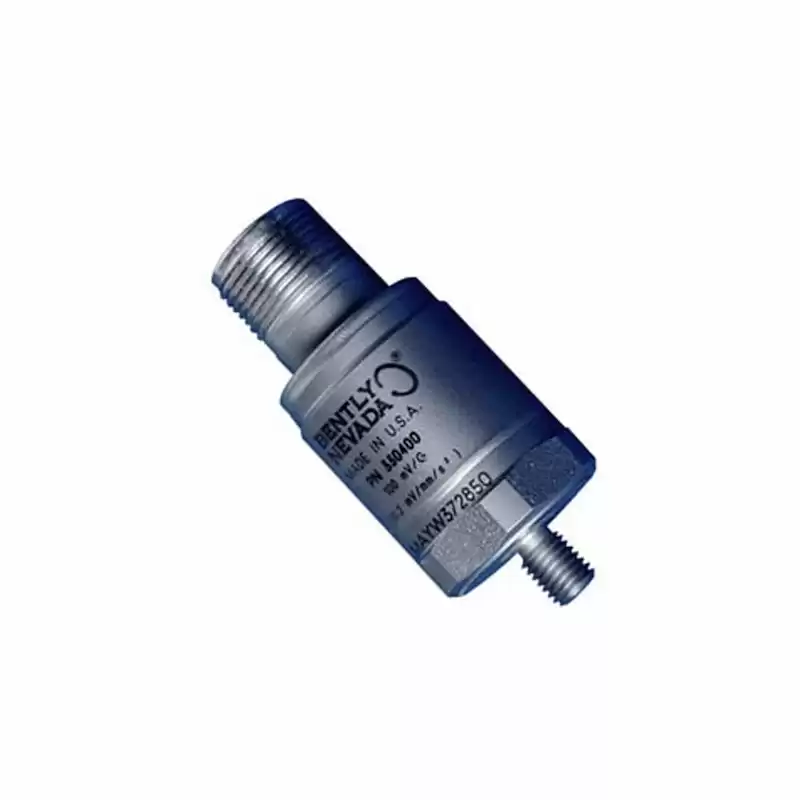

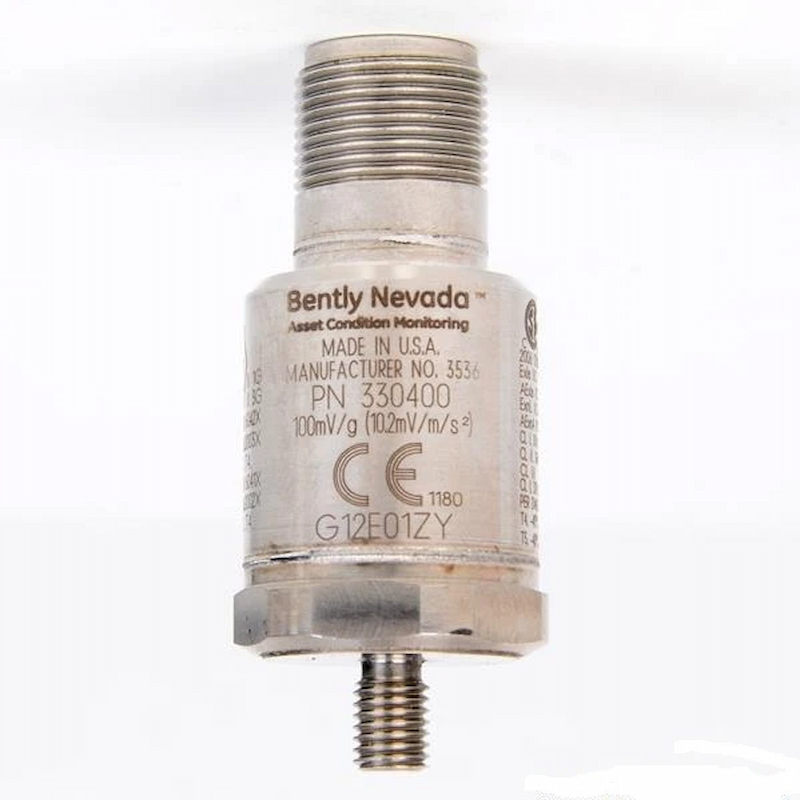

Bently Nevada 330400-02-05 Accelerometer Acceleration Transducers
The 330400-02-05 is a Accelerometer Acceleration Transducer, it's manufactured and designed by Bently Nevada.
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g.
Functional Description
Parameters are specified from +20 to +30 °C (+68 to +86 °F) and 100 Hz unless otherwise indicated.
Electrical
Sensitivity：10.2 mV/m/s2 (100 mV/g) ±5%.
Acceleration range：490 m/s2 (50 g) peak overall acceleration within the 10 Hz to 15 kHz frequency span.
Vibration at frequencies above 15 kHz, especially at the transducers resonance will significantly decrease this range Amplitude Linearity：±1% to 490 m/ s2 (50 g) peak.
Broadband Noise Floor (10 Hz to 15 kHz)：0.039 m/s2 (0.004 g) rms.
Power requirements
Input Voltage：-24 ± 0.5 Vdc.
Bias Current：2 mA nominal.
Output Bias Voltage: -8.5 ± 0.5 Vdc.
Grounding：Case isolated.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
330400-02-05 |

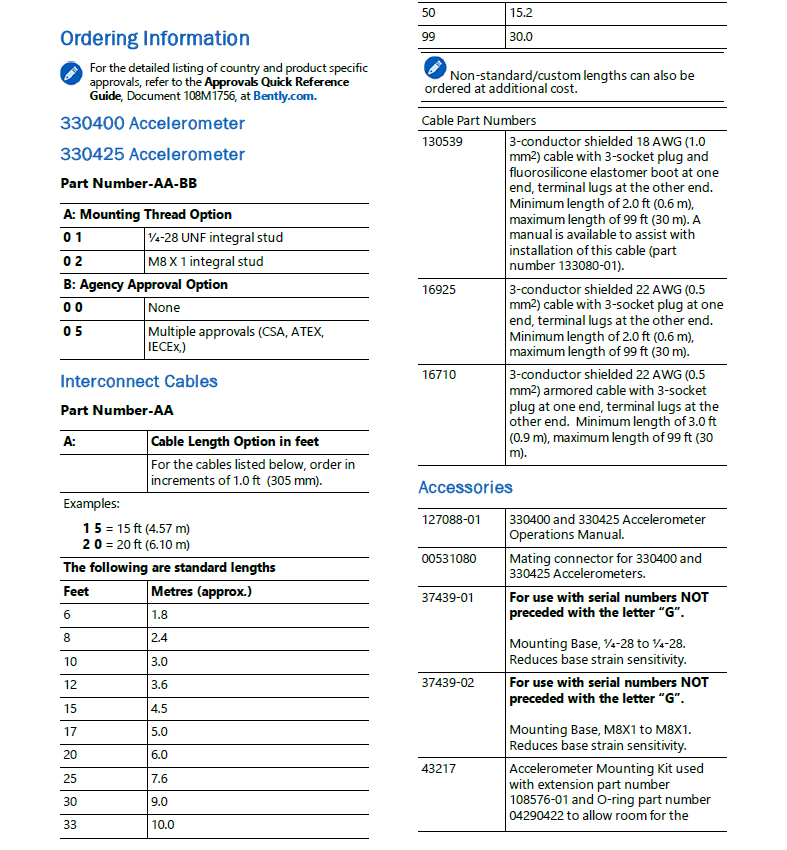

| Ordering Information |
330400 |
| Product Catalog |
330400 |
| Description |
Accelerometer Acceleration Transducers |
| Voltage |
24 Vdc |
| Current |
2 mA |
| Dimension |
23 mm * 59 mm |
| Weight |
100 g |
