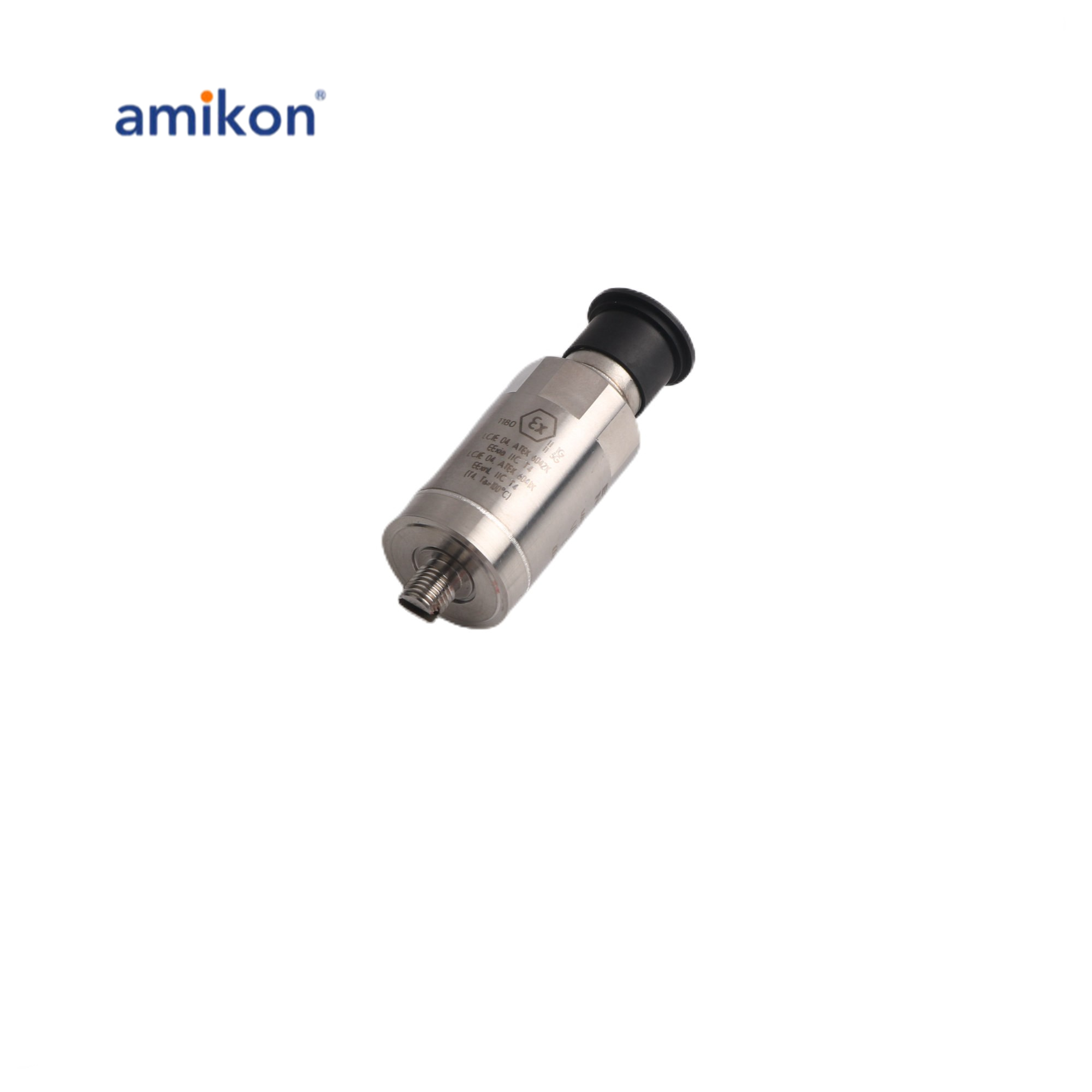

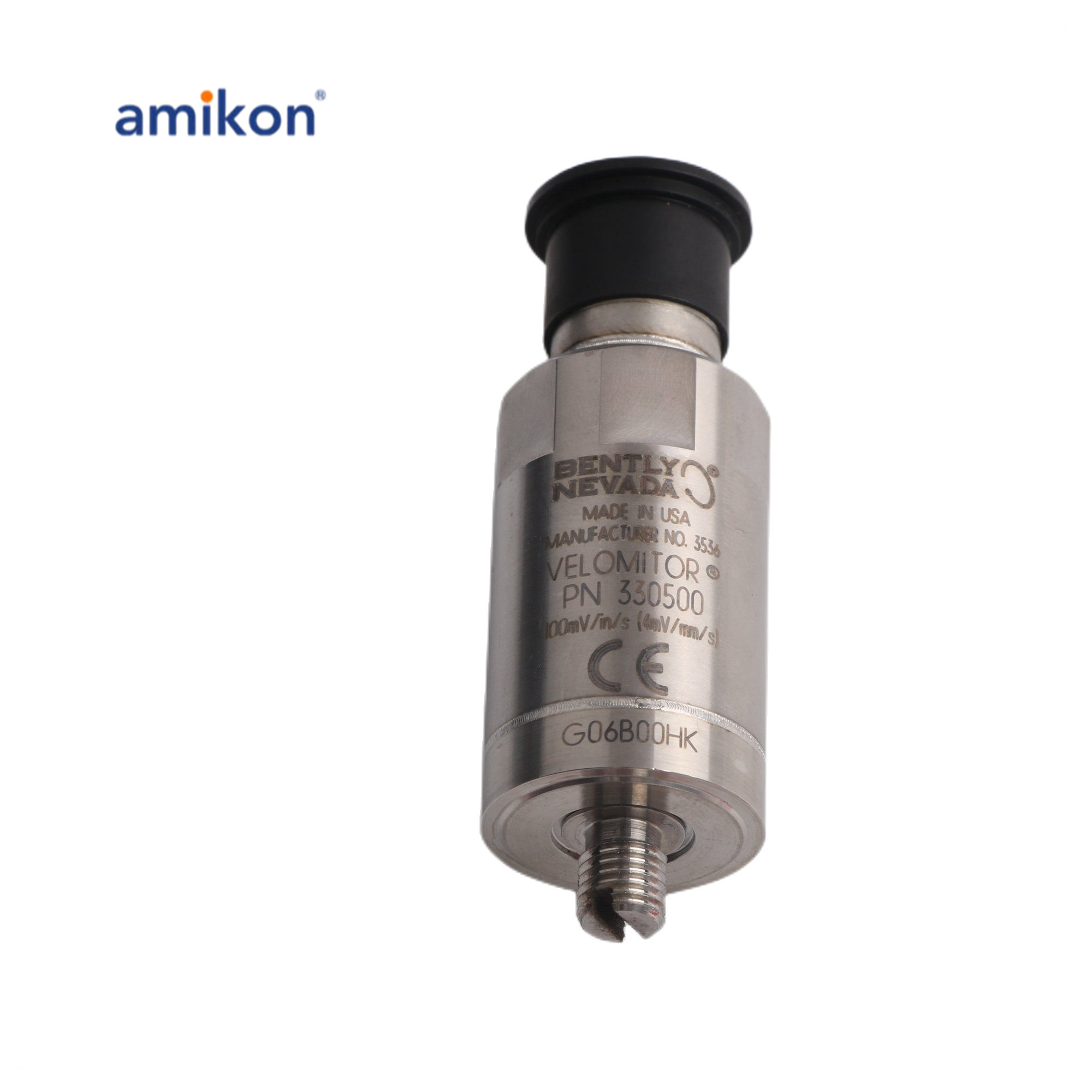

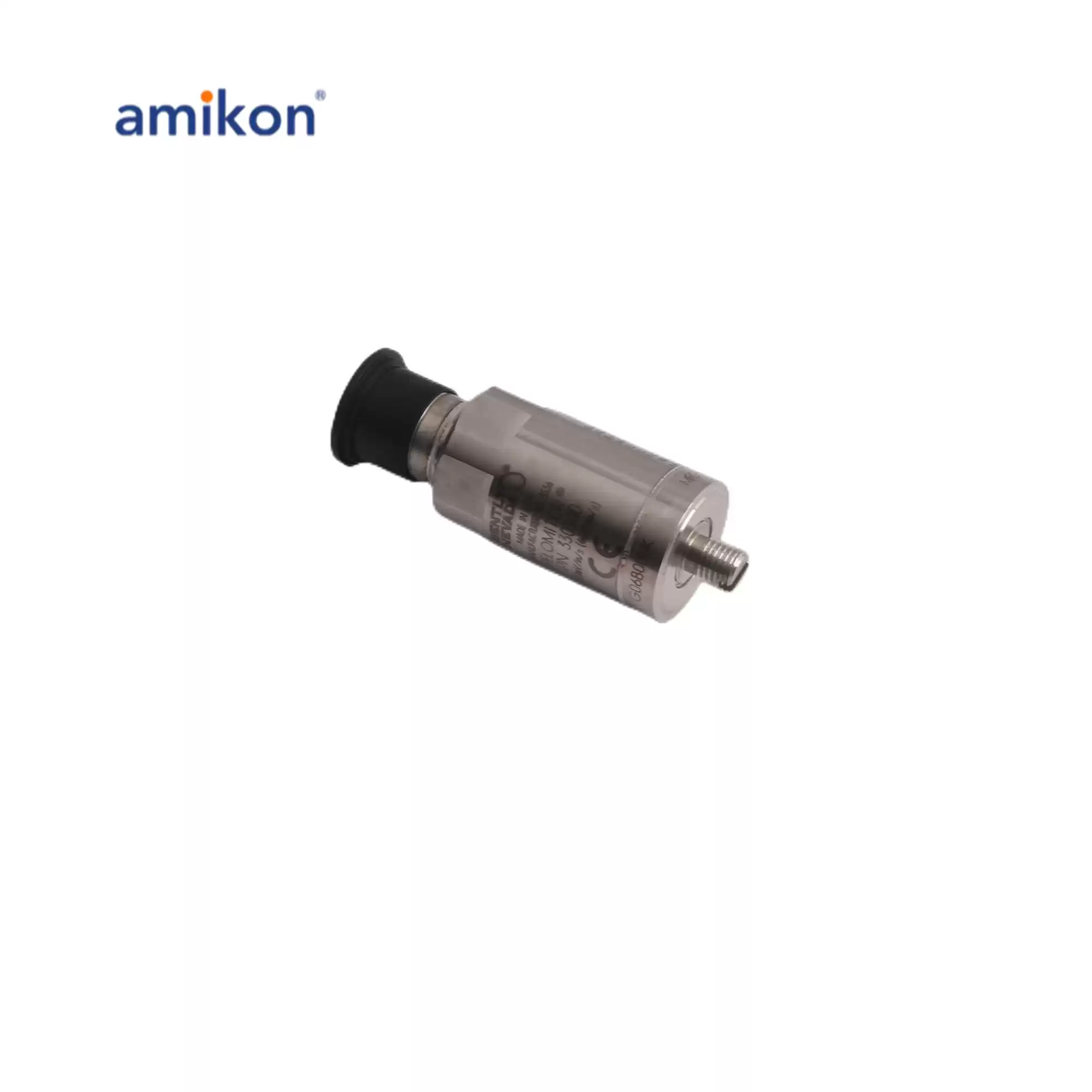

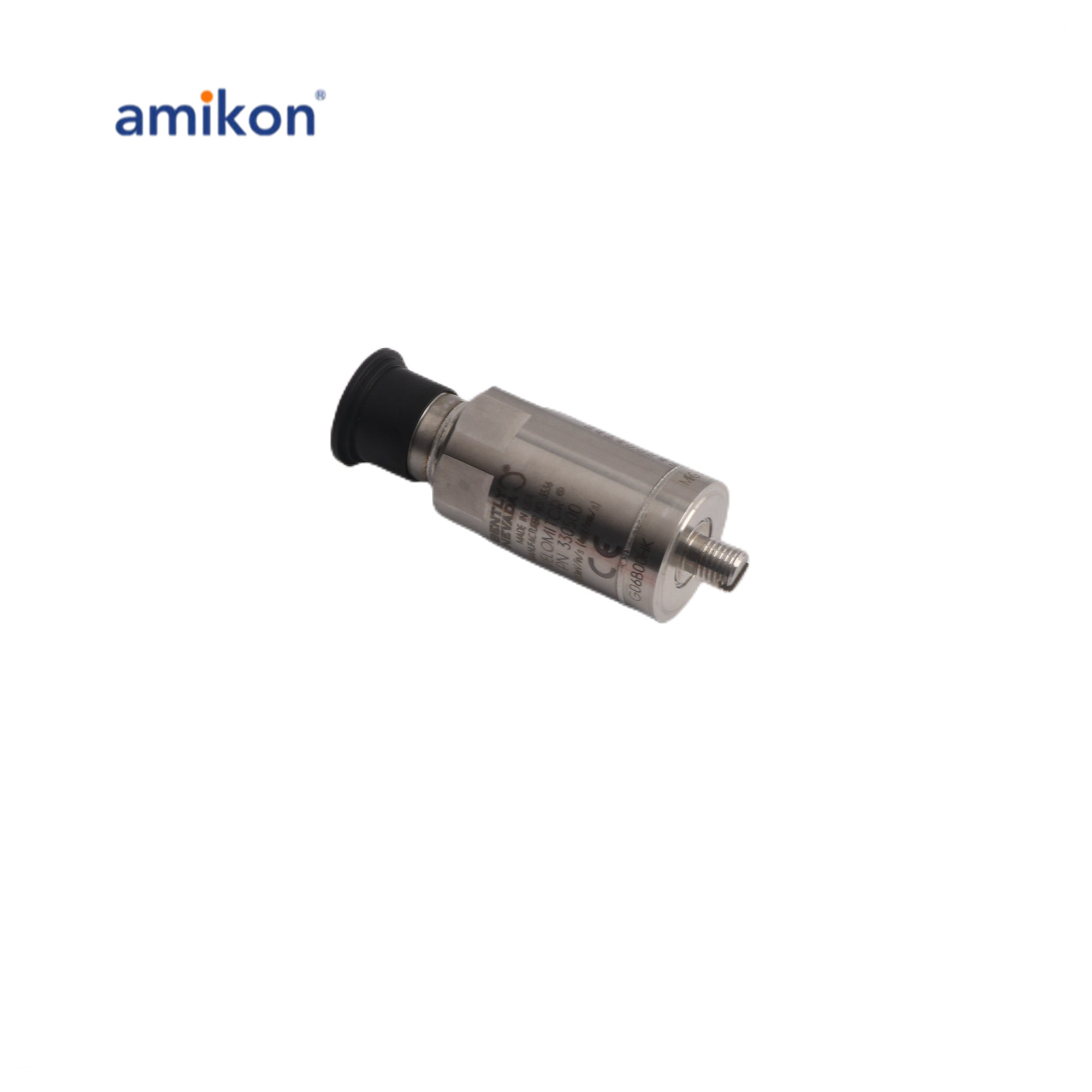

Bently Nevada 330500-00-00 Velomitor Piezo-Velocity Sensor

Brand new and original sealed//Same Day Shipment

  • Dimensions2.6cmx2.5cmx7.3cm
  • Weight0.14KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
Manufacturer : Bently Nevada
Product No. : 330500-00-00
Product type : Velomitor Piezo-velocity Sensor
Mounting Thread Adapter Option : 00 = No adapter
Agency Approval Option : 00 = Not required
Mounting Torque : 46 kg cm (40 in-lb) max.
Connector : 2-pin Mil-C-5015 hermeticallysealed, 316L stainless steel shell.
Case Material : 316L stainless steel.
Height : 63.2 mm (2.49 in).
Diameter : 25.3 mm (0.995 in).


Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500-00-00 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500-00-00 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.

Measuring Housings for Transducer Placement If you are measuring a machine housing to determine where to place transducers, consider the types of measurements you want to obtain. Most common machine malfunctions like imbalance or misalignment originate at the rotor and cause a change—usually an increase—in rotor vibration.
