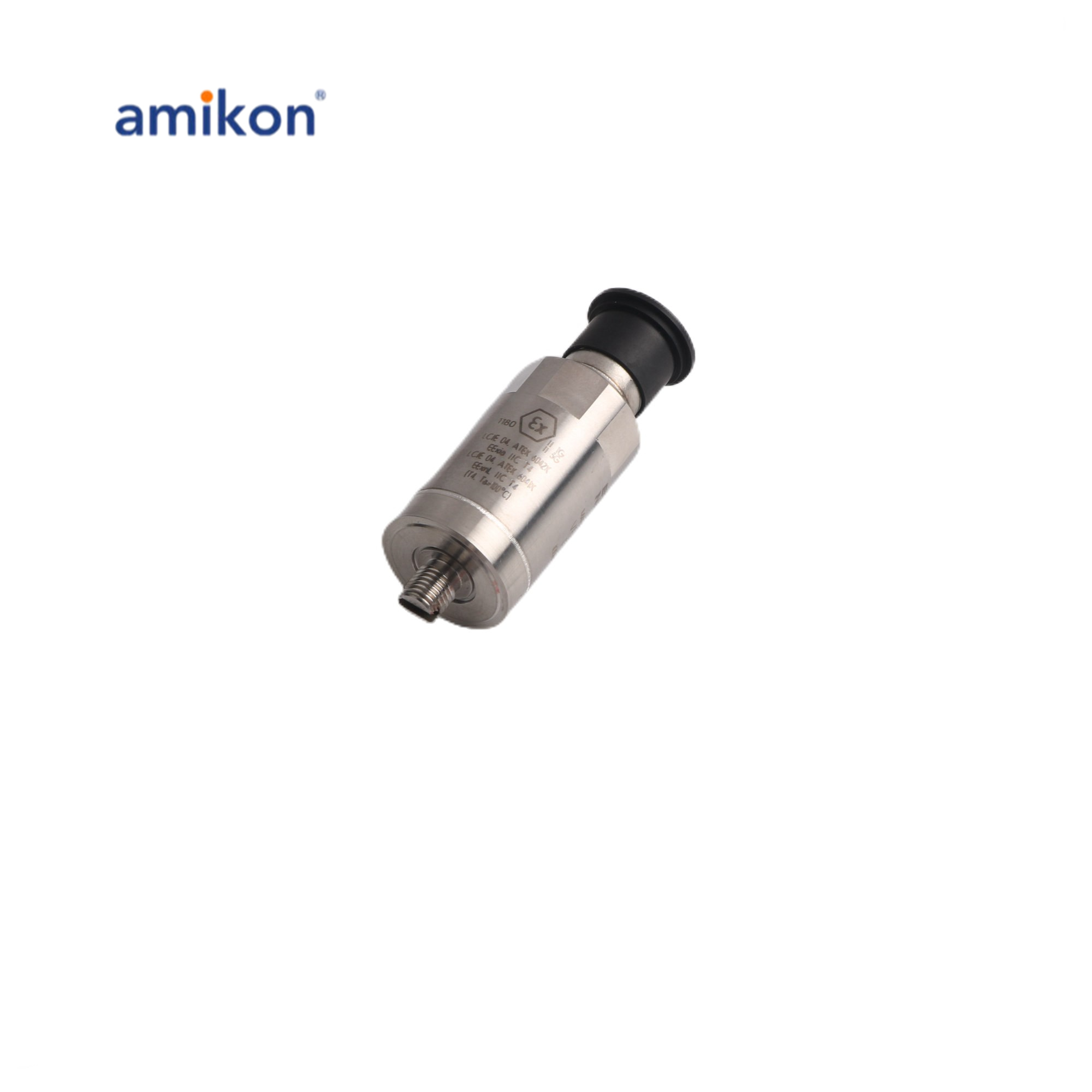

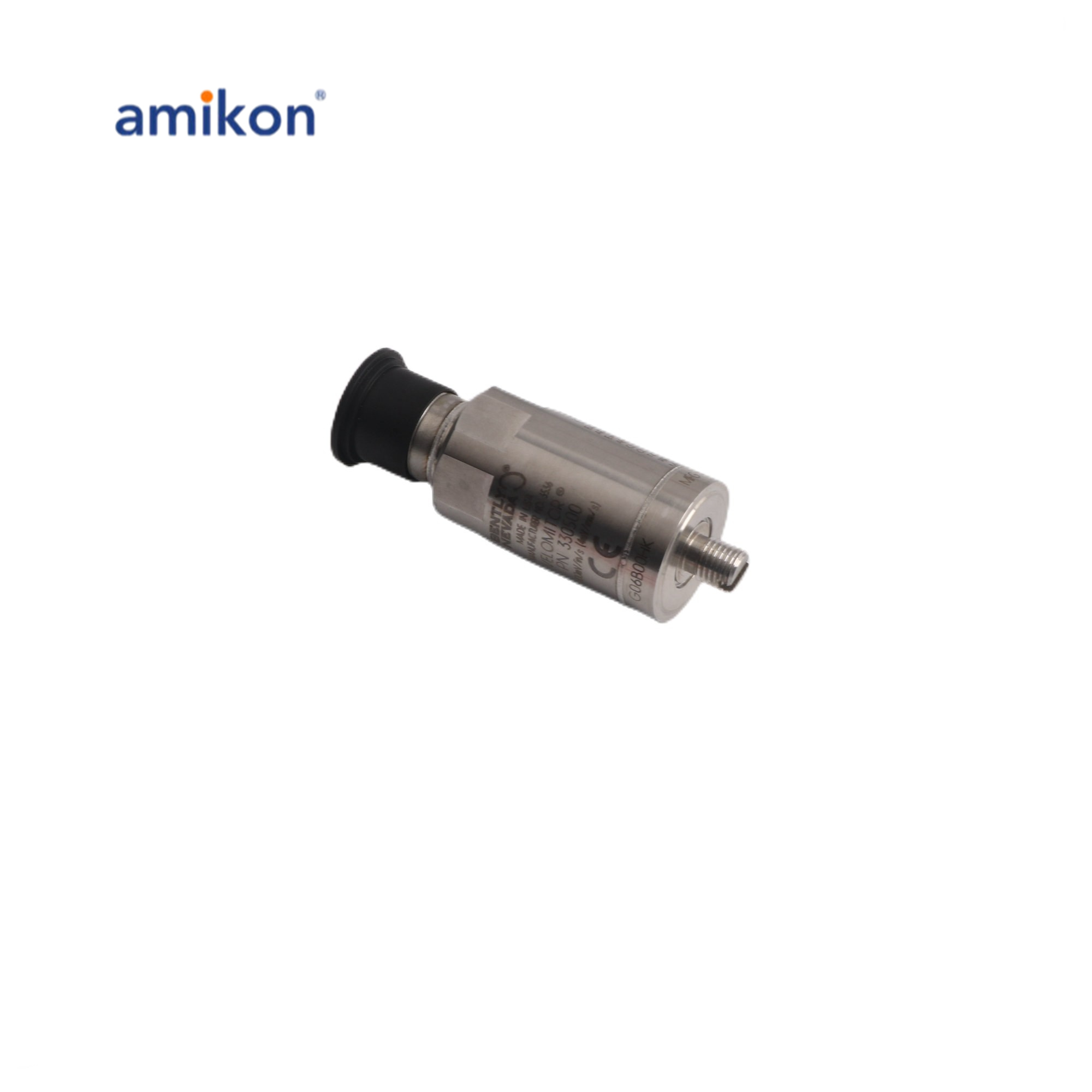

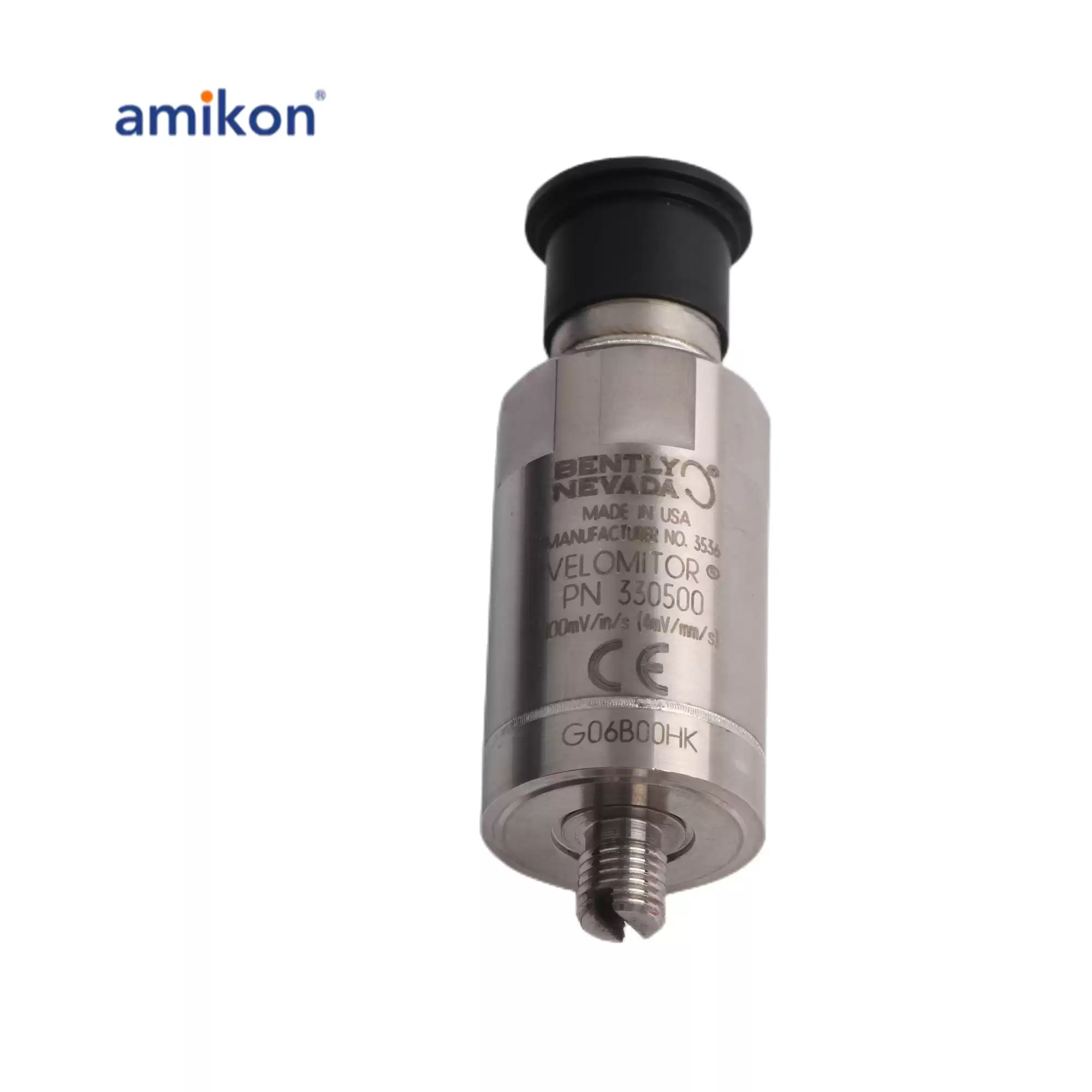

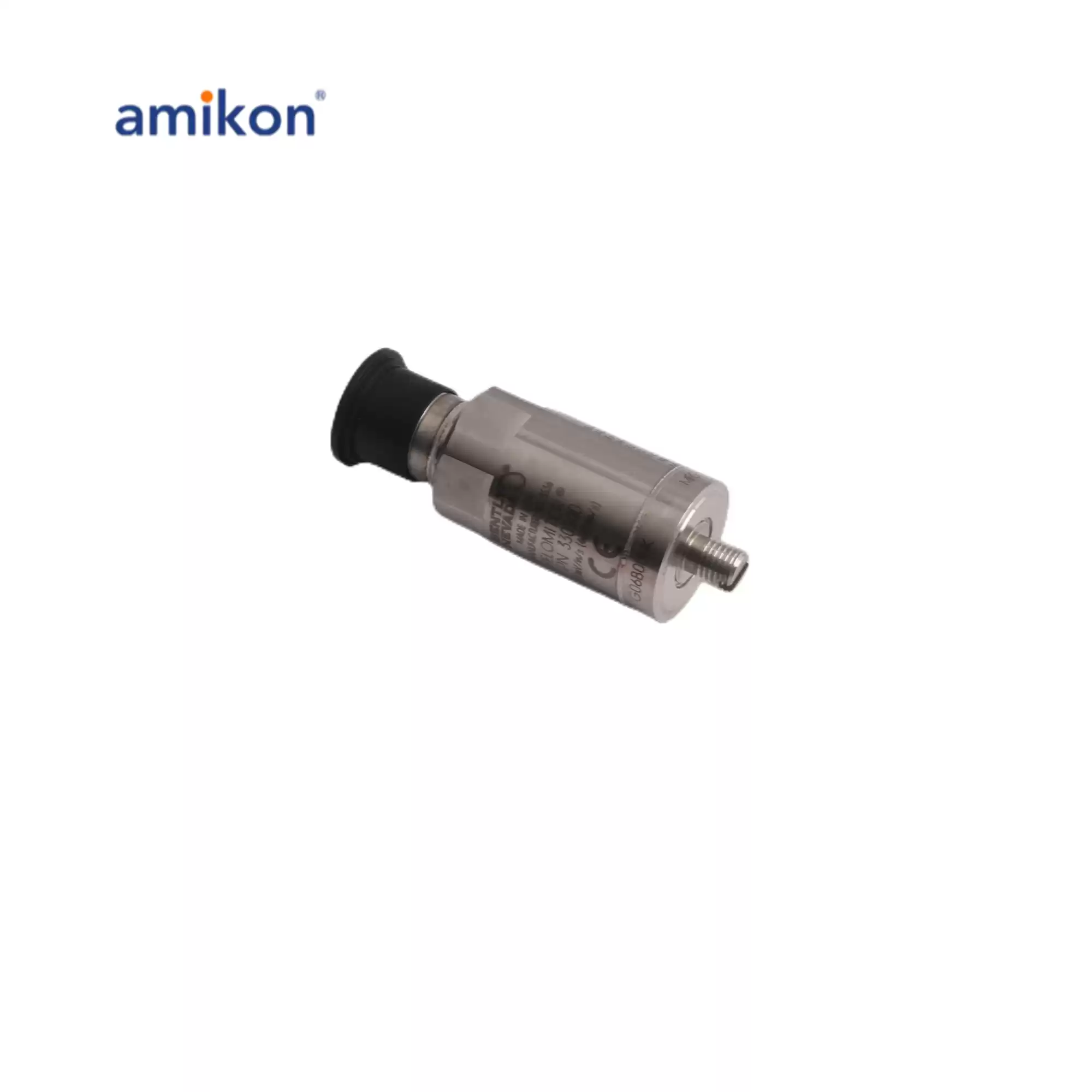

Bently Nevada 330500-02-00 Velomitor Piezo-Velocity Sensor

Manufacturer : Bently Nevada
Product No. : 330500-02-00
Product type : Velomitor Piezo-velocity Sensor
Mounting Thread Adapter Option : 02 = M8 x 1
Agency Approval Option : 00 = Not required
Mounting Torque : 46 kg cm (40 in-lb) max.
Connector : 2-pin Mil-C-5015 hermeticallysealed, 316L stainless steel shell.
Case Material : 316L stainless steel.
Height : 63.2 mm (2.49 in).
Diameter : 25.3 mm (0.995 in).
Weight : 0.142 Kg

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized
piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation.
