330500-02-00
|
|
Full Description: Agency Approval Option : CN = Approvals country specific
(CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
|
|
Dimensions ：2.5x2.5x7.3cm
|
Weight：0.14kg
|
|
Velocity Range：1220 mm/s (50 in/s)
Operating Temperature：-55 °C to 121 °C
Amplitude Linearity：±2% to 152 mm/s
|

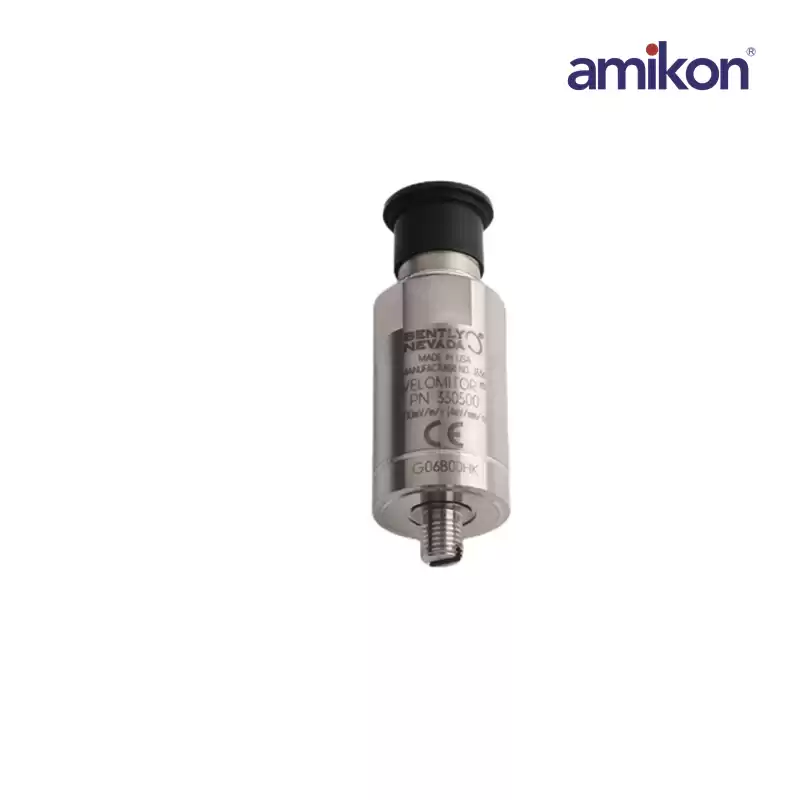

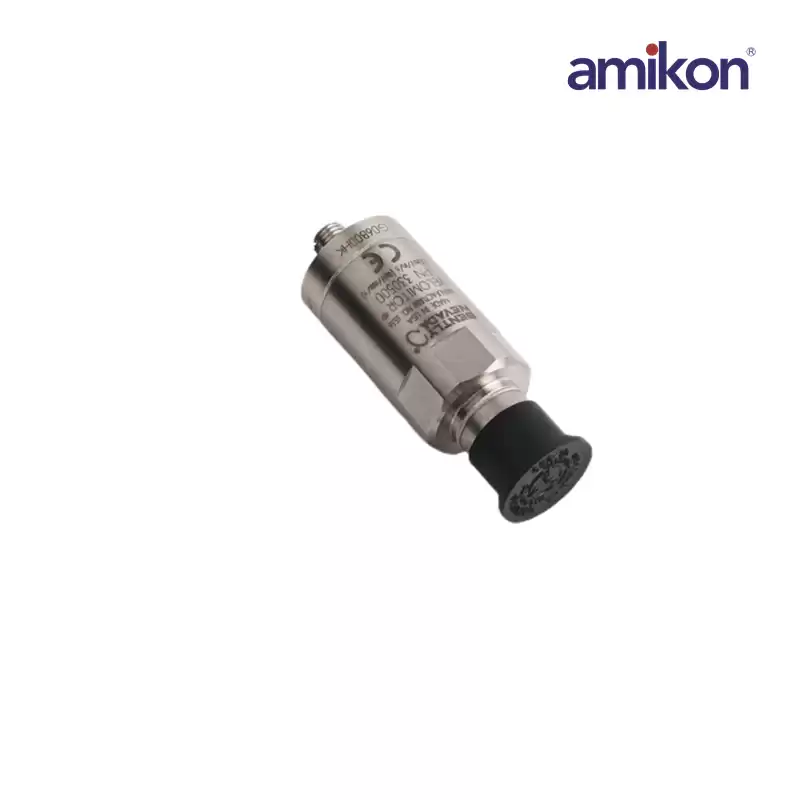

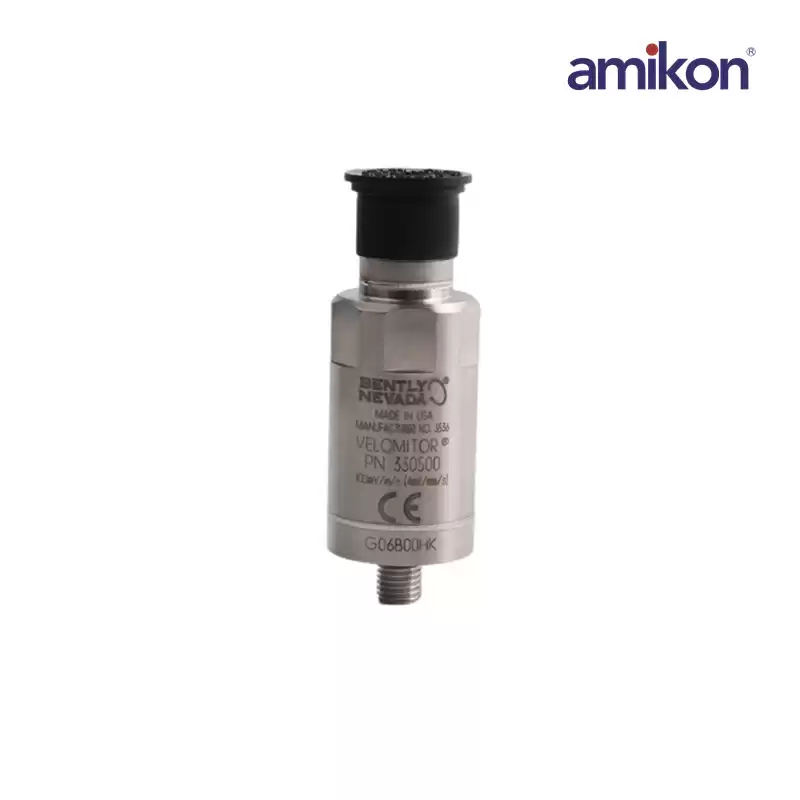

The 330500-02-00 is a Velomitor Piezo-velocity Sensor of Bently Nevada.Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.To obtain high quality data, place the transducer in a location where it can best detect machine vibration through the bearing housing or machine casing.
|
