BENTLY NEVADA 330500-07-02 Velomitor Velocity Sensor
|
Model Number
|
330500-07-02
|
Weight:
|
0.28 kg
|
|
Brand Name
|
BENTLY NEVADA
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Description

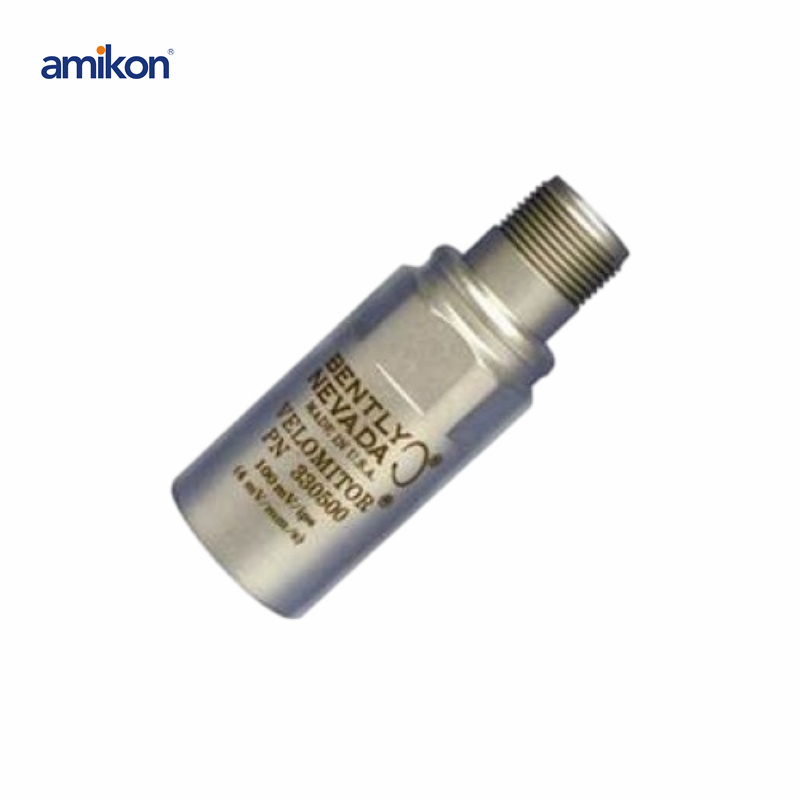

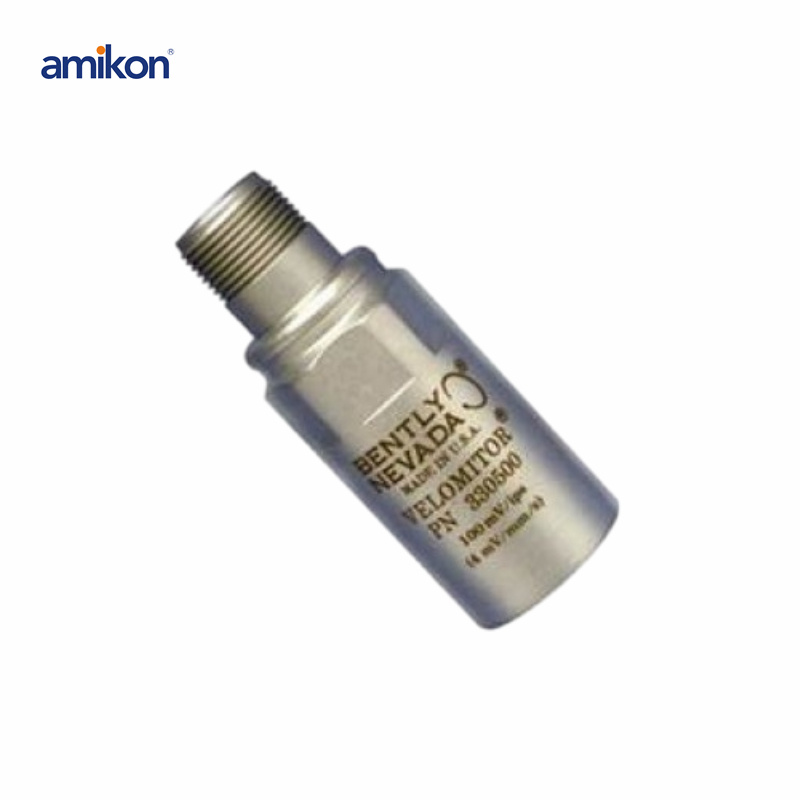

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Parameters are specified from +20 °C to +30 °C (+68 °F to +86 °F) and at 100 Hz unless otherwise indicated.
Power :
Requires -17.5 Vdc to -26 Vdc
without barriers at 12 mA
maximum consumption, -23 Vdc
to -26 Vdc with barriers.
Operation at a more positive
voltage than -23.5 Vdc can result
in reduced linear range.
Supply
Sensitivity:
Less than 2 mV change in output
voltage per volt change in input
voltage.
Output
Resistance :50
