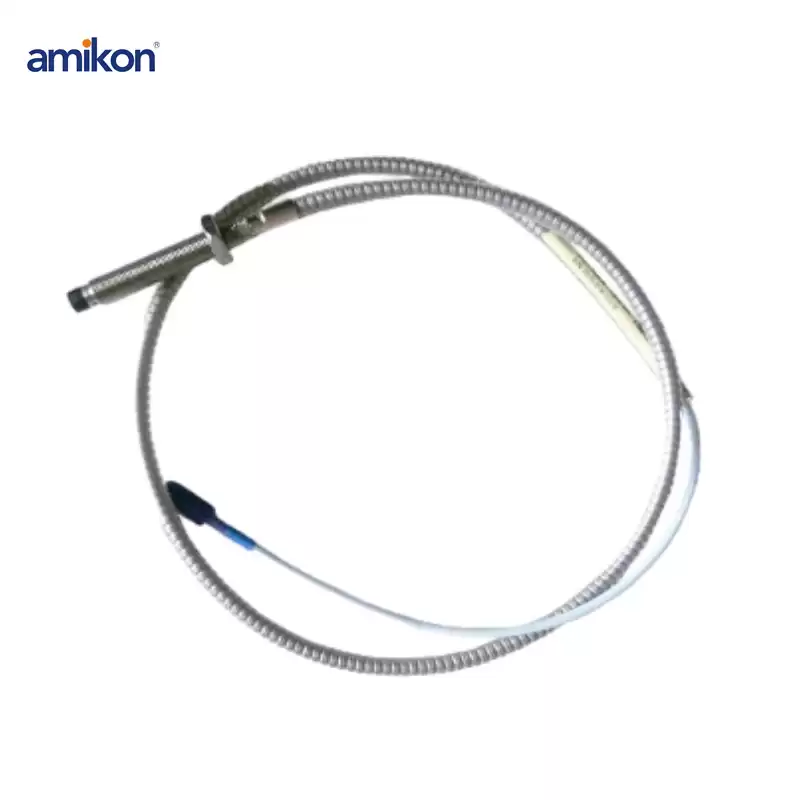

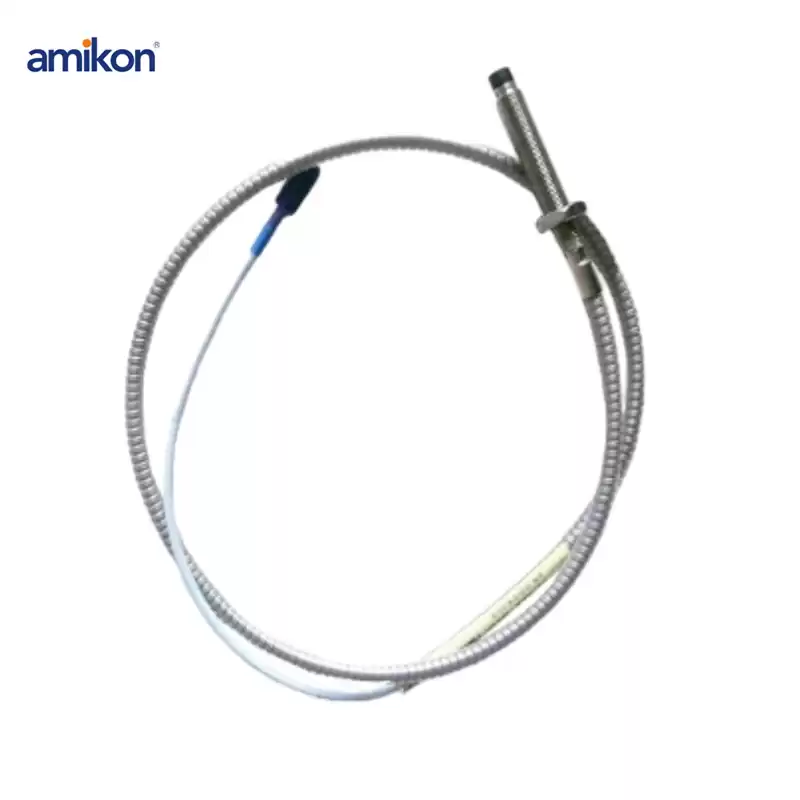

BENTLY NEVADA 330702-00-26-10-11-05 Proximity Transducer
|
Model Number
|
330702-00-26-10-11-05
|
Weight:
|
0.25 kg
|
|
Brand Name
|
BENTLY NEVADA
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Contact Information!
Discuss pricing and delivery time with a sales representative
Skpye:+86 189 6519 6563
Email: sales17@amikon.cn
Whatsapp: +86-189 6519 6563
Wechat: Amikonplc
The Bently Nevada 330702-00-26-10-11-05 Proximity Transducer is a part of the Bently Nevada 3300 XL Series, which is designed for accurate and reliable measurement of vibration and displacement in critical rotating machinery.
It is a key component in condition monitoring systems, providing non-contacting proximity measurement using eddy current technology.
Technical Specifications
Model: 330702-00-26-10-11-05
Type: Proximity Transducer System (Part of 3300 XL Series)
Measurement Technology: Eddy current, non-contact proximity measurement
Measurement Range: 80 mils (2 mm) total range, providing high-accuracy displacement measurements for large and small rotating machines.
Sensitivity: 7.87 V/mm (200 mV/mil)
Linear range: 0.25 mm to 2 mm (10 mils to 80 mils)
Probe Length: 26 inches (660 mm) total length
Cable Length: 10 feet (3.0 meters) probe cable
Armored or unarmored cable for robust field applications
Thread Size: 3/8-24 UNF thread for probe mounting
Operating Temperature: -35°C to +177°C (-31°F to +350°F) for reliable operation in industrial environments.
System Components: Works in conjunction with the Bently Nevada proximity probe and extension cable.
Typically used as part of a three-component system (probe, extension cable, and transducer).
