330703-000-060-50-12-00
|
|
Dimensions ：20.4x22.2x3.7cm
|
Weight：0.16kg
|
|
Operating Temperature:-35°C to +85°C
Humidity：95%, noncondensing
Power Consumption：5.15 watts typical
Storage Temperature ：-51°C to +115°C
|

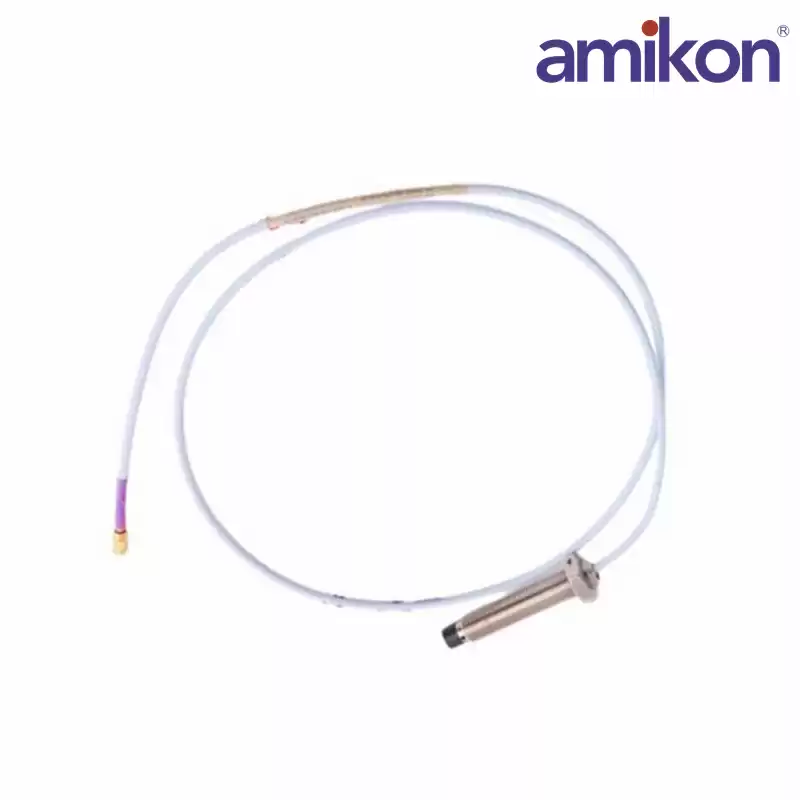

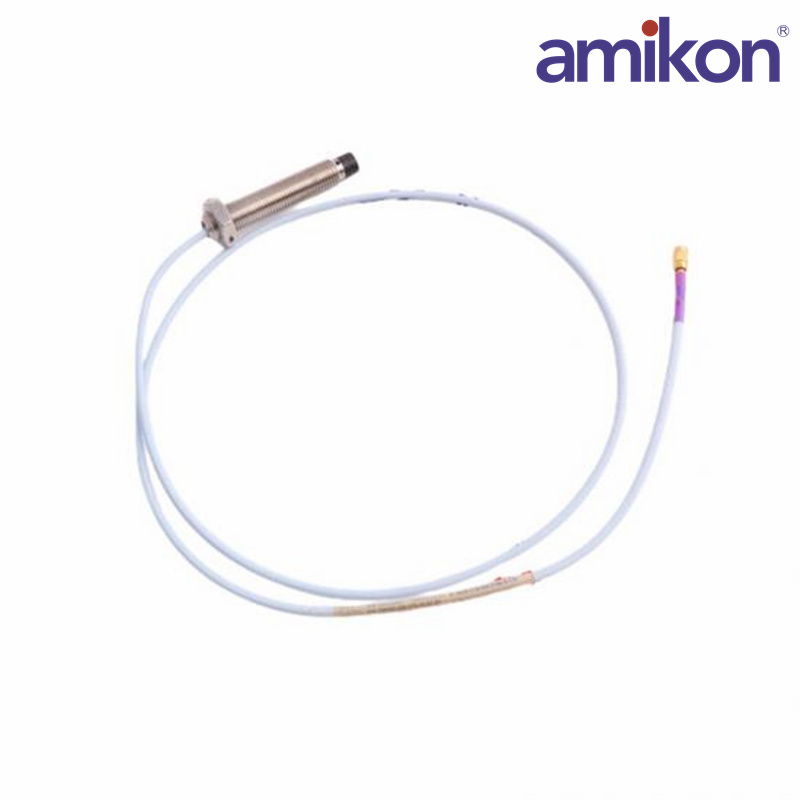

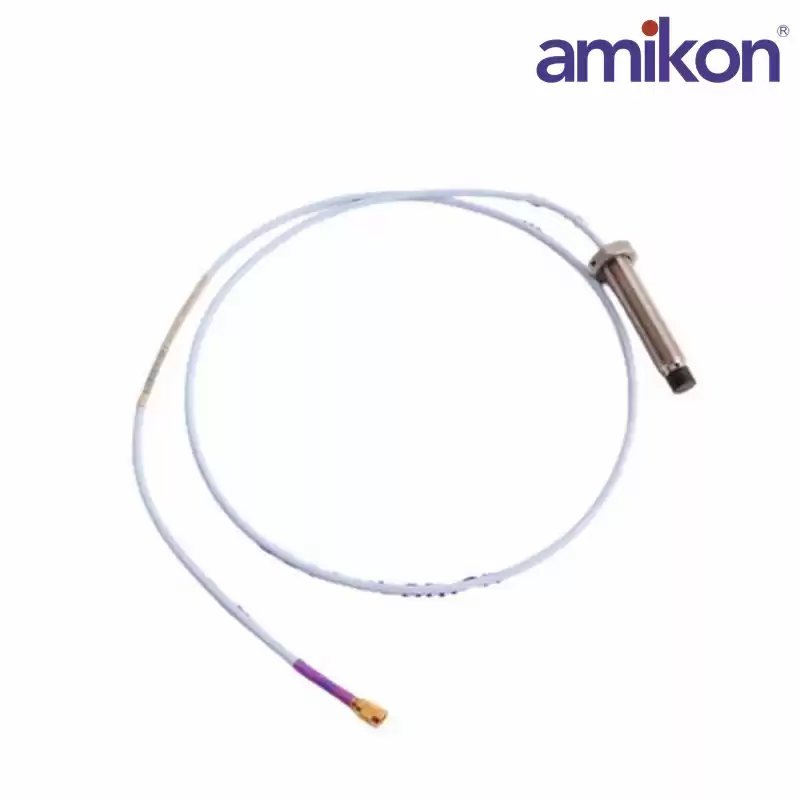

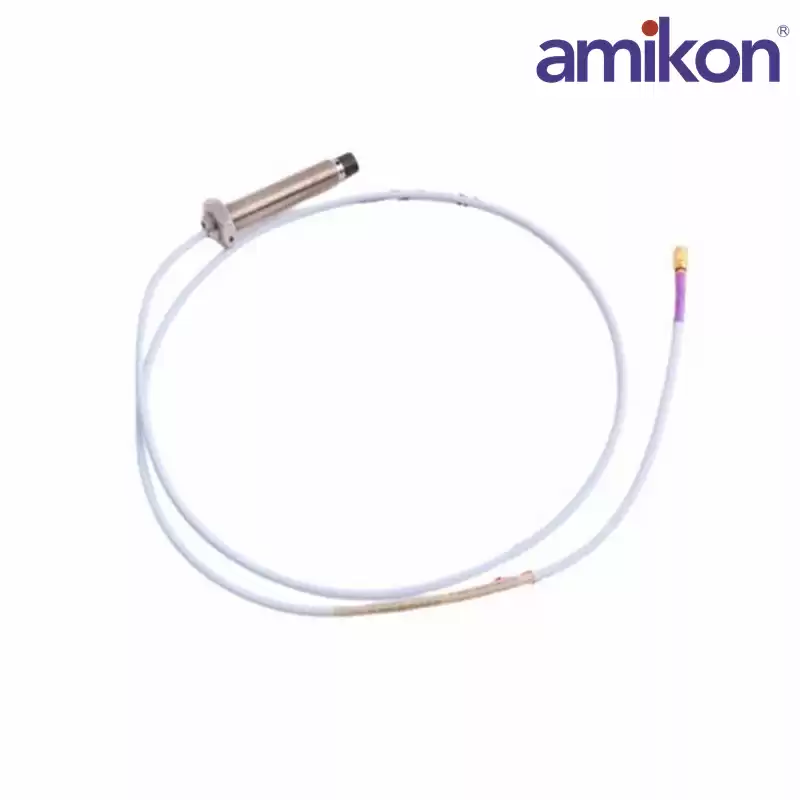

The 330703-000-060-50-12-00 is 3300 XL 11 mm Proximity Probes.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.3300 XL Probes and Extension Cables can also be ordered with a FluidLoc® cable option.
This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection2.
|
|
|
|
|
|
|
|
