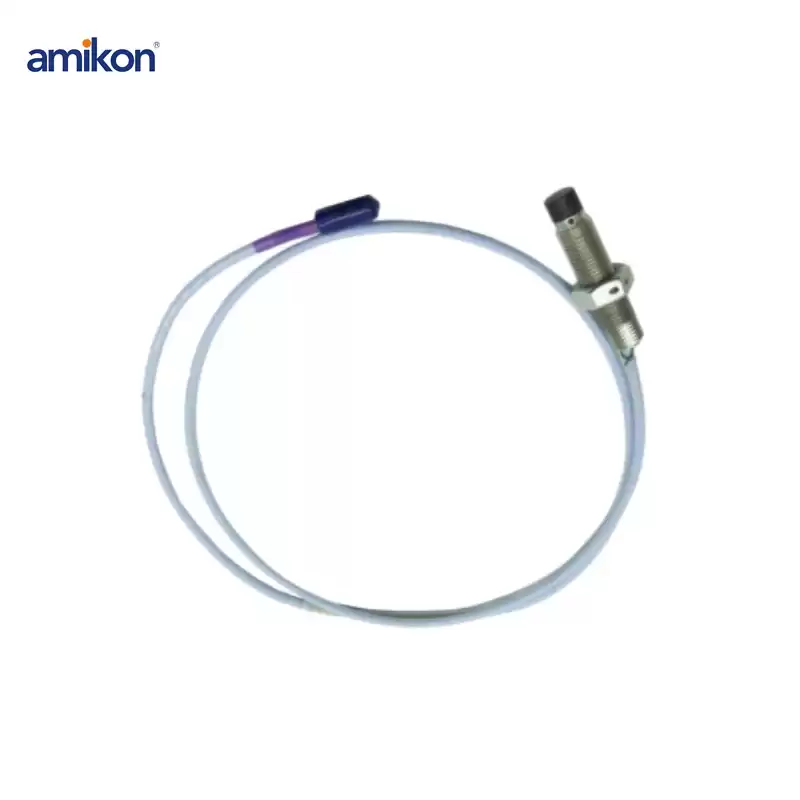

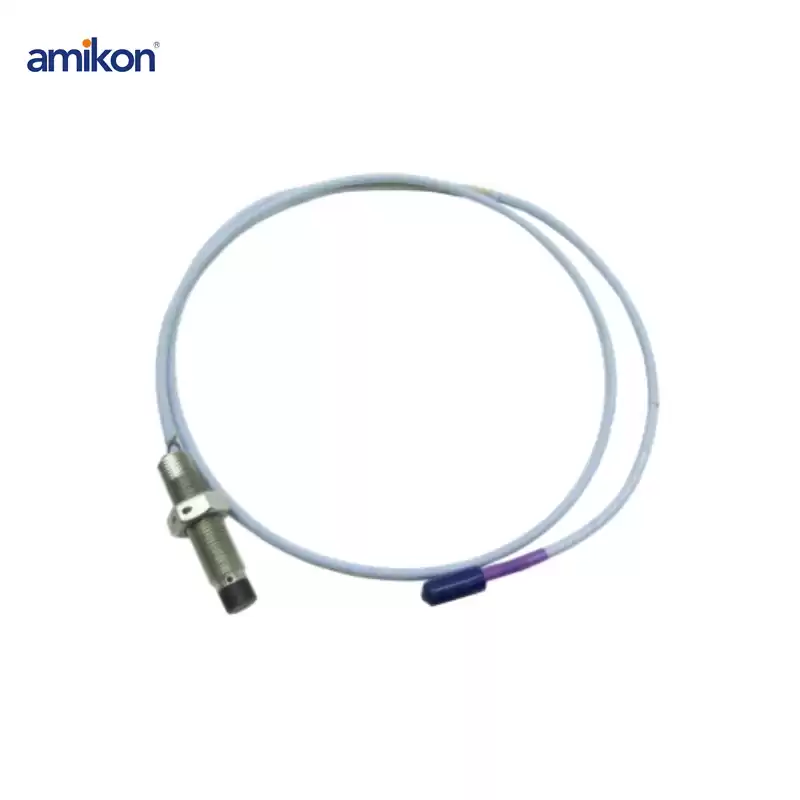

BENTLY NEVADA 330707-00-25-10-12-00 Proximity Probes
New and original & Fast Deliyery & In Stock
- Brand/ManufaturerBENTLY NEVADA
- Country of OriginUSA
- Weight0.28kg
- Dimensions30.5x9x3.5cm
- Warranty PeriodOne Year Warranty
- Payment Term100% Advance Payment T/T Bank Wire Transfer
BENTLY NEVADA 330707-00-25-10-12-00 Proximity Probes
|
Model Number |
330707-00-25-10-12-00 |
Weight: |
0.28 kg |
|
Brand Name |
BENTLY NEVADA |
Lead Time |
IN STOCK |
|
Warranty |
1 year |
Payment |
T/T Bank Transfer |
|
Quality |
Brand New & Original |
Service |
One-stop Service |
|
Shipping By |
DHL UPS TNT FEDEX ARAMEX |
Dimensions |
30.5x9x3.5cm |
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1, and
One 3300 XL Proximitor* Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.
The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor* reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
The standard 3300 XL 8 mm 5-metre system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components
Proximitor Sensor Input :
Accepts one non-contacting 3300-series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Power :
Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
Supply Sensitivity:
Less than 2 mV change in output voltage per volt change in input voltage.
Output Resistance :50
Download PDF File 3300 XL 8mm Proximity Transducer System
