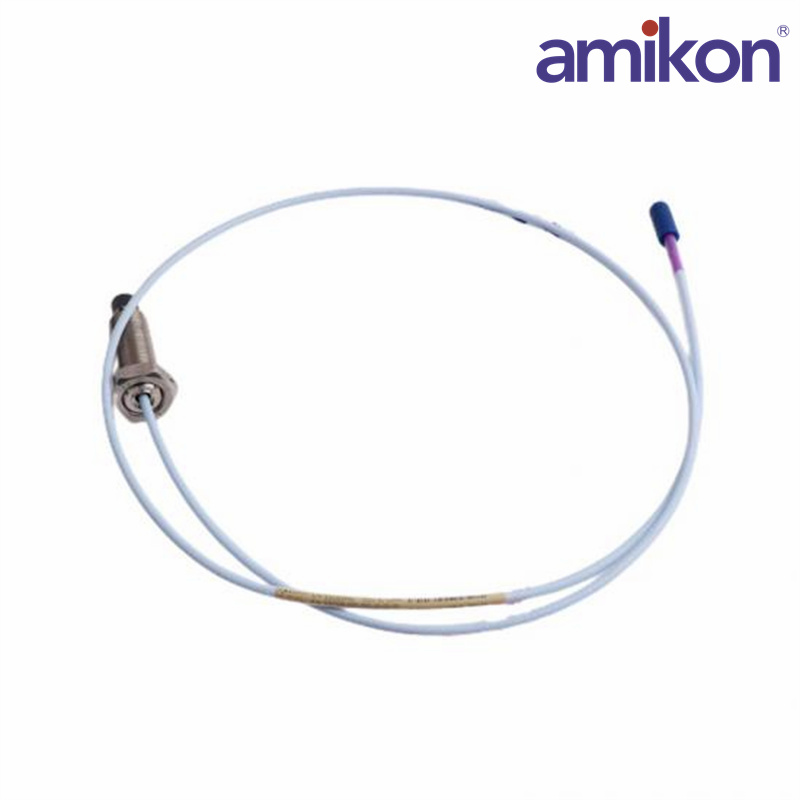

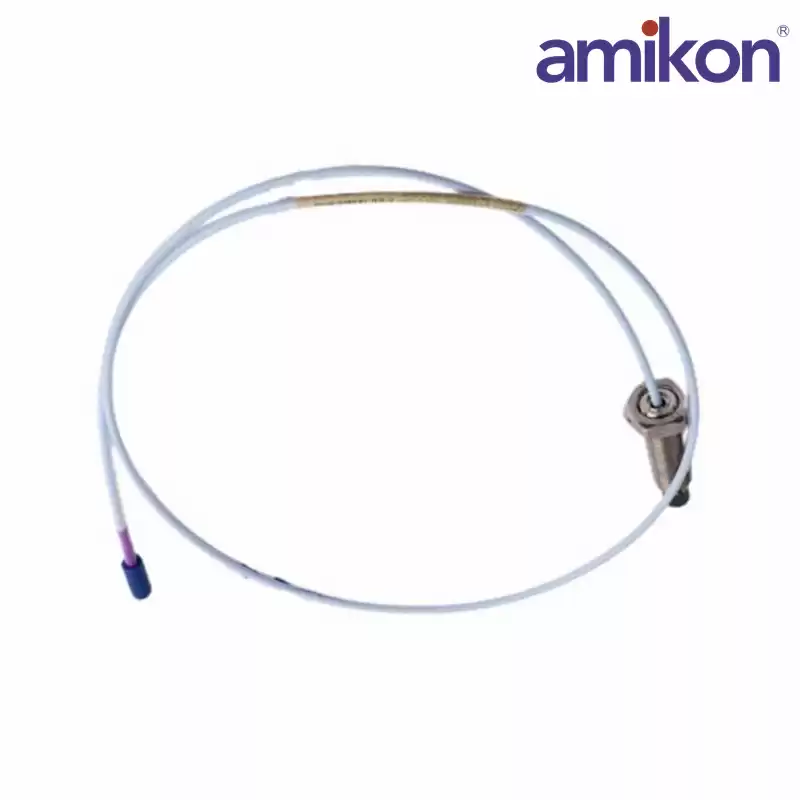

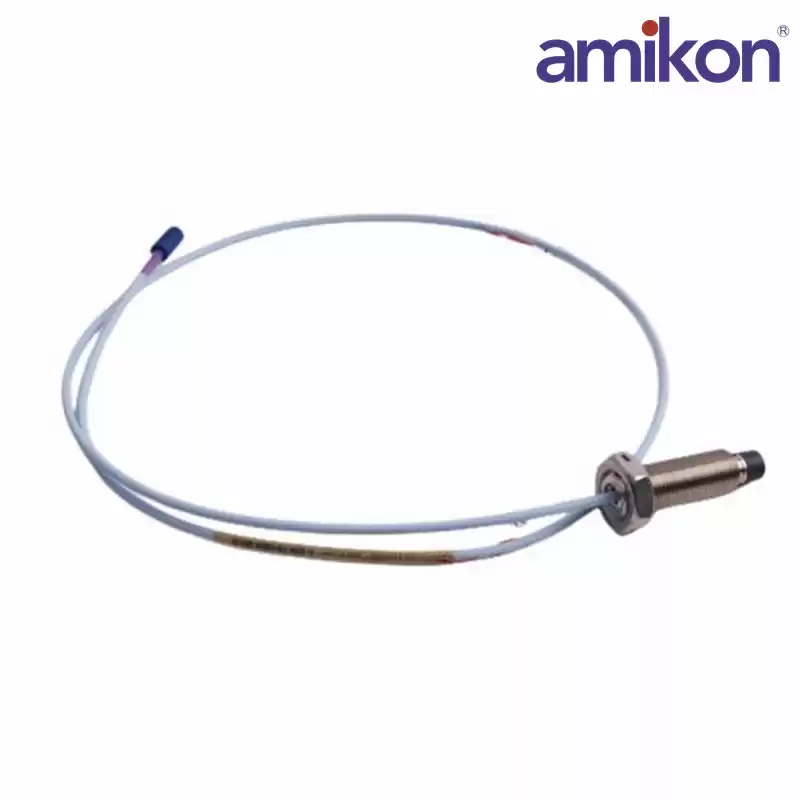

Bently Nevada 330709-000-050-10-02-00 Sensors

330709-000-050-10-02-00

Full Description:Overall Case Length Option : 050 = 50mm Total Length Option : 10 = 1.0 metre (3.3 feet)

Connector and Cable-Type Option : 02 = Miniature coaxial ClickLoc connector, standard cable

Describe

Dimensions ：20.4x22.2x3.7cm

Weight：0.18kg

Operating Temperature: 0 °C to +55 °C

Humidity:95%, noncondensing

Power Consumption:5.02 watts typical

Storage Temperature :-51 °C to +135 °C

The 330709-000-050-10-02-00 is 3300 XL 11mm Sensors. The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.The 3300 XL 11 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
