Product Description：
The 3300 XL 11 mm probe comes in varying probe case configurations, including
armored and unarmored ½-20, 5
⁄8 -18, M14 X 1.5 and M16 X 1.5 probe threads.
The reverse mount 3300 XL 11 mm probe comes standard with either 3
⁄8 -24 or
M10 X 1 threads. All components of the transducer system have gold-plated
brass ClickLoc™ connectors. ClickLoc connectors lock into place, preventing the
connection from becoming loose. The patented TipLoc™ molding method
provides a robust bond between the probe tip and the probe body. The probe
cable is securely attached to the probe tip utilizing our patented CableLoc™
design that provides 330 N (75 lb) pull strength.

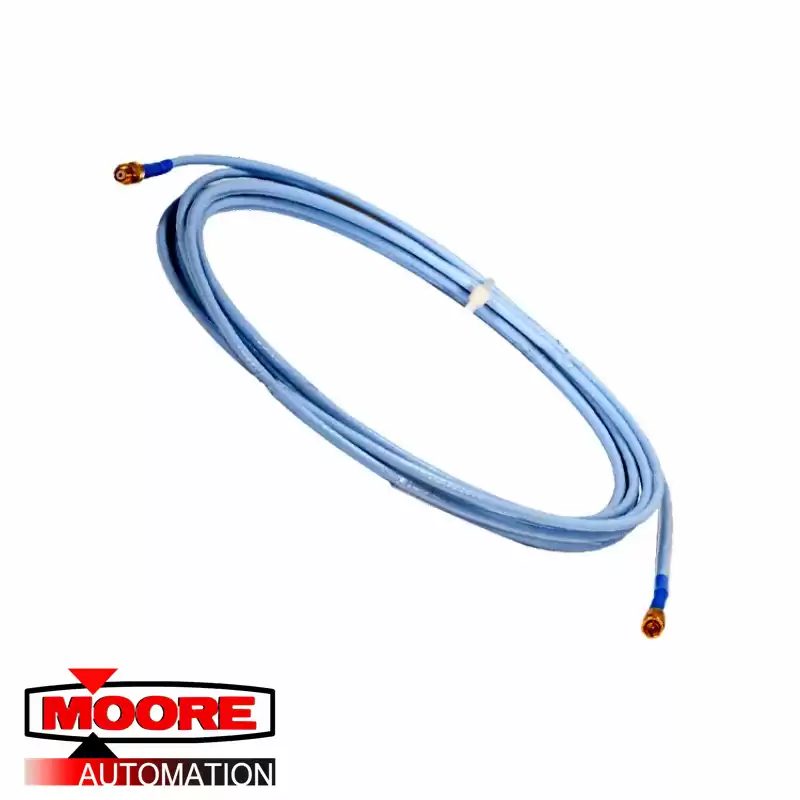

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc®
cable option. This option prevents oil and other liquids from leaking out of the
machine through the cable’s interior. The connector protector option provides
additional protection of the connectors in a humid or moist environment.
Connector protectors are recommended for all installations and provide
increased environmental protection2. Additionally, the 3300 XL 11 mm probe
comes standard with a locknut with predrilled safety wire holes.
