Product Description：
The 3300 XL 11 mm Proximity Transducer System consists of:
-3300 XL 11 mm probe

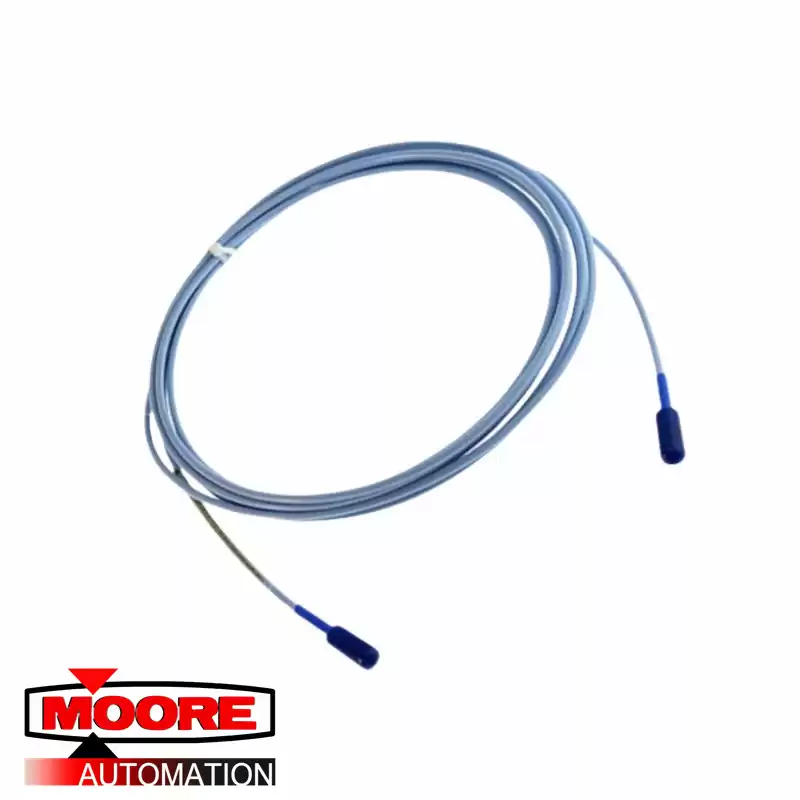

-3300 XL 11 mm extension cable
-3300 XL 11 mm Proximitor Sensor1
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines.
The large 11 mm tip enables this transducer system to have a
longer linear range compared to our standard 3300 XL 8 mm
Transducer System. It is primarily used in the following
applications where the longer linear range is necessary:
-Axial (thrust) position measurements
-Ramp differential expansion measurements on steam
turbines
-Rod position or rod drop measurements on
reciprocating compressors
-Tachometer and zero speed measurements
-Phase reference (Keyphasor) signals
