330850-90-05
|
|
Product Origin: USA
|
Manufacturer：Bently Nevada
|
|
Dimension: 8cmx6.1cmx6.3cm
|
Weight: 1.18KG
|
|

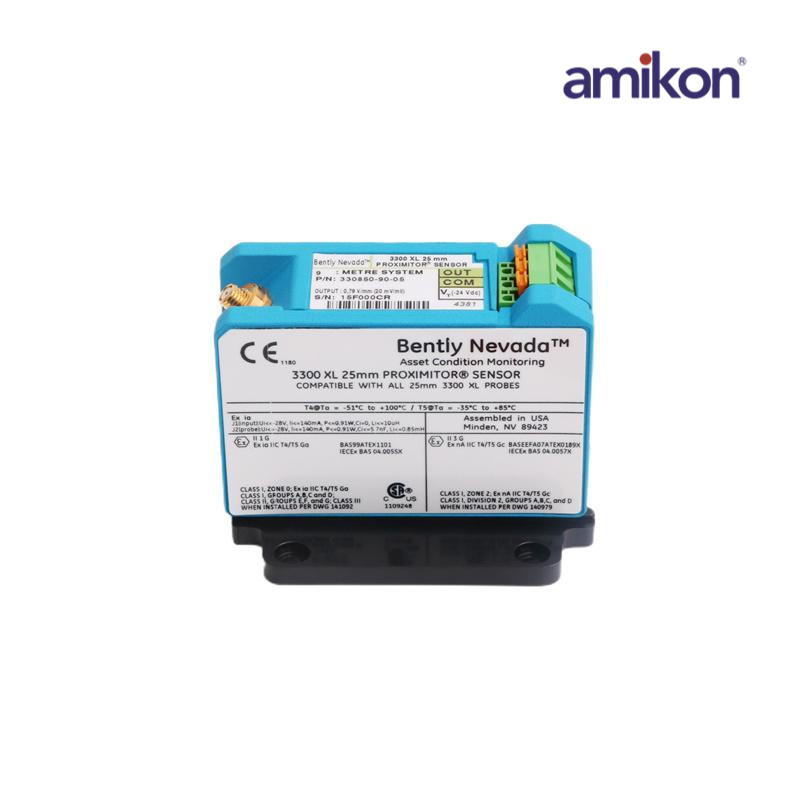

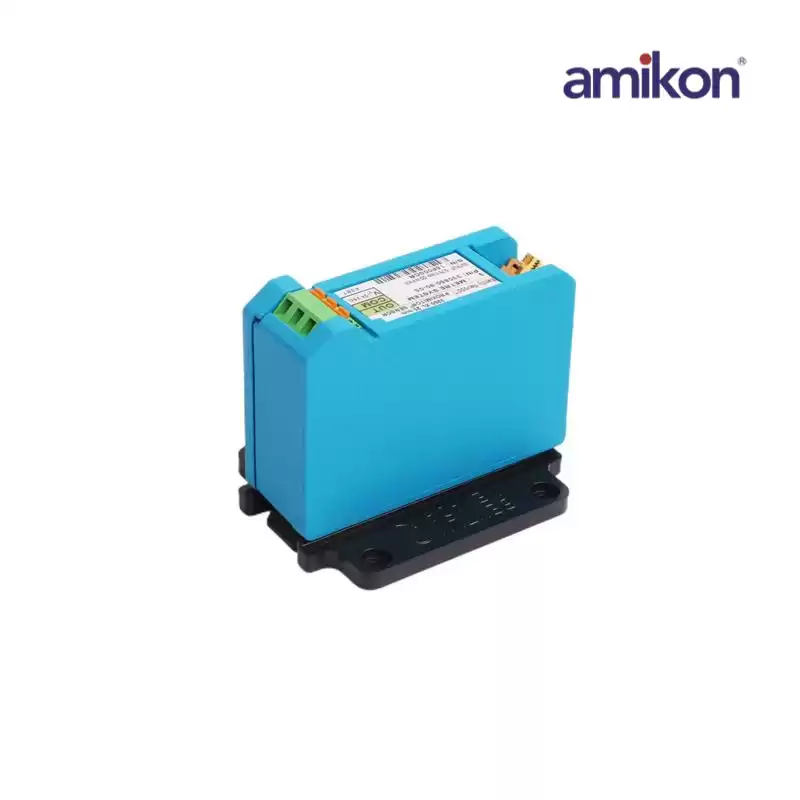

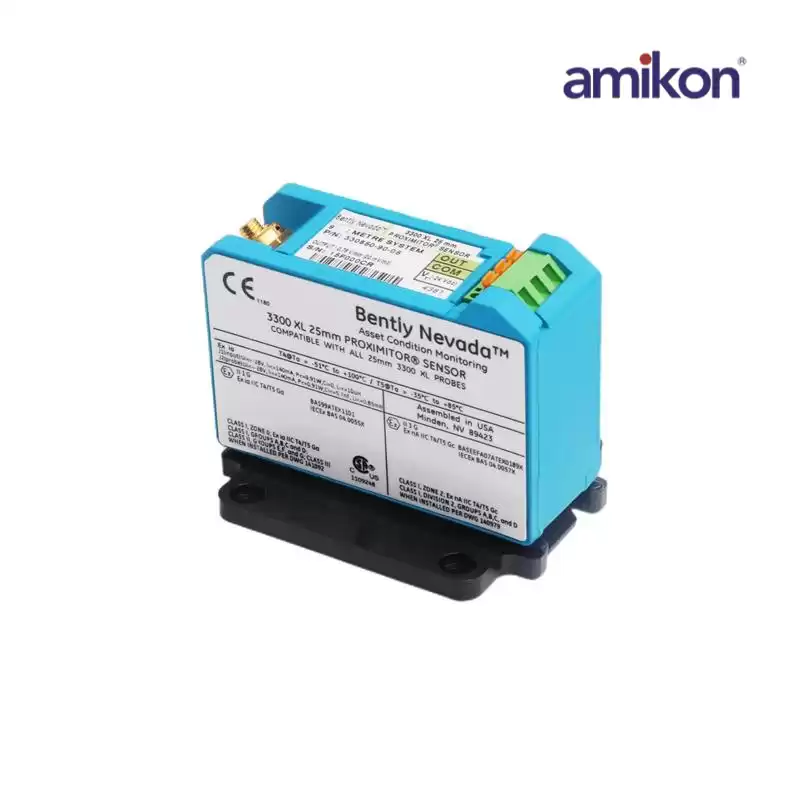

The 330850-90-05 is 3300 XL Proximity Transducer System.The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils).
Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on mid-size to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).The Differential Expansion measurement is made by two proximity transducers observing a collar or ramp some distance from the thrust bearing.
|
|
