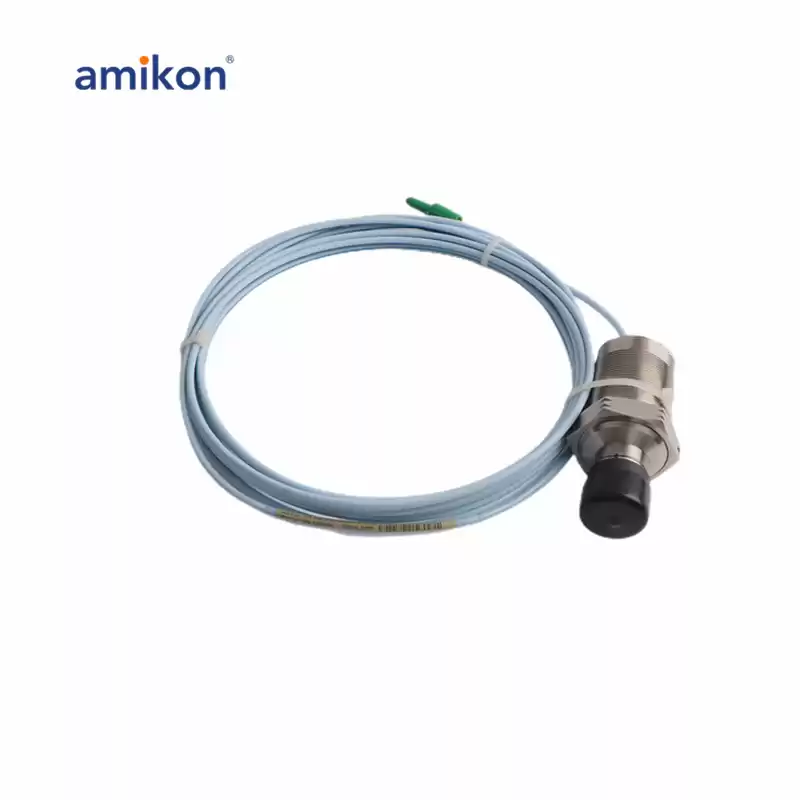

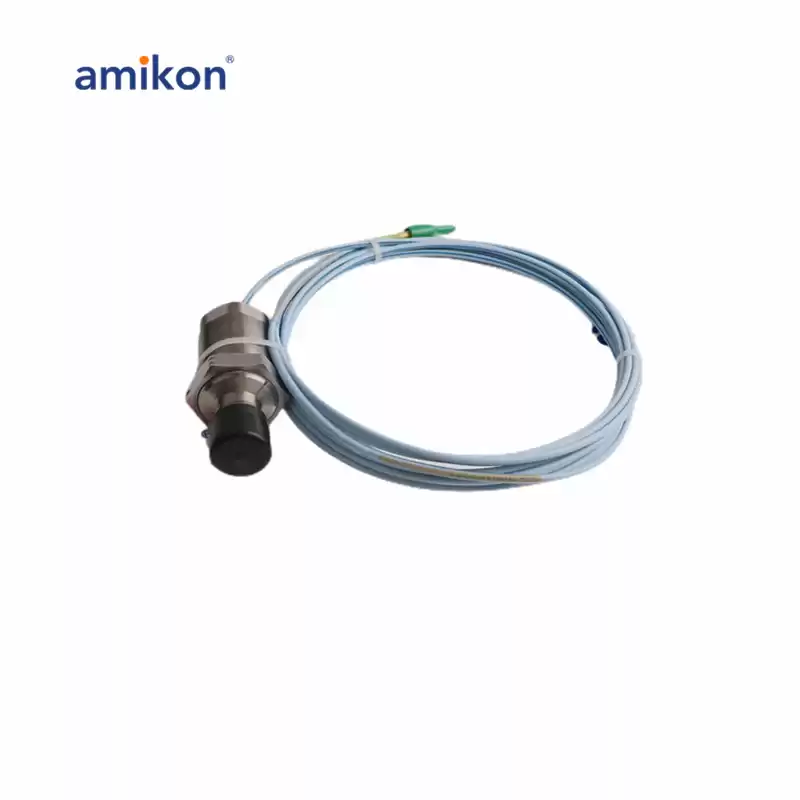

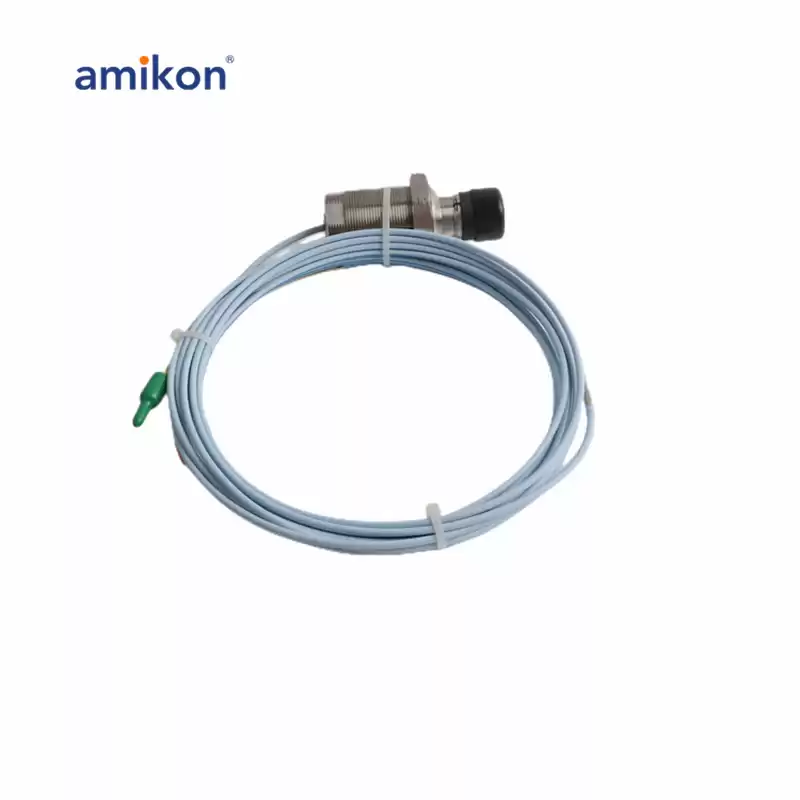

Bently Nevada 330851-06-000-070-50-00-05 EXTENSION CABLE

Brand new and original sealed//Same Day Shipment

  • Warranty PeriodOne Year Warranty
  • Dimensions25x22x5cm
  • Weight0.82kg
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
The 3300 NSv probe and extension cable are both mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM proximity probe and extension cable. Compared to the 3300 RAM probe, the NSv probe offers enhanced chemical resistance, making it suitable for a wider range of process compressor applications. Additionally, the side-view characteristics of the 3300 NSv probe are superior to those of the 3000-series 190 probe when the probe is gapped at the same distance from the target.

For the minimum configurations:
Standard X-Y probe configuration: 30 mm (1.2 in).
X-Y proximity probes offset axially by 23 mm (0.9 in): 20 mm (0.8 in).

When measuring shaft diameters smaller than 30 mm (1.2 in), closer spacing of radial vibration or axial position transducers is usually required. This proximity can potentially cause issues with the measurement system’s accuracy.


Bently Nevada 330851-06-000-070-50-00-05 Extension Cable - FAQ
1.What is the purpose of the Bently Nevada 330851-06-000-070-50-00-05 extension cable?
The extension cable is designed to connect the 3300 XL proximity probes to the monitoring system, extending the reach of the probe to measure radial vibration, position, and displacement in rotating machinery.
2.What is the cable length for the Bently Nevada 330851-06-000-070-50-00-05 extension cable?
The extension cable is available in lengths ranging from 1 meter (3.3 feet) to 9 meters (29.5 feet), allowing flexibility for different installation requirements.
3.What are the specifications of the cable?
Type: 75 Ohm triaxial cable.
Material: The cable is made with high-quality insulation material such as perfluoroalkoxyethylene (PFA), offering good resistance to chemicals and high temperatures.
Protection: The extension cable is optionally available with flexible AISI 302 stainless steel armor to protect against mechanical damage.
