Product Description：

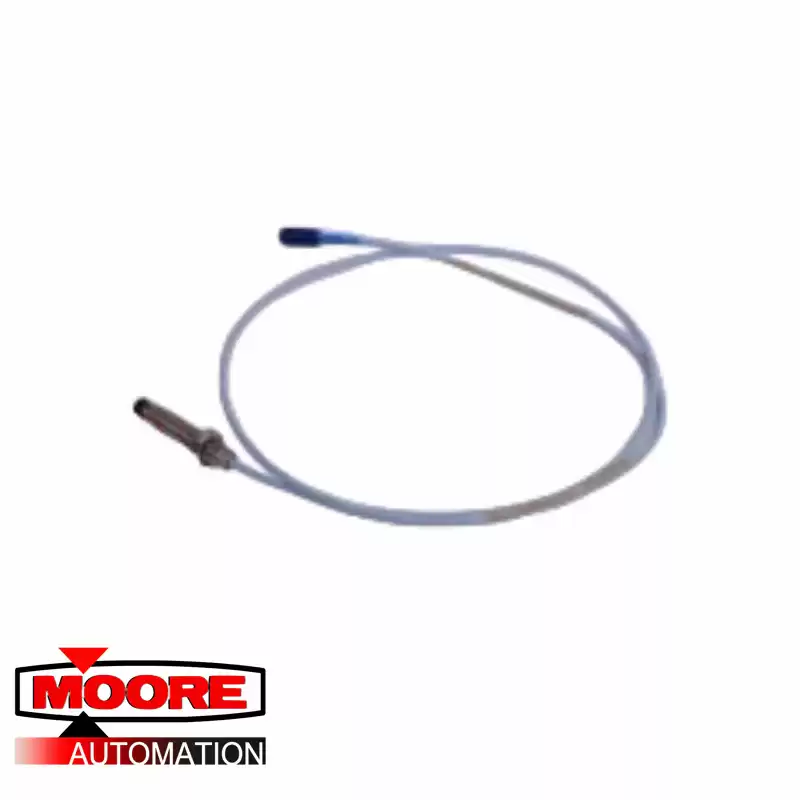

The 3300 XL 11 mm probe comes in varying
probe case configurations, including armored
and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X
1.5 probe threads. The reverse mount 3300 XL 11
mm probe comes standard with either 3⁄8 -24
or M10 X 1 threads. All components of the
transducer system have gold-plated brass
ClickLoc connectors. ClickLoc connectors lock
into place, preventing the connection from
becoming loose. The patented TipLoc molding
method provides a robust bond between the
probe tip and the probe body. The probe cable
is securely attached to the probe tip utilizing
our patented CableLoc design that provides
330 N (75 lb) pull strength.
3300 XL Probes and Extension Cables can also
be ordered with a FluidLoc cable option. This
option prevents oil and other liquids from
leaking out of the machine through the cable’s
interior. The connector protector option
provides additional protection of the
connectors in a humid or moist environment.
Connector protectors are recommended for all
installations and provide increased
environmental protection2. Additionally, the
3300 XL 11 mm probe comes standard with a
locknut with pre-drilled safety wire holes.
