Product Description：

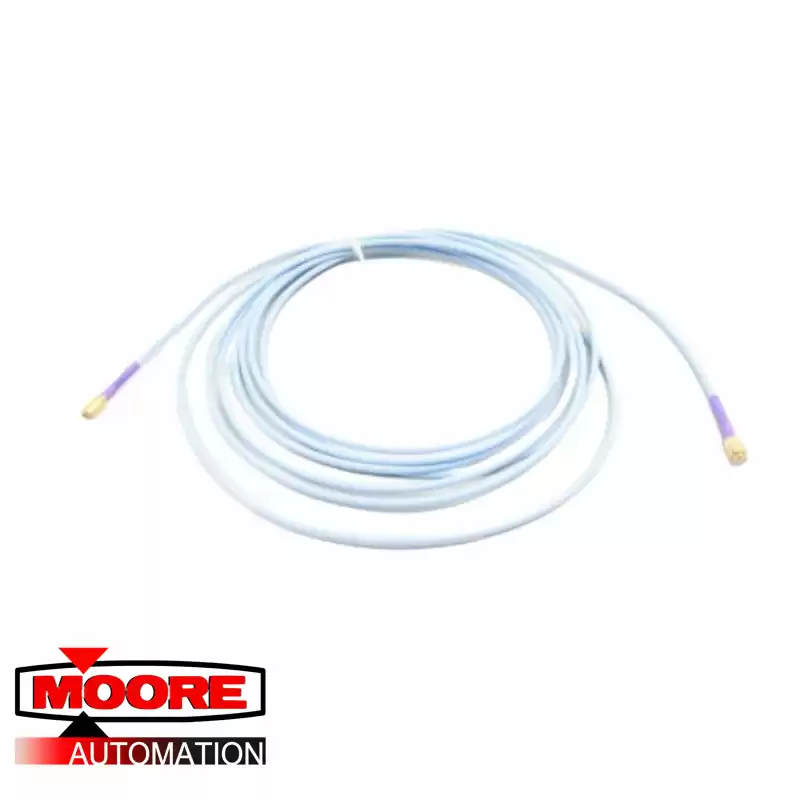

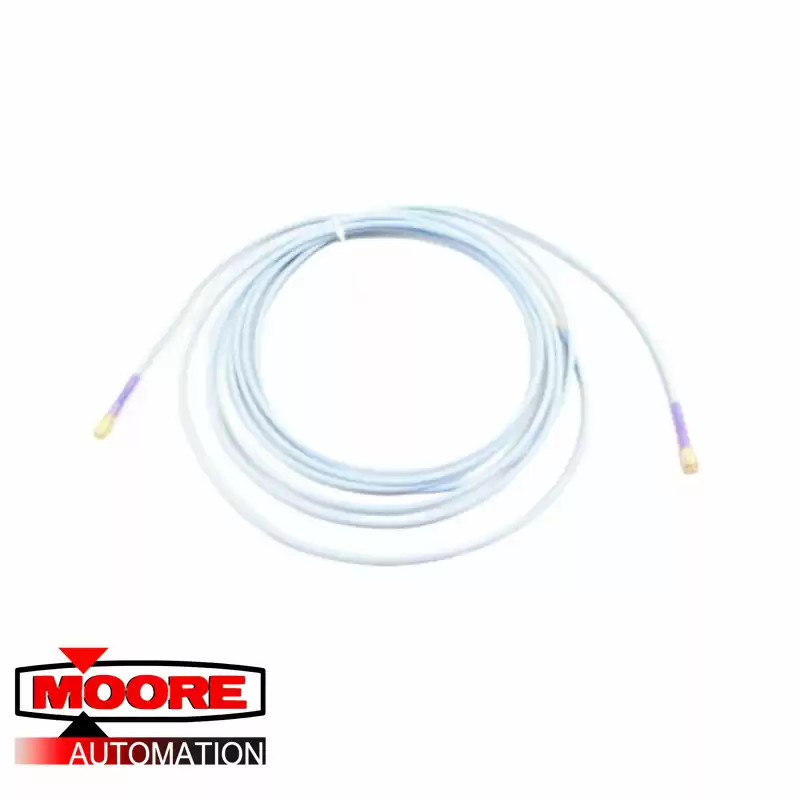

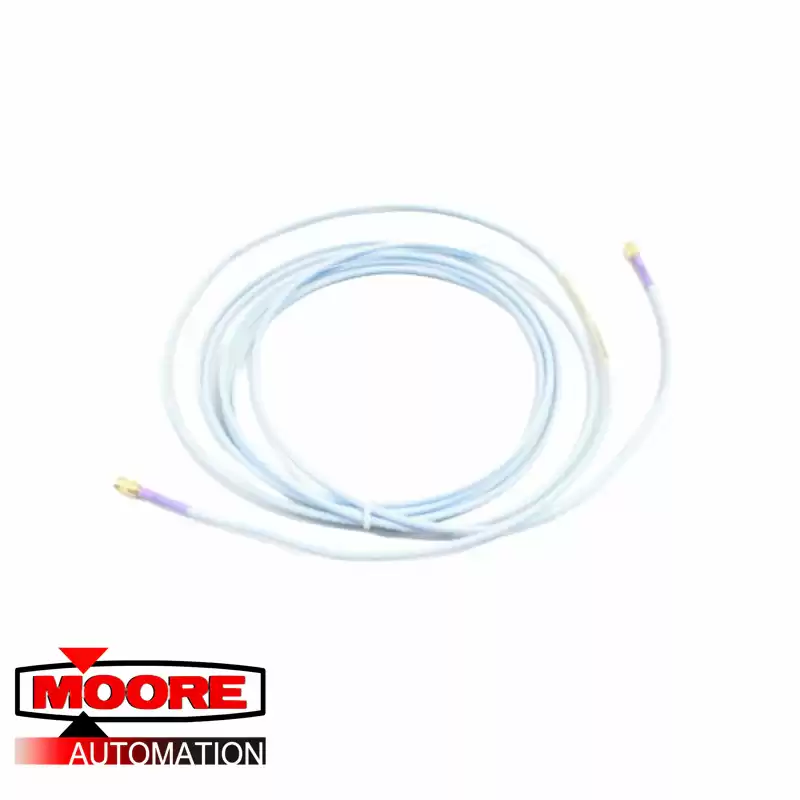

The 3300 NSv probe and extension cable are
mechanically and electrically compatible and
interchangeable with Bently Nevada’s previous
3300 RAM proximity probe and extension cable.
The NSv probe has increased chemical resistance
compared to the 3300 RAM probe, which allows its
use in many process compressor applications. The
side-view characteristics of the 3300 NSv probe
are also superior to those of the 3000-series 190
probe when gapping the 3300 NSv probe at the
same distance from the probe target.
The 3300 NSv probe comes in varying probe case
configurations, including armored and unarmored
¼ -28, 3⁄8 -24, M8 X 1 and M10 X 1 probe threads.
The reverse mount 3300 NSv probe comes
standard with either 3⁄8 -24 or M10 X 1 threads. All
components of the transducer system have goldplated brass ClickLoc* connectors. ClickLoc
connectors lock into place and prevent the
connection from loosening. The patented TipLoc*
molding method provides a robust bond between
the probe tip and the probe body. Bently Nevada’s
patented CableLoc* design provides 220 N (50 lb)
of pull strength and securely attaches the probe
cable to the probe tip. Connector protectors are
recommended for use on the probe-to-extension
cable connection, as well as on the cable-toProximitor Sensor connection. Connector
protectors prevent most liquids from entering into
the ClickLoc connectors and adversely affecting
the electrical signal2
.
